COOPER LIGHTING - METALUX®

RECESSED AIR

GCAFA SERIES

1 ' x 4 ' , 2 ' x 2 ' , 2 ' x 4 '

D E S C R I P T I O N

The GCAFA Series features a nominal 4-1/2" deep para-contoured fixture housing, high reflectivity and optimum lamp to lens spacing. The finish provides high reflectance. The Series produces total uniformity of light in the luminous area and is compatible with all of today’s popular ceiling systems. The GCAFA Series is an excellent choice for commercial office spaces, schools, hospitals or retail merchandising areas.

O R D E R I N G I N F O R M AT I O N

D I M E N S I O N S





B



A



NOMINAL SIZE

A

B

1' x 4'

11-3/4" (298mm)

5-5/8" (143mm)

2' x 2'

23-3/4" (603mm)

4-5/8" (117mm)

2' x 4'

23-3/4" (603mm)

4-5/8" (117mm)

20" x 48"

19-3/4" (502mm)

4-5/8" (117mm)

o r 2 0 " x 4 8 " Tr o f f e r 1 , 2 , 3 o r 4 L a m p

S A M P L E N U M B E R : 2 G C A F A - 2 3 2 A - 1 2 0 V - E B 8 1 - U

S P E C I F I C AT I O N R E C E S S E D A I R S U P P LY T R O F F E R

Equipped with energy saving ballasts/complies with federal energy efficiency standards

Floating extruded aluminum door/black reveal

Self locking, spring loaded Cam latch/T hinge

Die embossed para- contoured housing (6)

Deep “V” raceway/ballast cover (7)

End plates secured with interlocking tabs and screws

Four auxiliary fixture end suspension points provided

End plate grid-lock feature (9) (12)

Efficient air handling options

For information on flanged fixture, including ceiling opening size, see Technical Section.

UL/CUL Listed. Suitable for damp locations.

2' Width

Trim Type

G=Grid/Lay-in

Standard

G=Concealed T

G=Slot Grid (1)

F=Flange Trim

MZ=Modular Trim

Series

C=Specification

Deep Troffer

A=For Air Handling Floating

Door, Black Reveal

B=For Non-Air Handling

Floating Door, Black Reveal

V=Directional Air Vane For Use

With Air Handling Fixture Only

Blank=No Vane

Doorframes

FA=Flat White Extruded

Aluminum Door

RA=3/8" Regressed White

Extruded Aluminum Door

FAN=Flat Natural Extruded

Aluminum Door

RAN=3/8" Regressed Natural

Extruded Aluminum Door

FAB=Flat Black Extruded

Aluminum Door

RAB=3/8" Regressed Black

Extruded Aluminum Door

2048=20" Width

x 48" Length

Number of Lamps(2) 1, 2, 3 or 4 lamps

(Not Included)

Wattage (Length)

U6=40W T12 (24") U6T8=32W T8 (24") U15/8=31W T8 (24") BX40=40W Biax (24") 17=17W T8 (24")

20=20W T12 (24")

40=40W T12 (48")

32=32W T8 (48")

Shielding

A=#12 PatternAcrylic

(See Lens and Louver Tables for additional shielding options)

Starting Type

LTS=Low Trigger Start (20 Watt) (120V only)

HTS=High Trigger Start (20 Watt)

Voltage (3)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal Voltage 120-277 (4)

Options

GL=Single Element Fuse

GM=Double Element Fuse WTR=White Reveal

Lamps - for lamps installed, see lamp options table Flex - for flex installed, see flex ordering table Emergency - for EM installed, see EM options table

























































Options

Packaging









(See Options

U=Unit Pack









Section)

PAL=Job Pack,























out of carton















PALC=Job Pack,















in carton

Ballast Type (3)











Blank=Standard Magnetic Ballast (Biax & 20W)

LEOC8=T8 Magnetic Energy Saving LE3=T12 Magnetic Energy Saving

ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 = T8 Electronic Instant Start. Total Harmonic Distortion < 20%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start. High Ballast Factor >1.13. Total Harmonic Distortion < 20%

TEB8 =T8 Electronic Instant Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB5 = T5 Biax Electronic Instant Start. Total Harmonic Distortion < 20%

No. of Ballast 1, 2 or 3

TEB5 =T5 Biax Electronic Instant Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

DLS=Digital Lighting System Dimming

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

404



NOTES: (1)An EQ Grid Clip is recommended for all 9/16" ceiling systems. (2)Standard off-center ballast compartment on 3-lamp fixtures. (3)Products also available in non-



US voltages and frequencies for international markets. (4) Not available when specifying emergencies, voltage must be specific.

COOPER LIGHTING

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting

Representative for availability and ordering information.

Page 1
Image 1

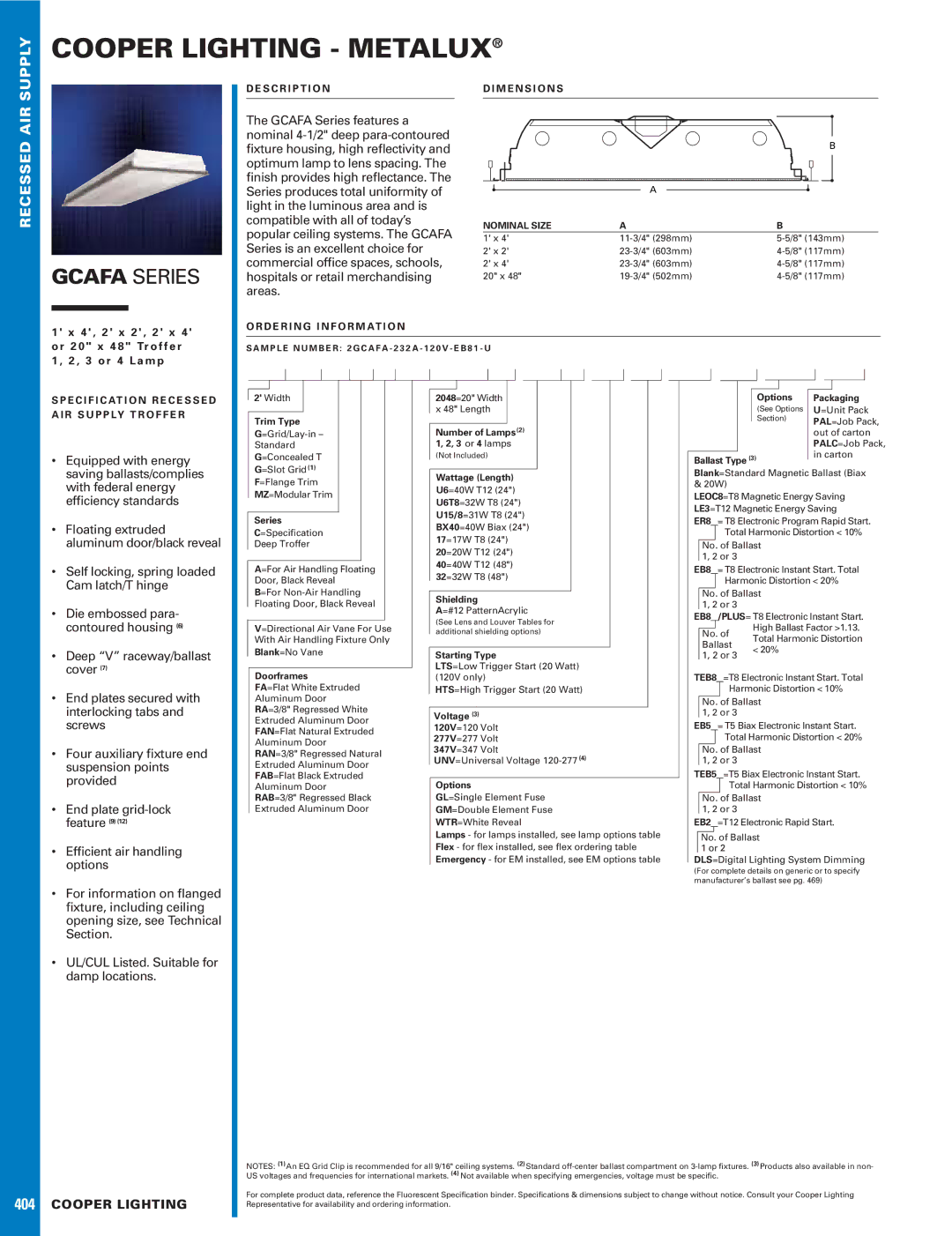

Cooper Lighting GCAFA Series dimensions Trim Type, Doorframes, Number of Lamps2 1, 2, 3 or 4 lamps, Wattage Length, Carton

GCAFA Series specifications
