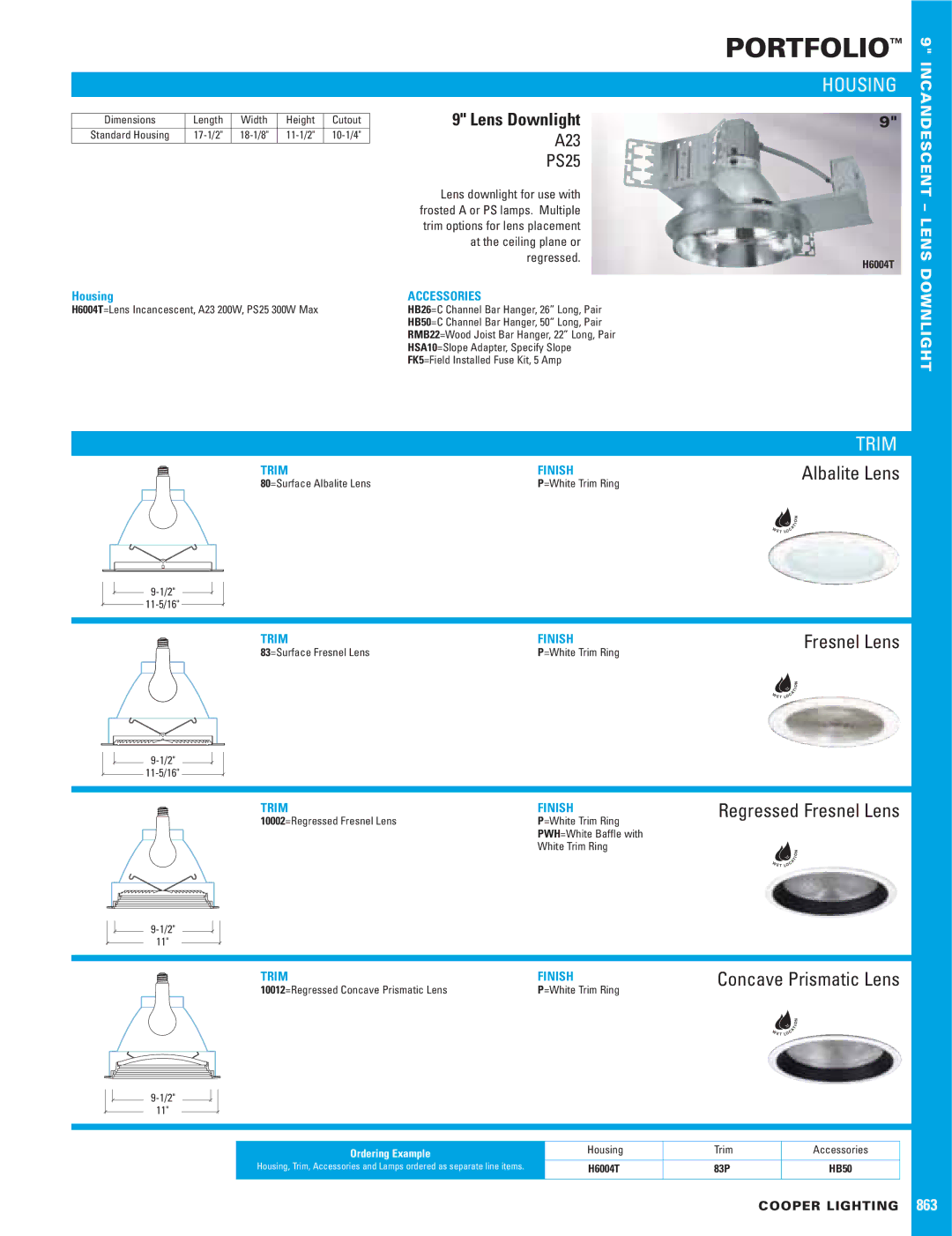

Dimensions | Length | Width | Height | Cutout | 9" Lens Downlight |
Standard Housing | A23 | ||||
|
|
|
|
| |
|
|
|
|
| PS25 |
|
|
|
|
| Lens downlight for use with |
|
|
|
|
| frosted A or PS lamps. Multiple |
|
|
|
|
| trim options for lens placement |
|
|
|
|
| at the ceiling plane or |
|
|
|
|
| regressed. |
Housing |
|
|
|
| ACCESSORIES |
H6004T=Lens Incancescent, A23 200W, PS25 300W Max |
| HB26=C Channel Bar Hanger, 26” Long, Pair | |||
|
|
|
|
| HB50=C Channel Bar Hanger, 50” Long, Pair |
|
|
|
|
| RMB22=Wood Joist Bar Hanger, 22” Long, Pair |
|
|
|
|
| HSA10=Slope Adapter, Specify Slope |
|
|
|
|
| FK5=Field Installed Fuse Kit, 5 Amp |
TRIM | FINISH |
80=Surface Albalite Lens | P=White Trim Ring |
TRIM | FINISH |
83=Surface Fresnel Lens | P=White Trim Ring |
TRIM | FINISH |
10002=Regressed Fresnel Lens | P=White Trim Ring |
| PWH=White Baffle with |
| White Trim Ring |
TRIM | FINISH |
10012=Regressed Concave Prismatic Lens | P=White Trim Ring |
Ordering Example | Housing |
| |
Housing, Trim, Accessories and Lamps ordered as separate line items. | H6004T |
|
|
PORTFOLIO™
HOUSING
9"
H6004T
TRIM
Albalite Lens
N
O
I
W E T LOCA
Fresnel Lens
N
O
I
W E T LOCA
Regressed Fresnel Lens
N
O
I
W E T LOCA
Concave Prismatic Lens
N
O
I
W E T LOCA
Trim | Accessories |
83P | HB50 |
|
|
9" INCANDESCENT – LENS DOWNLIGHT
