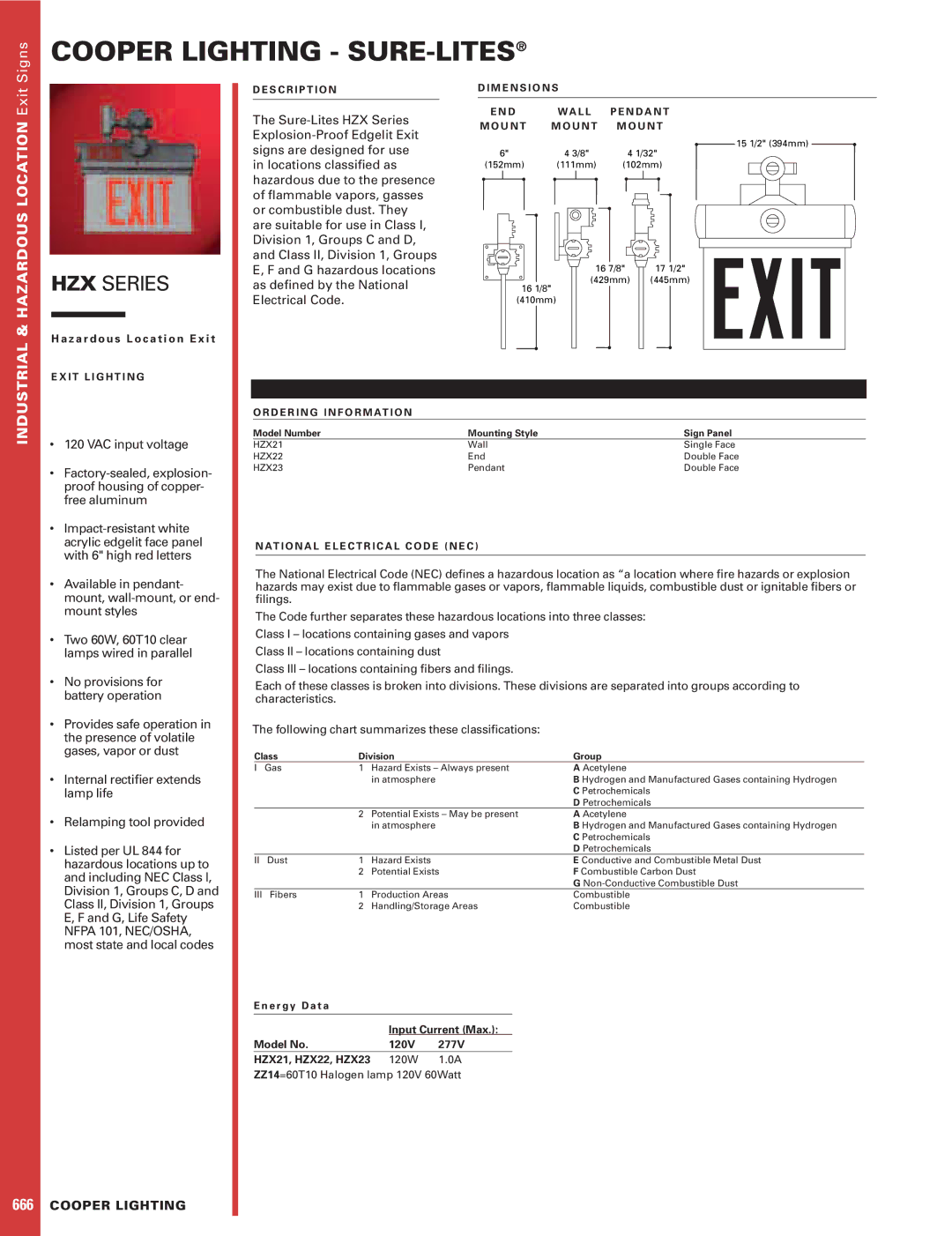

COOPER LIGHTING - SURE-LITES®

INDUSTRIAL & HAZARDOUS LOCATION Exit

HZX SERIES

H a z a r d o u s L o c a t i o n E x i t

E X I T L I G H T I N G

D E S C R I P T I O N

The Sure-Lites HZX Series Explosion-Proof Edgelit Exit signs are designed for use in locations classified as hazardous due to the presence of flammable vapors, gasses or combustible dust. They are suitable for use in Class I, Division 1, Groups C and D, and Class II, Division 1, Groups E, F and G hazardous locations as defined by the National Electrical Code.

D I M E N S I O N S



E N D



WA L L P E N D A N T

M O U N T

M O U N T M O U N T

6"



4 3/8"



4 1/32"

15 1/2" (394mm)









(152mm)



(111mm)

(102mm)

























16 7/8"

17 1/2"

(429mm)

(445mm)

161/8"

(410mm)

•120 VAC input voltage

•Factory-sealed, explosion- proof housing of copper- free aluminum

•Impact-resistant white acrylic edgelit face panel with 6" high red letters

•Available in pendant- mount, wall-mount, or end- mount styles

•Two 60W, 60T10 clear lamps wired in parallel

•No provisions for battery operation

•Provides safe operation in the presence of volatile gases, vapor or dust

•Internal rectifier extends lamp life

•Relamping tool provided

•Listed per UL 844 for hazardous locations up to and including NEC Class I, Division 1, Groups C, D and Class II, Division 1, Groups E, F and G, Life Safety NFPA 101, NEC/OSHA, most state and local codes

O R D E R I N G I N F O R M AT I O N

Model Number

Mounting Style

Sign Panel

HZX21

Wall

Single Face

HZX22

End

Double Face

HZX23

Pendant

Double Face

N AT I O N A L E L E C T R I C A L C O D E ( N E C )

The National Electrical Code (NEC) defines a hazardous location as “a location where fire hazards or explosion hazards may exist due to flammable gases or vapors, flammable liquids, combustible dust or ignitable fibers or filings.

The Code further separates these hazardous locations into three classes:

Class I – locations containing gases and vapors

Class II – locations containing dust

Class III – locations containing fibers and filings.

Each of these classes is broken into divisions. These divisions are separated into groups according to characteristics.

The following chart summarizes these classifications:

Class

Division

Group

I

Gas

1

Hazard Exists – Always present

A Acetylene





1

in atmosphere

B Hydrogen and Manufactured Gases containing Hydrogen









C Petrochemicals









D Petrochemicals





2

Potential Exists – May be present

A Acetylene





1

in atmosphere

B Hydrogen and Manufactured Gases containing Hydrogen









C Petrochemicals









D Petrochemicals

II

Dust

1

Hazard Exists

E Conductive and Combustible Metal Dust





2

Potential Exists

F Combustible Carbon Dust









G Non-Conductive Combustible Dust

III

Fibers

1

Production Areas

Combustible





2

Handling/Storage Areas

Combustible

E n e r g y D a t a



Input Current (Max.):

Model No.

120V

277V

HZX21, HZX22, HZX23

120W

1.0A

ZZ14=60T10 Halogen lamp 120V 60Watt

666

COOPER LIGHTING

Page 1 Page 1
Page 1
Image 1
Cooper Lighting HZX Series dimensions Cooper Lighting SURE-LITES
Page 1 Page 1

HZX Series specifications
