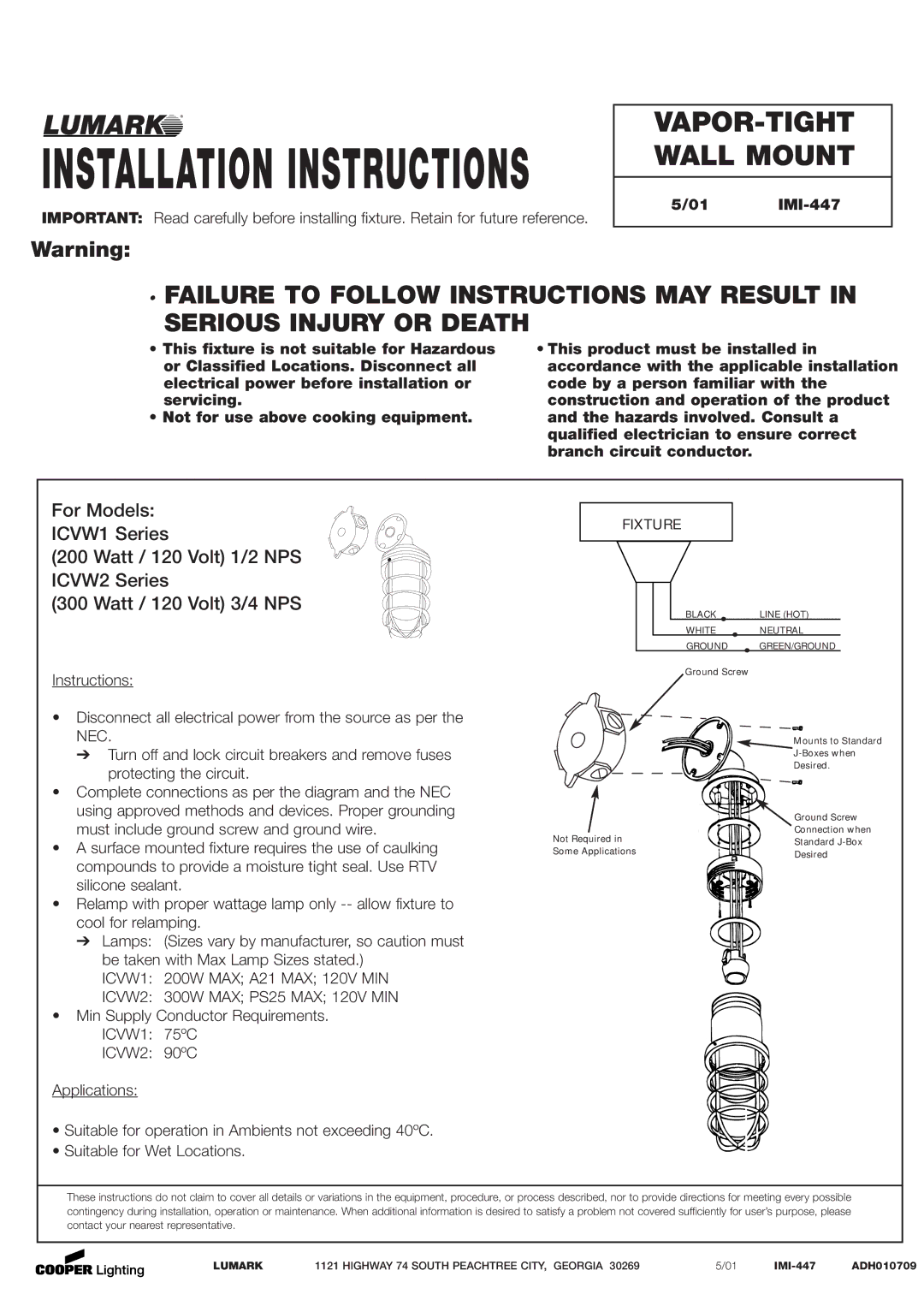

INSTALLATION INSTRUCTIONS

IMPORTANT: Read carefully before installing fixture. Retain for future reference.

VAPOR-TIGHT WALL MOUNT

5/01 IMI-447

Warning:

FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH

This fixture is not suitable for Hazardous or Classified Locations. Disconnect all electrical power before installation or servicing.

Not for use above cooking equipment.

This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved. Consult a qualified electrician to ensure correct branch circuit conductor.

For Models:

ICVW1 Series

(200 Watt / 120 Volt) 1/2 NPS

ICVW2 Series

(300 Watt / 120 Volt) 3/4 NPS

Instructions:

Disconnect all electrical power from the source as per the NEC.

Turn off and lock circuit breakers and remove fuses protecting the circuit.

Complete connections as per the diagram and the NEC using approved methods and devices. Proper grounding must include ground screw and ground wire.

A surface mounted fixture requires the use of caulking compounds to provide a moisture tight seal. Use RTV silicone sealant.

Relamp with proper wattage lamp only -- allow fixture to cool for relamping.

Lamps: (Sizes vary by manufacturer, so caution must be taken with Max Lamp Sizes stated.)

ICVW1: 200W MAX; A21 MAX; 120V MIN

ICVW2: 300W MAX; PS25 MAX; 120V MIN

Min Supply Conductor Requirements.

ICVW1: 75ºC

ICVW2: 90ºC

Applications:

Suitable for operation in Ambients not exceeding 40ºC.

Suitable for Wet Locations.

FIXTURE

BLACK

LINE (HOT)

WHITE

NEUTRAL

GROUND

GREEN/GROUND





Ground Screw



Mounts to Standard

J-Boxes when

Desired.





Ground Screw





Connection when

Not Required in



Standard J-Box

Some Applications





Desired











These instructions do not claim to cover all details or variations in the equipment, procedure, or process described, nor to provide directions for meeting every possible contingency during installation, operation or maintenance. When additional information is desired to satisfy a problem not covered sufficiently for user’s purpose, please contact your nearest representative.

LUMARK

1121 HIGHWAY 74 SOUTH PEACHTREE CITY, GEORGIA 30269

5/01

IMI-447

ADH010709

Page 1
