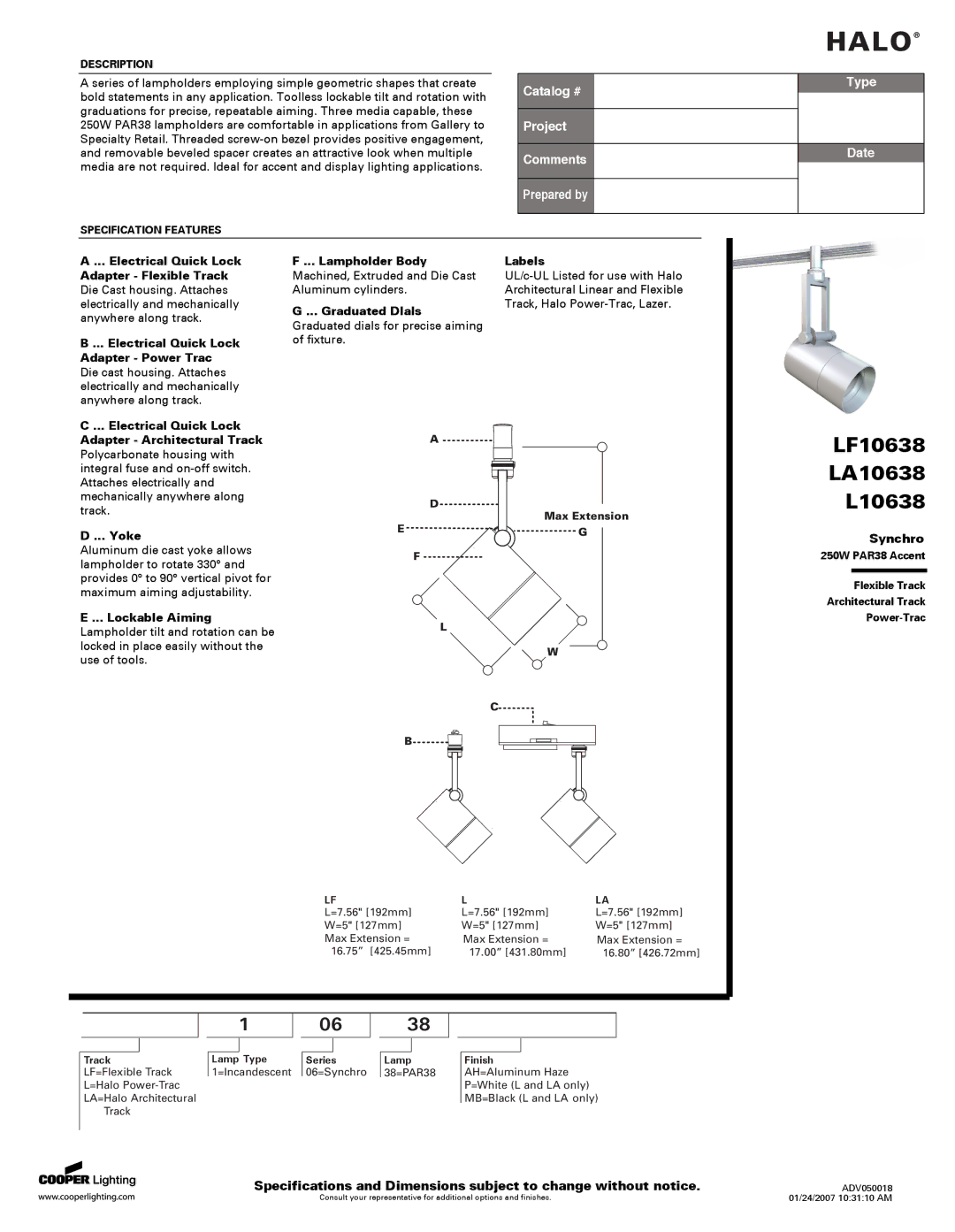

Cooper Lighting specifications Halo, LF10638 LA10638 L10638, Catalog #, Project Comments, Type

DESCRIPTION

A series of lampholders employing simple geometric shapes that create bold statements in any application. Toolless lockable tilt and rotation with graduations for precise, repeatable aiming. Three media capable, these 250W PAR38 lampholders are comfortable in applications from Gallery to Specialty Retail. Threaded screw-on bezel provides positive engagement, and removable beveled spacer creates an attractive look when multiple media are not required. Ideal for accent and display lighting applications.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

HALO®

TypeDate

A ... Electrical Quick Lock Adapter - Flexible Track

Die Cast housing. Attaches electrically and mechanically anywhere along track.

B ... Electrical Quick Lock Adapter - Power Trac

Die cast housing. Attaches electrically and mechanically anywhere along track.

C ... Electrical Quick Lock Adapter - Architectural Track

Polycarbonate housing with integral fuse and on-off switch. Attaches electrically and mechanically anywhere along track.

D ... Yoke

Aluminum die cast yoke allows lampholder to rotate 330° and provides 0° to 90° vertical pivot for maximum aiming adjustability.

E ... Lockable Aiming

Lampholder tilt and rotation can be locked in place easily without the use of tools.

F ... Lampholder Body	Labels
Machined, Extruded and Die Cast	UL/c-UL Listed for use with Halo
Aluminum cylinders.	Architectural Linear and Flexible
G ... Graduated DIals	Track, Halo Power-Trac, Lazer.
Graduated dials for precise aiming
of fixture.

A

D

Max Extension

E G

F

L

W

LF10638

LA10638

L10638

Synchro

250W PAR38 Accent

Flexible Track

Architectural Track

Power-Trac

C

B

LF		L	LA
L=7.56" [192mm]		L=7.56" [192mm]	L=7.56" [192mm]
W=5" [127mm]		W=5" [127mm]	W=5" [127mm]
Max Extension =		Max Extension =	Max Extension =
16.75”	[425.45mm]	17.00” [431.80mm]	16.80” [426.72mm]

Track

LF=Flexible Track

L=Halo Power-Trac

LA=Halo Architectural

Track

1	06	38
Lamp Type	Series	Lamp
1=Incandescent	06=Synchro	38=PAR38

Finish AH=Aluminum Haze P=White (L and LA only) MB=Black (L and LA only)

Specifications and Dimensions subject to change without notice.	ADV050018
Consult your representative for additional options and finishes.	01/24/2007 10:31:10 AM
