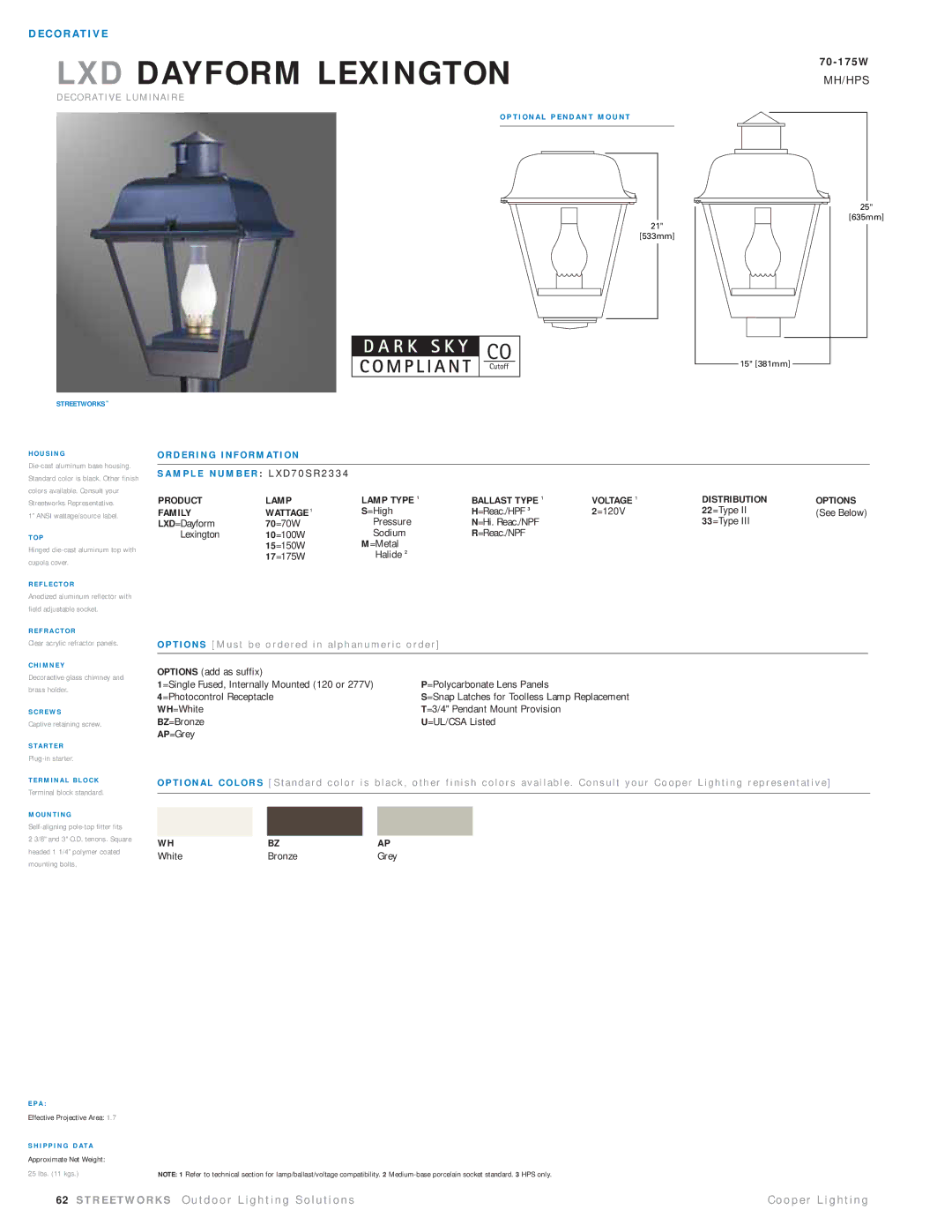

Cooper Lighting LXD70SR2334 manual Lxd Dayform Lexington, D E C O R At I V E, Mh/Hps, 70-175W

D E C O R AT I V E
LXD DAYFORM LEXINGTON	70-175W
	MH/HPS
D E C O R AT I V E L U M I N A I R E

STREETWORKS™

O P T I O N A L P E N D A N T M O U N T

21"

[533mm]

15" [381mm]

25"

[635mm]

H O U S I N G

Die-cast aluminum base housing. Standard color is black. Other finish colors available. Consult your Streetworks Representative.

1" ANSI wattage/source label.

T O P

Hinged die-cast aluminum top with cupola cover.

R E F L E C T O R

Anodized aluminum reflector with field adjustable socket.

O R D E R I N G I N F O R M AT I O NS A M P L E N U M B E R : L X D 7 0 S R 2 3 3 4

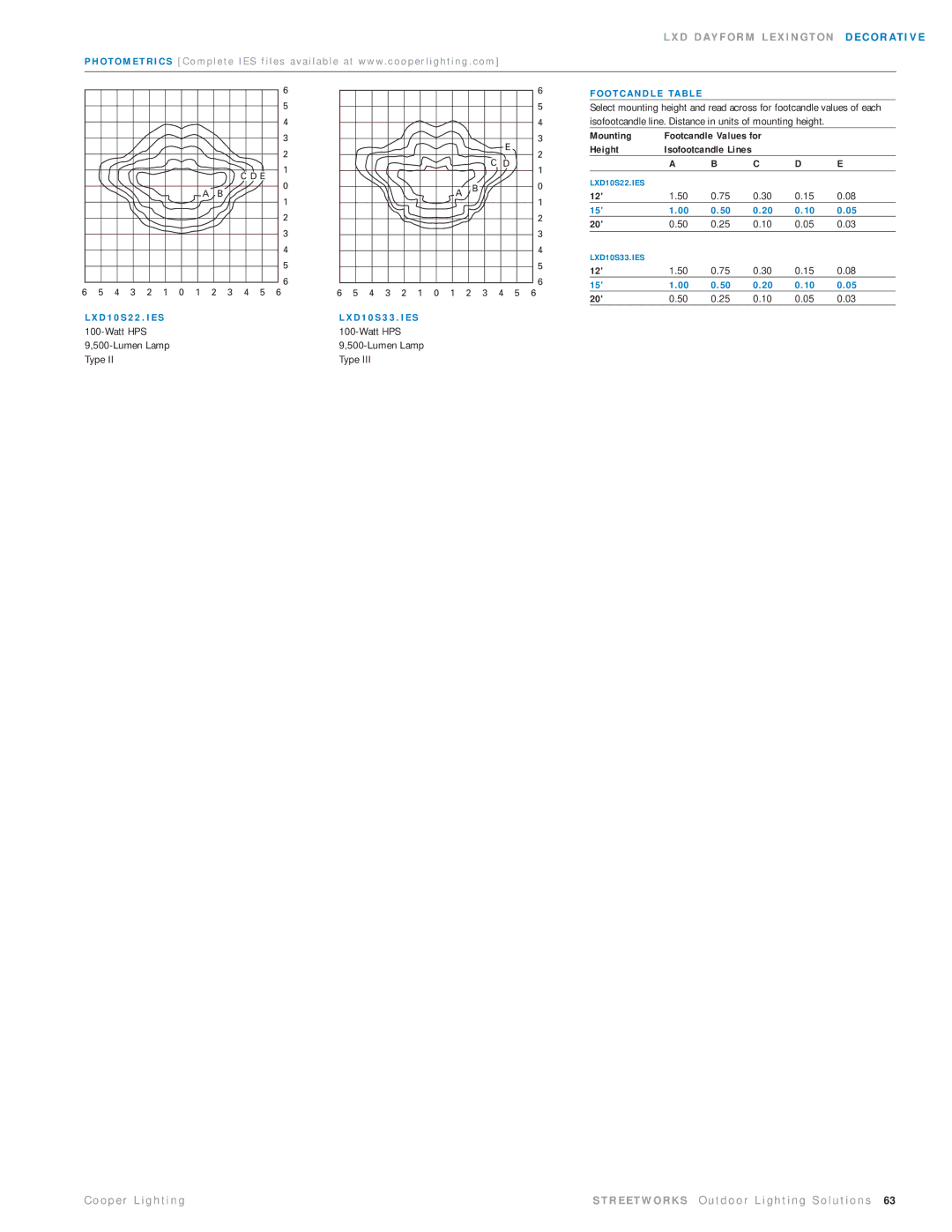

PRODUCT	LAMP	LAMP TYPE 1	BALLAST TYPE 1	VOLTAGE 1	DISTRIBUTION	OPTIONS
FAMILY	WATTAGE 1	S=High	H=Reac./HPF 3	2=120V	22=Type II	(See Below)
LXD=Dayform	70=70W	Pressure	N=Hi. Reac./NPF		33=Type III
Lexington	10=100W	Sodium	R=Reac./NPF
	15=150W	M=Metal
	17=175W	Halide 2

R E F R A C T O R

Clear acrylic refractor panels.

C H I M N E Y

Decoractive glass chimney and brass holder.

S C R E W S

Captive retaining screw.

S TA R T E R

Plug-in starter.

O P T I O N S [ M u s t b e o r d e r e d i n a l p h a n u m e r i c o r d e r ]

OPTIONS (add as suffix)
1=Single Fused, Internally Mounted (120 or 277V)	P=Polycarbonate Lens Panels
4=Photocontrol Receptacle	S=Snap Latches for Toolless Lamp Replacement
WH=White	T=3/4" Pendant Mount Provision
BZ=Bronze	U=UL/CSA Listed
AP=Grey

T E R M I N A L B L O C K

Terminal block standard.

M O U N T I N G

Self-aligning pole-top fitter fits

2 3/8" and 3" O.D. tenons. Square headed 1 1/4" polymer coated mounting bolts.

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b l a c k , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH	BZ	AP
White	Bronze	Grey

E PA :

Effective Projective Area: 1.7

S H I P P I N G D ATA
Approximate Net Weight:
25 lbs. (11 kgs.)	NOTE: 1 Refer to technical section for lamp/ballast/voltage compatibility. 2 Medium-base porcelain socket standard. 3 HPS only.

62 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s C o o p e r L i g h t i n g
