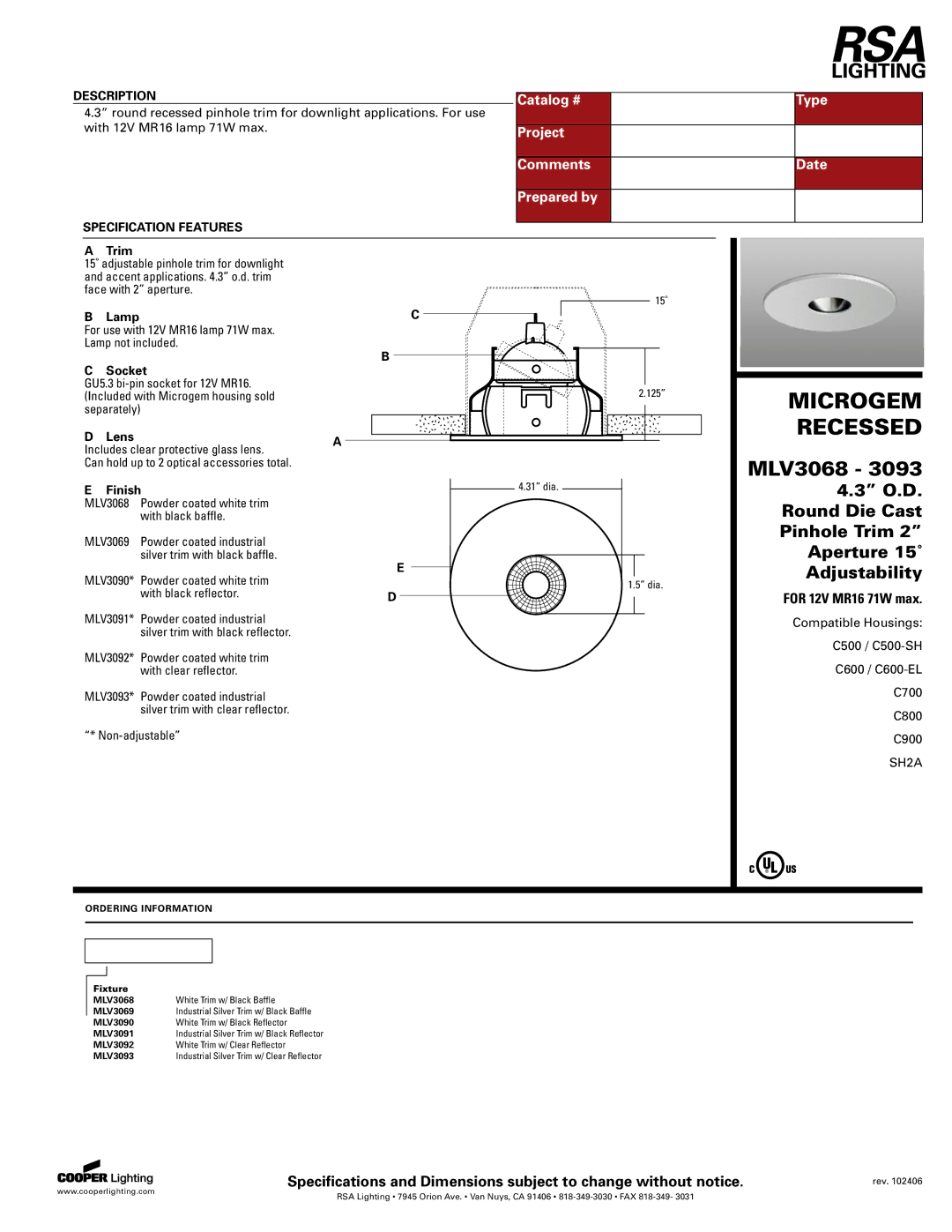

DESCRIPTION Catalog # Type
Project
Comments Date
Prepared by
www.cooperlighting.com
SPECIFICATION FEATURES
A Trim
15˚ adjustable pinhole trim for downlight
and accent applications. 4.3” o.d. trim
face with 2” aperture.
B Lamp
For use with 12V MR16 lamp 71W max.
Lamp not included.
C Socket
GU5.3 bi-pin socket for 12V MR16.
(Included with Microgem housing sold
separately)
D Lens
Includes clear protective glass lens.
Can hold up to 2 optical accessories total.
E Finish
MLV3068 Powder coated white trim
with black baffle.
MLV3069 Powder coated industrial
silver trim with black baffle.
MLV3090* Powder coated white trim
with black reflector.
MLV3091* Powder coated industrial
silver trim with black reflector.
MLV3092* Powder coated white trim
with clear reflector.
MLV3093* Powder coated industrial
silver trim with clear reflector.
“* Non-adjustable”
MICROGEM
RECESSED
MLV3068 - 3093
4.3” O.D.
Round Die Cast
Pinhole Trim 2”
Aperture 15˚
Adjustability
FOR 12V MR16 71W max.
Compatible Housings:
C500 / C500-SH
C600 / C600-EL
C700
C800
C900
SH2A
ORDERING INFORMATION
Fixture
MLV3068 White Trim w/ Black Baffle
MLV3069 Industrial Silver Trim w/ Black Baffle
MLV3090 White Trim w/ Black Reflector
MLV3091 Industrial Silver Trim w/ Black Reflector
MLV3092 White Trim w/ Clear Reflector
MLV3093 Industrial Silver Trim w/ Clear Reflector
4.3” round recessed pinhole trim for downlight applications. For use
with 12V MR16 lamp 71W max.
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
rev. 102406
1.5” dia.
4.31” dia.
2.125”
15˚
A
B
C
D
E
