Cooper Lighting ORL15SWWXX manual Orl Off Roadway Light, R O A D W Ay, 150-400W, Mh/Hps/Mercury

R O A D W AY

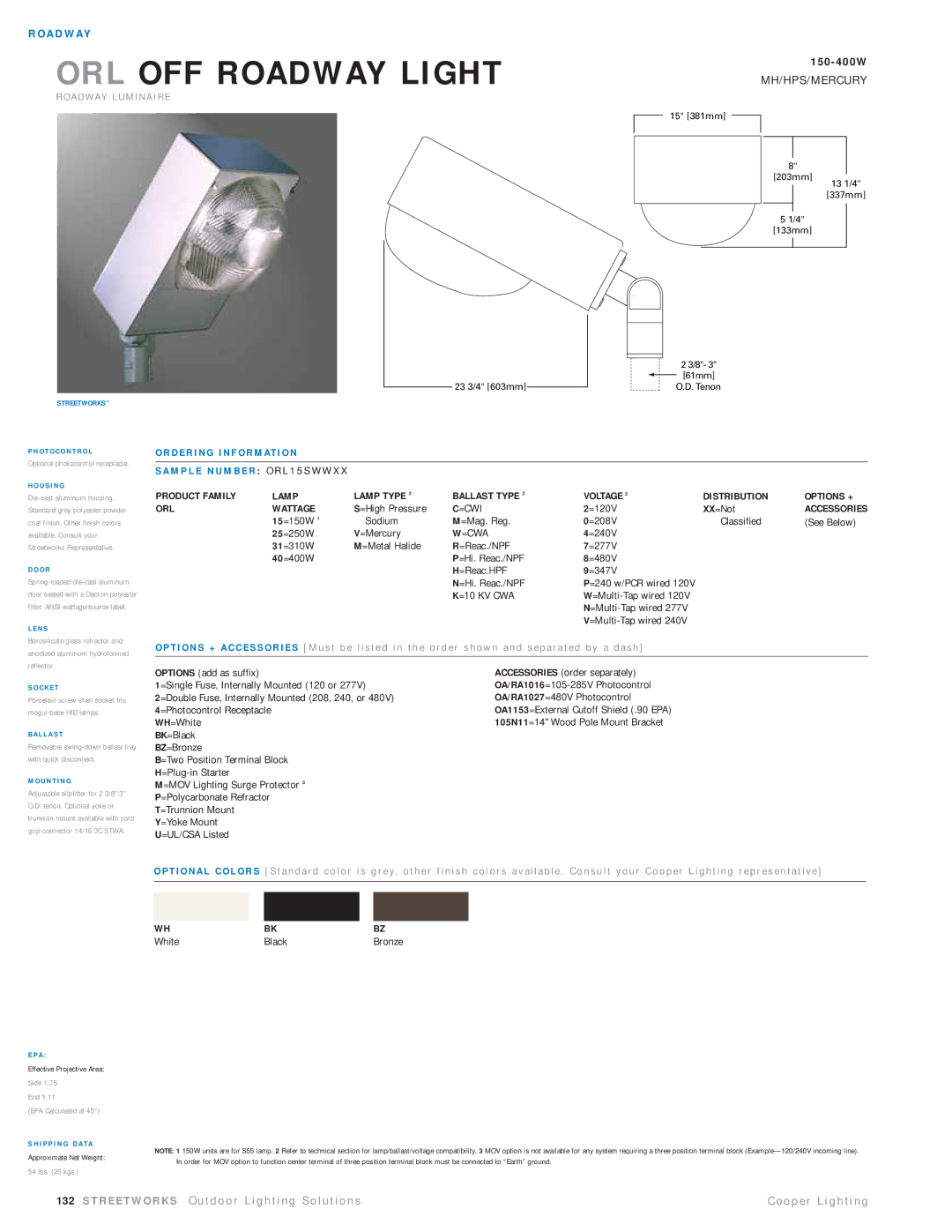

ORL OFF ROADWAY LIGHT

R O A D WAY L U M I N A I R E

23 3/4" [603mm]

150-400W

MH/HPS/MERCURY

15" [381mm]

8"

[203mm]

13 1/4"

[337mm]

5 1/4"

[133mm]

2 3/8"- 3" [61mm] O.D. Tenon

STREETWORKS™

P H O T O C O N T R O L

Optional photocontrol receptacle.

H O U S I N G

O R D E R I N G I N F O R M AT I O NS A M P L E N U M B E R : O R L 1 5 S W W X X

Die-cast aluminum housing. Standard grey polyester powder coat finish. Other finish colors available. Consult your Streetworks Representative.

D O O R

Spring-loaded die-cast aluminum door sealed with a Dacron polyester filter. ANSI wattage/source label.

L E N S

PRODUCT FAMILY	LAMP	LAMP TYPE 2	BALLAST TYPE 2	VOLTAGE 2	DISTRIBUTION
ORL	WATTAGE	S=High Pressure	C=CWI	2=120V	XX=Not
	15=150W 1	Sodium	M=Mag. Reg.	0=208V	Classified
	25=250W	V=Mercury	W=CWA	4=240V
	31=310W	M=Metal Halide	R=Reac./NPF	7=277V
	40=400W		P=Hi. Reac./NPF	8=480V
			H=Reac.HPF	9=347V
			N=Hi. Reac./NPF	P=240 w/PCR wired 120V
			K=10 KV CWA	W=Multi-Tap wired 120V
				N=Multi-Tap wired 277V
				V=Multi-Tap wired 240V

OPTIONS + ACCESSORIES

(See Below)

Borosilicate glass refractor and anodized aluminum hydroformed reflector

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

S O C K E T

Porcelain screw-shell socket fits mogul-base HID lamps.

B A L L A S T

Removable swing-down ballast tray with quick disconnect.

M O U N T I N G

Adjustable slipfitter for 2 3/8"-3" O.D. tenon. Optional yoke or trunnion mount available with cord grip connector 14/16 3C STWA.

OPTIONS (add as suffix)

1=Single Fuse, Internally Mounted (120 or 277V)

2=Double Fuse, Internally Mounted (208, 240, or 480V)

4=Photocontrol Receptacle WH=White

BK=Black

BZ=Bronze

B=Two Position Terminal Block H=Plug-in Starter

M=MOV Lighting Surge Protector 3 P=Polycarbonate Refractor T=Trunnion Mount

Y=Yoke Mount U=UL/CSA Listed

ACCESSORIES (order separately) OA/RA1016=105-285V Photocontrol OA/RA1027=480V Photocontrol OA1153=External Cutoff Shield (.90 EPA) 105N11=14" Wood Pole Mount Bracket

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s g r e y, o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH	BK	BZ
White	Black	Bronze

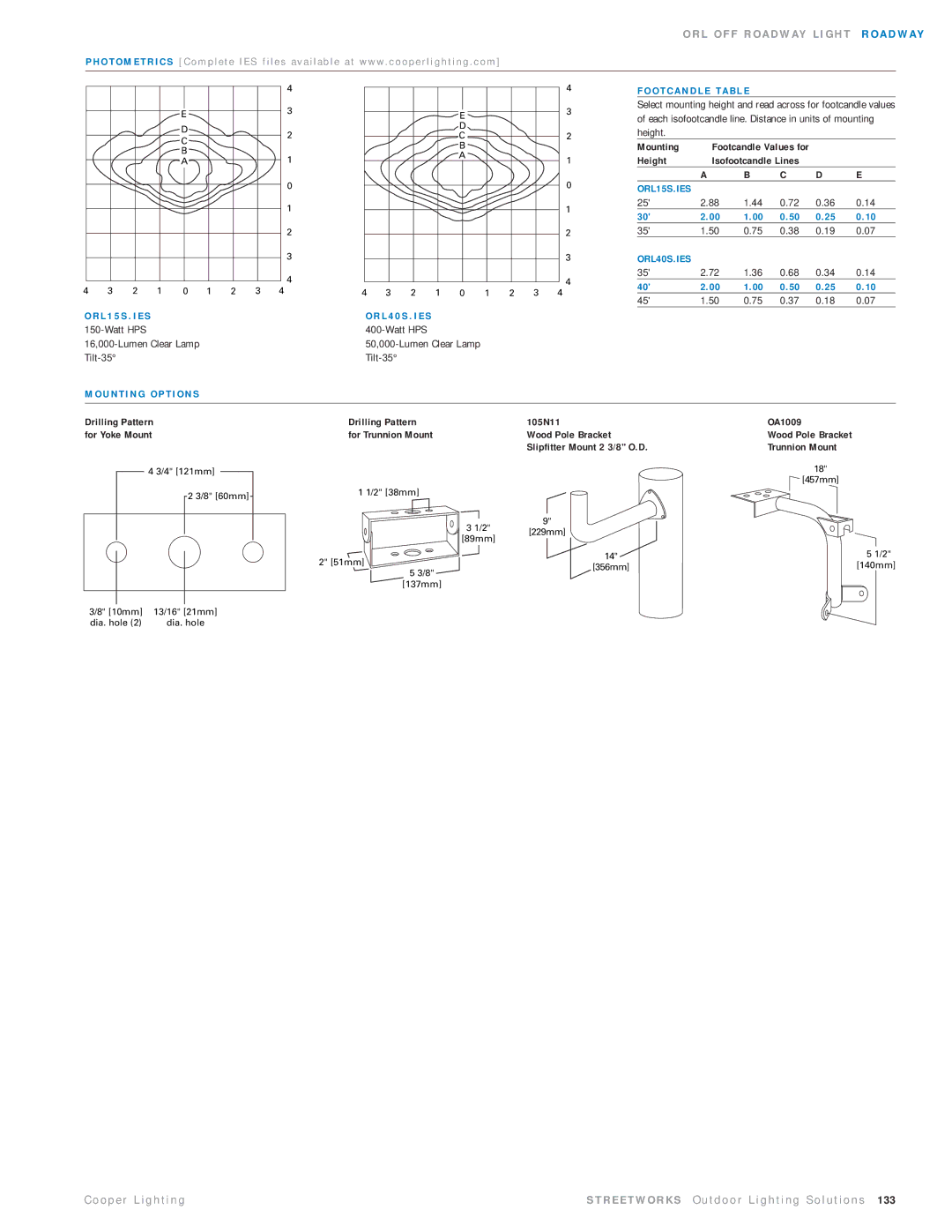

E PA :

Effective Projective Area:

Side 1.75

End 1.11

(EPA Calculated at 45°)

S H I P P I N G D ATA

Approximate Net Weight:

54 lbs. (25 kgs.)

NOTE: 1 150W units are for S55 lamp. 2 Refer to technical section for lamp/ballast/voltage compatibility. 3 MOV option is not available for any system requiring a three position terminal block (Example—120/240V incoming line). In order for MOV option to function center terminal of three position terminal block must be connected to “Earth” ground.
