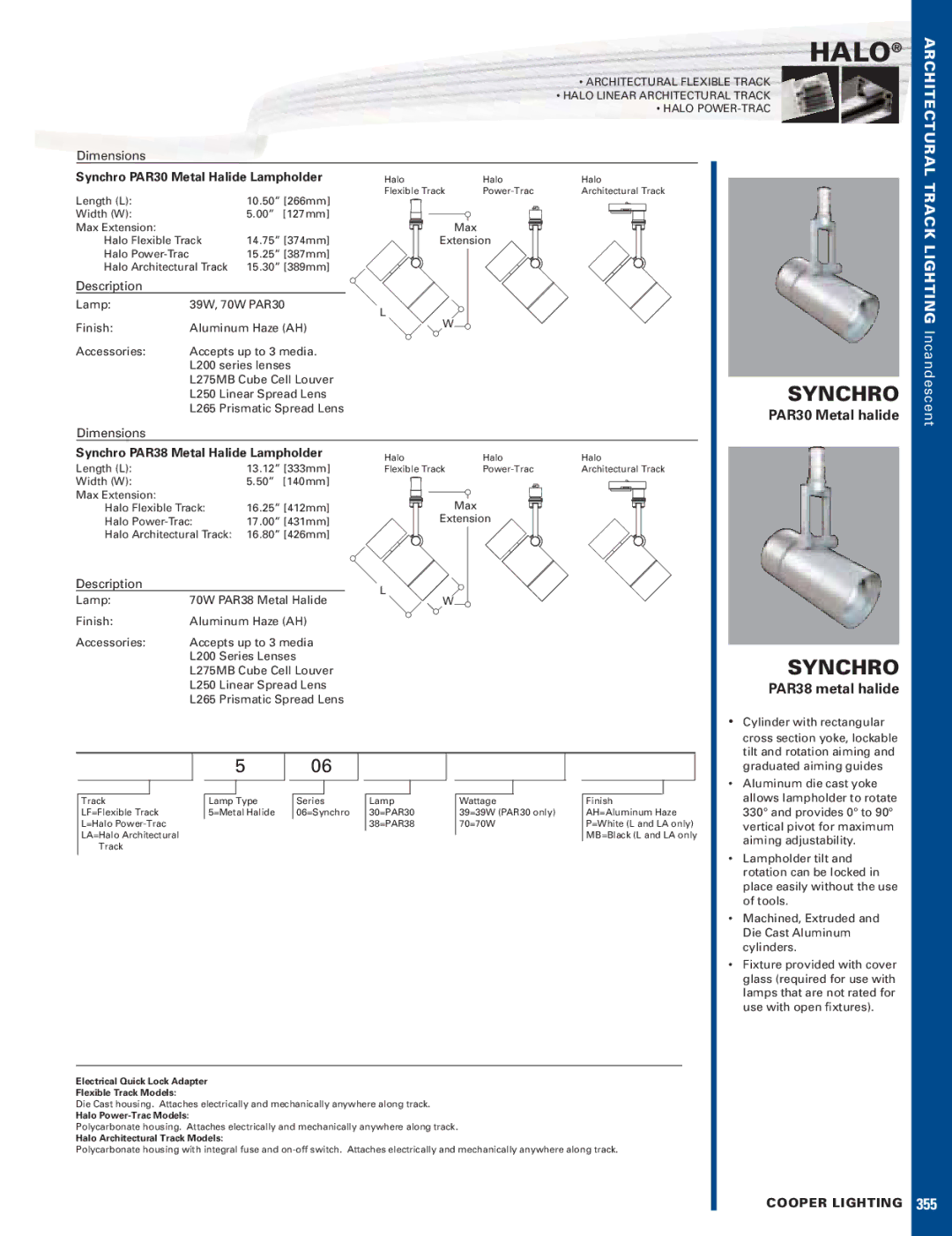

HALO®
• ARCHITECTURAL FLEXIBLE TRACK
• HALO LINEAR ARCHITECTURAL TRACK
• HALO
Dimensions
ARCHITECTURAL
Length (L): |
| 10.50” [266mm] |
Width (W): |
| 5.00” [127mm] |
Max Extension: |
|
|
Halo Flexible Track | 14.75” [374mm] | |
Halo |
| 15.25” [387mm] |
Halo Architectural Track | 15.30” [389mm] | |
Description |
|
|
Lamp: | 39W, 70W PAR30 | |
Finish: | Aluminum Haze (AH) | |
Accessories: | Accepts up to 3 media. | |
| L200 series lenses | |
| L275MB Cube Cell Louver | |
| L250 Linear Spread Lens | |
| L265 Prismatic Spread Lens | |
Halo | Halo | Halo | |||
Flexible Track | Architectural Track | ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Max
Extension
L
W
SYNCHRO
PAR30 Metal halide
TRACK LIGHTING Incandescent
Dimensions
| Synchro PAR38 Metal Halide Lampholder | Halo | Halo | Halo | ||
Length (L): |
| 13.12” [333mm] | Flexible Track | Architectural Track | |
Width (W): |
| 5.50” [140mm] |
|
|
|
Max Extension: |
|
|
| Max |
|
Halo Flexible Track: | 16.25” [412mm] |
|
| ||
Halo | 17.00” [431mm] | Extension |
| ||
Halo Architectural Track: | 16.80” [426mm] |
|
|
| |
Description |
|
| L |
|
|
Lamp: | 70W PAR38 Metal Halide |
|
| ||
W |
|
| |||
Finish: | Aluminum Haze (AH) |
|
|
| |
Accessories: | Accepts up to 3 media |
|
|
| |
| L200 Series Lenses |
|
|
| |
| L275MB Cube Cell Louver |
|
|
| |
| L250 Linear Spread Lens |
|
|
| |
| L265 Prismatic Spread Lens |
|
|
| |
|
|
|
| 5 |
|
| 06 |
|
|
|
|
|
|
|
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Track | Lamp Type | Series | Lamp | Wattage | Finish | |||||||||||||||
| LF=Flexible Track | 5=Metal Halide | 06=Synchro | 30=PAR30 | 39=39W (PAR30 only) | AH=Aluminum Haze | |||||||||||||||
| L=Halo |
|
|
|
|
|
|
|
| 38=PAR38 | 70=70W | P=White (L and LA only) | |||||||||
| LA=Halo Architectural |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MB=Black (L and LA only | |||
| Track |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Electrical Quick Lock Adapter
Flexible Track Models:
Die Cast housing. Attaches electrically and mechanically anywhere along track.
Halo
Polycarbonate housing. Attaches electrically and mechanically anywhere along track.
Halo Architectural Track Models:
Polycarbonate housing with integral fuse and
SYNCHRO
PAR38 metal halide
•Cylinder with rectangular cross section yoke, lockable tilt and rotation aiming and graduated aiming guides
•Aluminum die cast yoke allows lampholder to rotate 330° and provides 0° to 90° vertical pivot for maximum aiming adjustability.
•Lampholder tilt and rotation can be locked in place easily without the use of tools.
•Machined, Extruded and Die Cast Aluminum cylinders.
•Fixture provided with cover glass (required for use with lamps that are not rated for use with open fixtures).
COOPER LIGHTING
355
