DESCRIPTION



















































Catalog #



















Type

New construction housing for Mini Quiet Ceiling small aperture square

















































trimless fixtures (QCM5101, QCM5102, QCM5103, QCM5104).



















































Project























For new construction non-I.C. applications. Insulation must be kept 3”



















































Comments



















Date

from all sides and at least 1” above the housing.



































































































































Prepared by























SPECIFICATION FEATURES























































































































































A....Housing

































































































Housing and plaster frame: 18 gauge CRS

















































with flat black powder coated internal

















































finish. Adjustable trimless mud-ring can

































































































































































































accommodate 1/2”, 5/8”, 3/4” & 1” ceiling

































































































thickness.





Ceiling mudding compound is applied













B....System Protection:





right to the edge of the fixture.













































































































Thermal protection provided to guard

















































against overheating and misuse of

















































insulation over and around fixture.

















































































































































Vent holes in housing provide cooler













































MINI

operation.













































Integral j-box and metal halide ballast.











































QUIET CEILING

C....Electrical













































TRIMLESS

through branch wiring. Includes five 1/2













































120V input. Junction box is U.L. listed for

















































trade size knockouts.







































































































D....Lamp







QCM510MH

CMH MR16 20W or ES16 BriteSpot 39W







New Construction

(not included). Internal rotation ring with







locking adjustment. Provides 360º rotation







Housing

of trim and secures original trim position







for Square Trim

after relamping. GX10 twist-lock lamp







socket.

12.00”

Ceiling



FOR CMH MR16 20W



7.25”

E....Mounting

Cut-Out



or ES16 BriteSpot 39W

Hanger Bars and Butterfly Brackets



5.50”sq.

9.75”

included for residential and commercial









applications respectively. Perforated









flaps for secure drywall installation.









Ceiling Cut-Out: 5.50” sq.















4.63”









13.00”









8.18”





4.63”









0.5” - 1.0”







ORDERING INFORMATION









QCM510MH

__

__

Housing QCM510MH = Mini Quiet Ceiling

New Construction Housing for Square Trim w/Integral Ballast

Metal Halide Ballast

20 = CMH MR16 20W

39 = ES16 BriteSpot 39W

Voltage

120 = 120 volts primary

277 = 277 volts primary*

*Consult factory for 277V ballast availability.

Specifications and Dimensions subject to change without notice.

rev. 091806

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1 Page 1
Page 1
Image 1

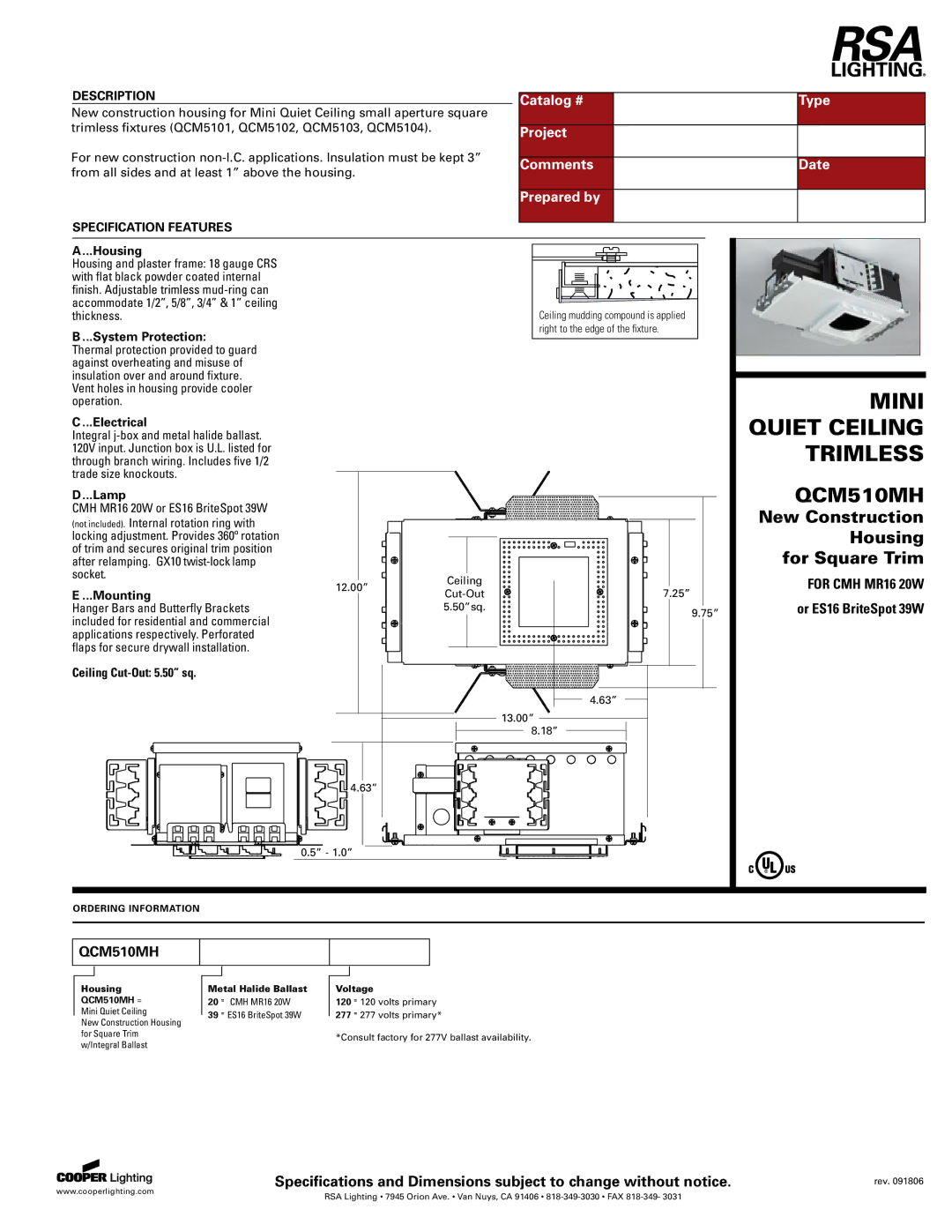

Cooper Lighting QCM510MH specifications For CMH MR16 20W
