D I M E N S I O N SD E S C R I P T I O N

FAIL-SAFE®

CLEANROOM











A







B











B







C E I L I N G O P E N I N G

D O O R F R A M E









C







D



Extruded aluminum mitered

One piece stainless steel





door frame and housing trim

door frame and housing













flange with extruded silicone

trim flange with extruded







rubber perimeter gasketing

closed cell silicone











perimeter gasketing



A

B

C

D



SCF/12

3 7/16"

11 11/16"

12 1/4"

24 1/2"



1' x 2'

(87mm)

(297mm)

(311mm)

(622mm)



SCF/12

3 7/16"

11 11/16"

12 1/4"

48 1/2"



1' x 4'

(87mm)

(297mm)

(311mm)

(1232mm)



SCF/24

3 11/16"

25 1/2"

24 1/4"

24 1/2"



2' x 2'

(94mm)

(648mm)

(616mm)

(622mm)



SCF/24

3 11/16"

25 1/2"

24 1/4"

48 1/2"



2' x 4'

(94mm)

(648mm)

(616mm)

(1232mm)



O R D E R I N G I N F O R M AT I O N

The Fail-Safe SCF Series is designed for use in horizontal or non-laminar air flow clean rooms and features the added convenience of field retrofitting for flange or grid installations.The enclosed and gasketed housing and outside flanged door protect against infiltration of airborne bacteria. Fixture tested to 100 PSI hose down. Higher ratings available (consult factory). The mitered edges on the door frame and the hole-free design of the housing prevent air exchange between the fixture and plenum, allowing re-lamping without contamination of the clean areas. UL Listed Wet Location. These luminaires are manufactured in accordance with U.S.D.A., F.D.A., N.S.F. and Federal Standard 209E. The SCF Series is suitable for use in I.E.S. Class 10 (M2.5), 100 (M 3.5) 1,000 (M 4.5), 10,000 (M

5.5) and 100,000 (M 6.5) clean room environments.

SCF

1 7 W - 1 6 0 W

F l u o r e s c e n t

1' x 2', 1' x 4', 2' x 2', 2' x 4'

S P E C I F I C AT I O N G R A D E F L U O R E S C E N T F L A N G E O U T S I D E F L A N G E D D O O R

• Lens is clear extruded

with prisms positioned

inside fixture and smooth

surface on the outside for

easy cleaning

• Flush mounted, stainless

steel machine screws

S A M P L E N U M B E R : S C F - 1 2 - 3 4 0 - 2 7 7 - I K 1 2 - L E 3 - A L P - G L R

SeriesWidth

SCF=Specification 12=12"

Grade24=24"

Cleanroom

Flange Type

Lamp Type

2' Fixture Length

T8 Fluorescents

117=(1) 17W Lamp

217=(2) 17W Lamps

317=(3) 17W Lamps

417=(4) 17W Lamps

T12 Fluorescents

120=(1) 20W Lamp

220=(2) 20W Lamps

320=(3) 20W Lamps

420=(4) 20W Lamps

U Lamps

2U 1 5/8=(2)31W T8 Lamps

3U 1 5/8=(3) 31WT8 Lamps 2U6T8=(2) 32WT8 Lamps 2U6=(2)40WT12Lamps

Biaxial Fluorescents

140BX=(1) 40W Lamp

240BX=(2) 40W Lamps

340BX=(3) 40W Lamps

Voltage

120=120V

277=277V

347=347V UNV=120V

through 277V

Lens Type

IK12=K-12 Prismatic

Acrylic

IP12=K-12 Prismatic Polycarbonate

KSH251=Bat Wing Distribution

93=Prismatic Tempered Glass

Ballast

LE3=Energy

Saving

Ballast

Electronic

Ballast2

EB81=(1) Ballast

for use

with T8

Lamp

EB82=(2) Ballasts

for use

with T8

Lamp

EB21=(1) Ballast

for use

with T12

Lamp

EB22=(2) Ballasts

for use

with

T12Lamp

EBX1=(1) Ballast

for use

with

Biaxial

Lamp

EBX2=(2) Ballasts

for use

with

Door/Finish

Options

ALP=Aluminum

Door & Trim/ Polyester Powder Finish

ALX=Extruded Aluminum Door & Trim/Clear Anodized Finish

ALXP=Extruded Aluminum Door & Trim/ Polyester Powder Coat Finish (Standard)

Options

EBP=Emergency

Battery Pack

GLR=Fuse and

Holder

RIF=Radio

Frequency

Interference

Filter

Housing Options

SHN=Stainless Steel, Brushed

304Finish

SHP=Stainless Steel, Polyester Powder Finish

ALH=Aluminum,

Polyester

Powder Finish

Nominal 5” deep



recessed one-piece 20 ga.



CRS housing

Unique, Particulock™



lens retention system.



Lens is hermetically



sealed to door frame

Optional extruded



aluminum, mitered, fully



gasketed, outside flanged



door; or one-piece, die-



formed stainless steel



door and housing trim



flange

Standard Class P,



CBM/ETL ballast

MicroSealTM gasketing



system features silicone



RTV sealant sealing lens



to door frame and



extruded silicone rubber



gasketing seals door to



housing and housing to



ceiling

4' Fixture Length

T8 Fluorescents

132=(1) 32W Lamp

232=(2) 32W Lamps

332=(3) 32W Lamps

432=(4) 32W Lamps

T12 Fluorescents

140=(1) 40W Lamp

240=(2) 40W Lamps

340=(3) 40W Lamps

440=(4) 40W Lamps

Biaxial Lamp

Accessories

(Order Separately) MFCF12-4FT=Mounting

Frame

(not required for installation)

MFCF24-4FT=Mounting Frame (not required for installation)

Gasketed access plate



with two flattened, 7/8"



diameter knockouts

Lamps by others

Notes: For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change without notice.

1The KSH25 provides improved visual performance and wide angle distribution. This lens has an integral prism pattern designed so that prisms face the lamp cavity and still supply superior photometrics. Highly recommended for all high tech manufacturing environments. 2 For specific electronic ballast, specify brand and catalog number.

COOPER LIGHTING 1487

Page 1

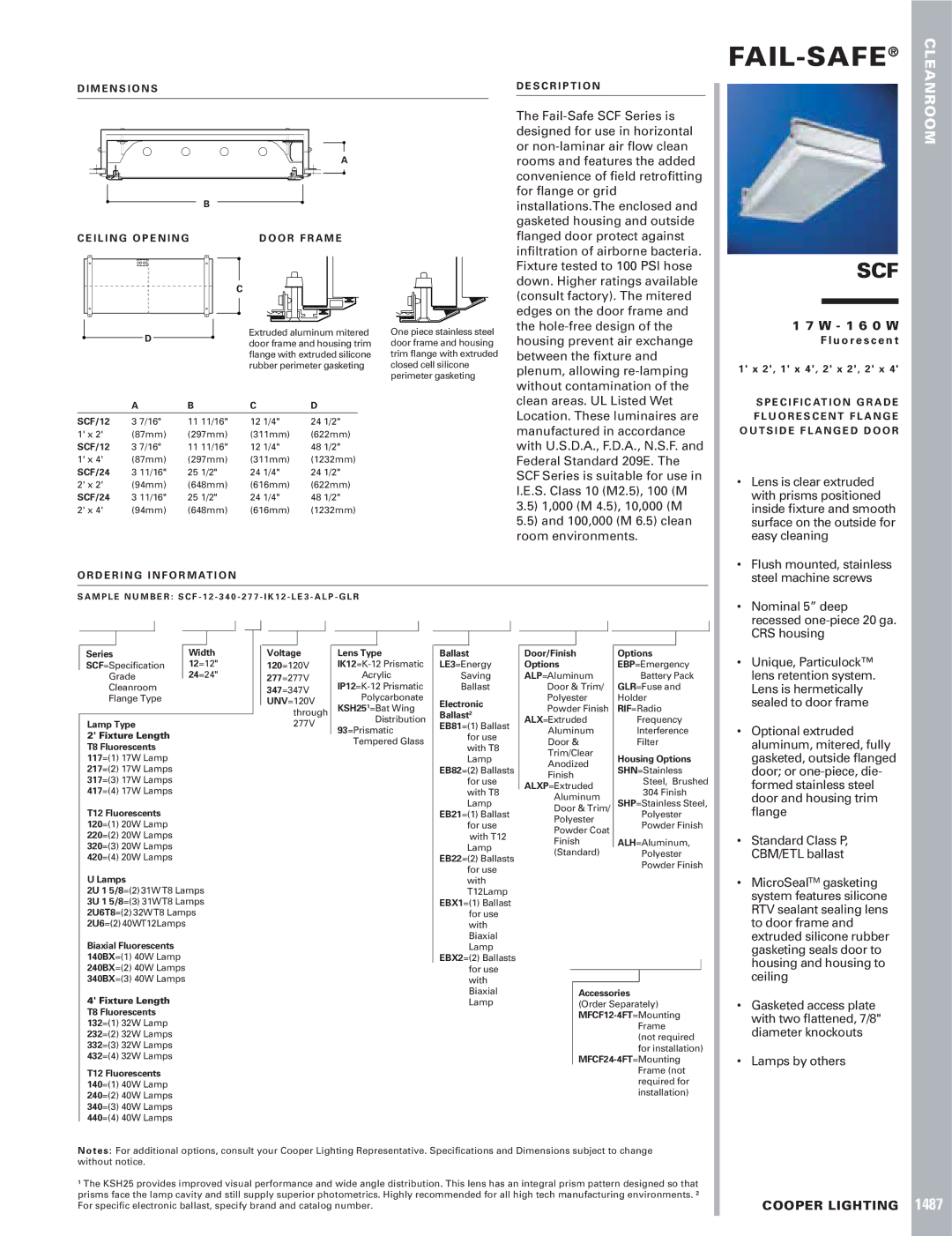

Image 1
