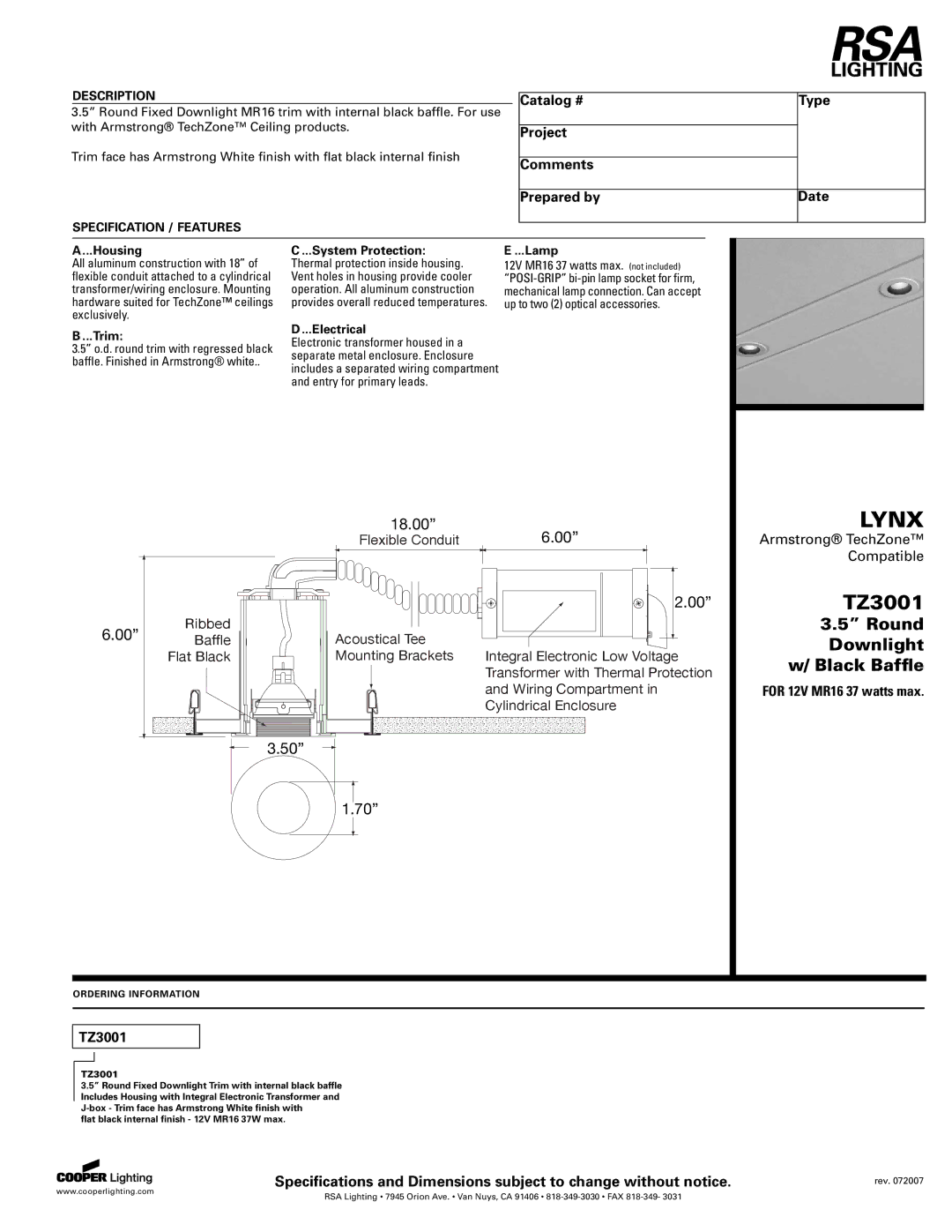

Cooper Lighting TZ3001 specifications Lynx, 3.5” Round Downlight w/ Black Baffle, 6.00”, 3.50”

DESCRIPTION

3.5” Round Fixed Downlight MR16 trim with internal black baffle. For use with Armstrong® TechZone™ Ceiling products.

Trim face has Armstrong White finish with flat black internal finish

SPECIFICATION / FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A....Housing

All aluminum construction with 18” of flexible conduit attached to a cylindrical transformer/wiring enclosure. Mounting hardware suited for TechZone™ ceilings exclusively.

B....Trim:

3.5” o.d. round trim with regressed black baffle. Finished in Armstrong® white..

C....System Protection:

Thermal protection inside housing. Vent holes in housing provide cooler operation. All aluminum construction provides overall reduced temperatures.

D....Electrical

Electronic transformer housed in a separate metal enclosure. Enclosure includes a separated wiring compartment and entry for primary leads.

E....Lamp

12V MR16 37 watts max. (not included) “POSI-GRIP” bi-pin lamp socket for firm, mechanical lamp connection. Can accept up to two (2) optical accessories.

6.00”

18.00” Flexible Conduit

Ribbed	Acoustical Tee
Baffle
Flat Black	Mounting Brackets

3.50”

6.00”

2.00”

Integral Electronic Low Voltage Transformer with Thermal Protection and Wiring Compartment in Cylindrical Enclosure

LYNX

Armstrong® TechZone™ Compatible

TZ3001

3.5” Round

Downlight w/ Black Baffle

FOR 12V MR16 37 watts max.

1.70”

ORDERING INFORMATION

TZ3001

TZ3001

3.5” Round Fixed Downlight Trim with internal black baffle Includes Housing with Integral Electronic Transformer and J-box - Trim face has Armstrong White finish with

flat black internal finish - 12V MR16 37W max.

Specifications and Dimensions subject to change without notice. rev. 072007
