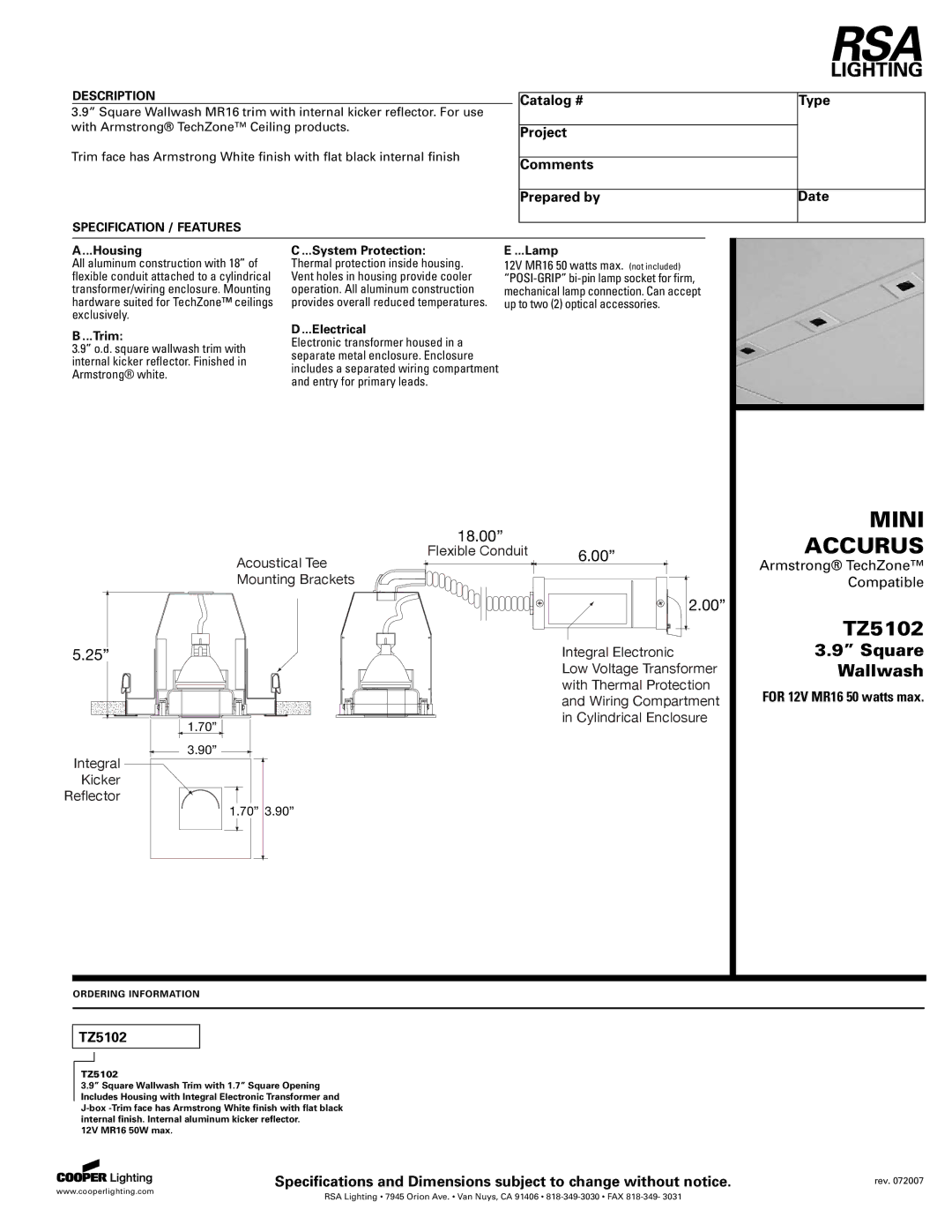

Cooper Lighting TZ5102 specifications Mini Accurus, 3.9” Square Wallwash, 5.25”, 6.00” 2.00”

DESCRIPTION

3.9” Square Wallwash MR16 trim with internal kicker reflector. For use with Armstrong® TechZone™ Ceiling products.

Trim face has Armstrong White finish with flat black internal finish

SPECIFICATION / FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A....Housing

All aluminum construction with 18” of flexible conduit attached to a cylindrical transformer/wiring enclosure. Mounting hardware suited for TechZone™ ceilings exclusively.

B....Trim:

3.9” o.d. square wallwash trim with internal kicker reflector. Finished in Armstrong® white.

C....System Protection:

Thermal protection inside housing. Vent holes in housing provide cooler operation. All aluminum construction provides overall reduced temperatures.

D....Electrical

Electronic transformer housed in a separate metal enclosure. Enclosure includes a separated wiring compartment and entry for primary leads.

E....Lamp

12V MR16 50 watts max. (not included) “POSI-GRIP” bi-pin lamp socket for firm, mechanical lamp connection. Can accept up to two (2) optical accessories.

5.25”

Integral

Kicker

Reflector

Acoustical Tee

Mounting Brackets

1.70”

3.90”

1.70” 3.90”

18.00” Flexible Conduit

6.00”

2.00”

Integral Electronic

Low Voltage Transformer with Thermal Protection and Wiring Compartment in Cylindrical Enclosure

MINI

ACCURUS

Armstrong® TechZone™ Compatible

TZ5102

3.9” Square

Wallwash

FOR 12V MR16 50 watts max.

ORDERING INFORMATION

TZ5102

TZ5102

3.9” Square Wallwash Trim with 1.7” Square Opening Includes Housing with Integral Electronic Transformer and J-box -Trim face has Armstrong White finish with flat black internal finish. Internal aluminum kicker reflector.

12V MR16 50W max.

Specifications and Dimensions subject to change without notice. rev. 072007
