DESCRIPTION

An adjustable Multi-lamp Recessed fixture for use in t-grid ceiling applications. Compatible with Armstrong® Tech Zone ceiling system.

Utilizes 12V MR16 lamps.

For applications in t-grid ceilings. Insulation must be kept 3” from all sides and at least 1” above the housing.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A.... Housing

18 gauge CRS with flat black powder coated internal finish.

B.... System Protection:

Thermal protection provided to guard against overheating.

C... Junction Box

Integral j-box and electronic low voltage (12V) transformers. 120V input, 12V output. Junction box is U.L. listed for through branch wiring. Includes six 1/2 trade size knockouts. Electrical is accessible from above the housing via removable door.

D... Lamps

Can accommodate up to Seven (7) 12V MR16 lamps mounted in adjustable yokes at 8” centers. Lamp can accept up to three optical accessories (i.e. lens + hex louver + snoot). 45º x 370º locking lamp adjustment. Beveled-edge lamp ring is secured with threadless, bayonet action.

E.... Mounting

For use in t-grid style ceilings. Compatible with Amrstrong® Tech Zone ceiling system. Clips on either side of housing secure to the top of the t-grid hardware and center housing above the grid for flangeless appearance.

F.... Labels

cULus listed for non-type IC applications, suitable for use in damp locations.

COMBO GRID

TZ Series

Recessed Multi-Lamp Fixture





Electrical Access Panel







6.387”





A



5.875”











Integral Electronic







Low Voltage Transformers







6.75”









Thermal









Protector







5.50”

3.50”

8.00”

Up to Seven (7)

















Lamps at 8”o/c





T-Grid Ceiling



B





Hardware by others











Lamps

A

B





1

11.83”

7.50”





2

20.00”

16.67”





3

28.00”

23.67”





4

36.00”

31.67”





5

44.00”

39.67”





6

52.00”

47.67”





7

60.00”

55.67”





12V MR16

Compatible with Armstrong® Tech Zone T-Grid Ceiling System

ORDERING INFORMATION

TZAD

E

Configuration

TZAD = COMBO GRID TZ Series Multi-Lamp

Number of Lamps

1 = One Lamp

2 = Two Lamp

3 = Three Lamp

4 = Four Lamp

5 = Five Lamp

6 = Six Lamp

7 = Seven Lamp

Lamp Type / Wattage Label 050M16 = 50 Watt max. MR16 12V

071M16 = 71 Watt max. MR16 12V

Power Supply

E = Electronic Low Voltage Transformer

Power Supply Voltage

1 = 120V

2 = 277V

Finish

WH = White

MB = Black

IS = Industrial Silver

Specifications and Dimensions subject to change without notice.

rev 071108

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031



Page 1

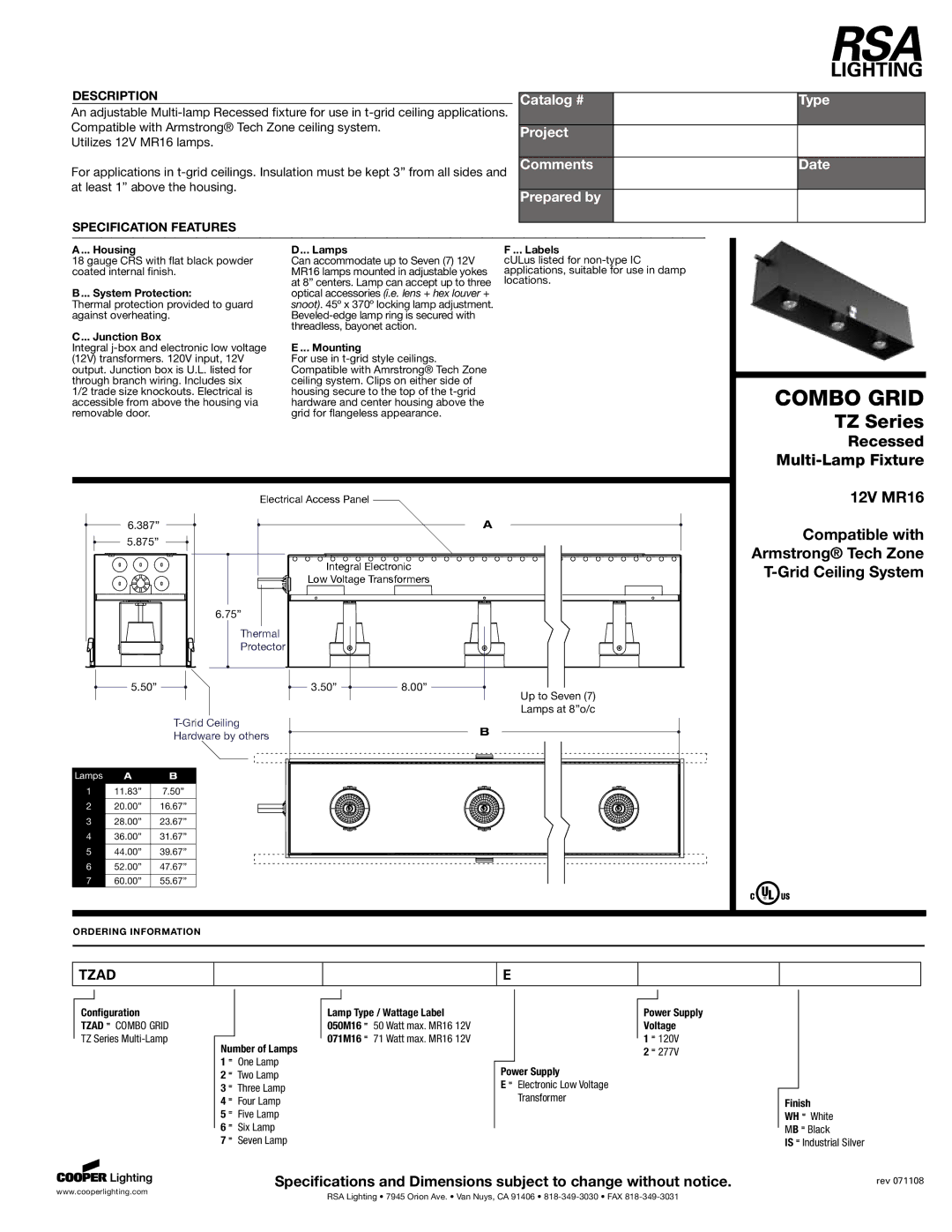

Image 1
