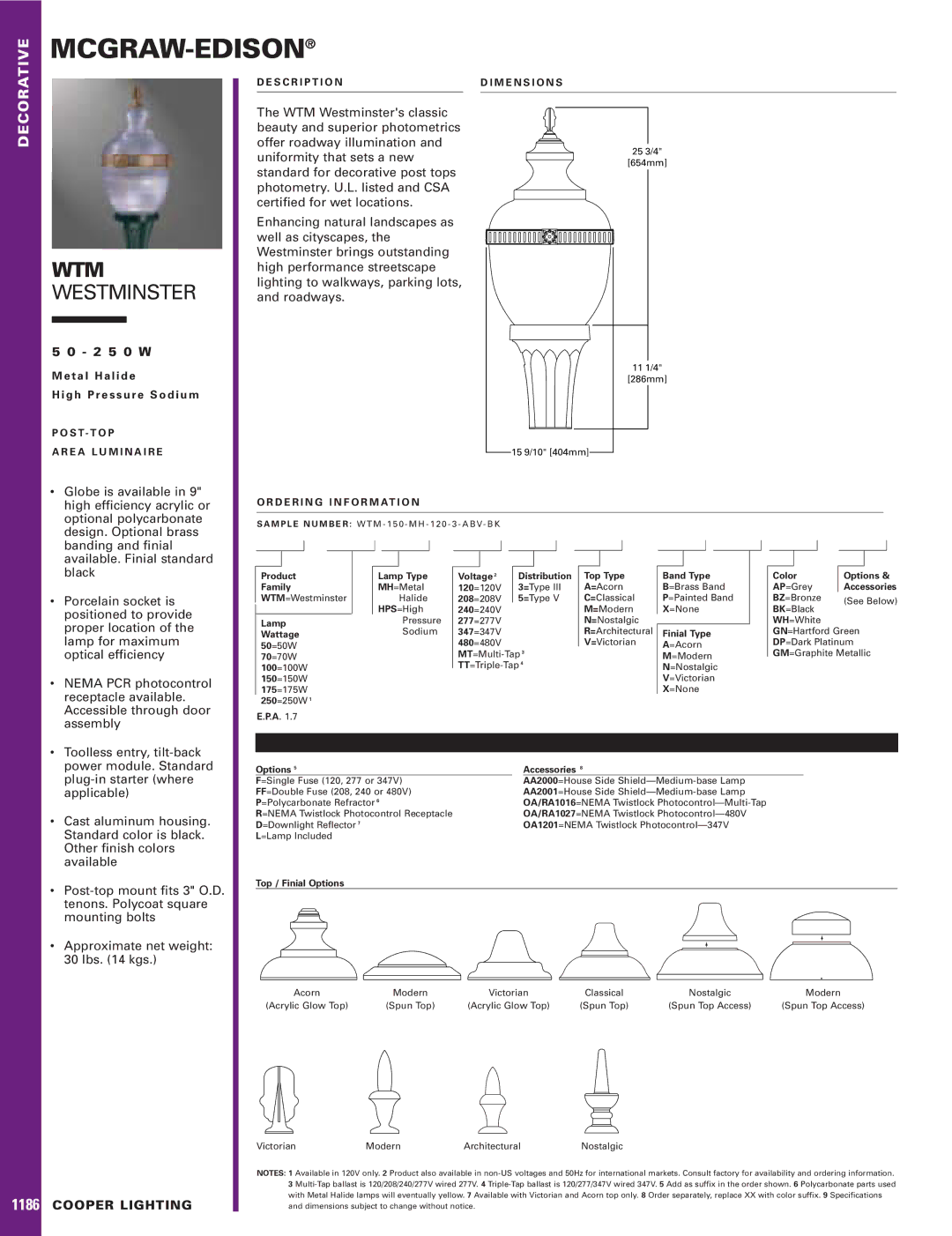

Cooper Lighting WTM specifications Mcgraw-Edison, Westminster, 1186, Decorative, Cooper Lighting

DECORATIVE

MCGRAW-EDISON®

D E S C R I P T I O ND I M E N S I O N S

WTM

WESTMINSTER

5 0 - 2 5 0 W M e t a l H a l i d e

H i g h P r e s s u r e S o d i u m

P O S T- T O P

A R E A L U M I N A I R E

The WTM Westminster's classic beauty and superior photometrics offer roadway illumination and uniformity that sets a new standard for decorative post tops photometry. U.L. listed and CSA certified for wet locations.

Enhancing natural landscapes as well as cityscapes, the Westminster brings outstanding high performance streetscape lighting to walkways, parking lots, and roadways.

25 3/4"

[654mm]

11 1/4"

[286mm]

15 9/10" [404mm]

• Globe is available in 9"

high efficiency acrylic or

optional polycarbonate

design. Optional brass

banding and finial

available. Finial standard

black

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : W T M - 1 5 0 - M H - 1 2 0 - 3 - A B V- B K

•	Porcelain socket is
	positioned to provide
	proper location of the
	lamp for maximum
	optical efficiency
•	NEMA PCR photocontrol
	receptacle available.
	Accessible through door
	assembly
• Toolless entry, tilt-back
	power module. Standard

Product

Family

WTM=Westminster

Lamp Wattage 50=50W 70=70W 100=100W 150=150W 175=175W 250=250W 1

E.P.A. 1.7

Lamp Type

MH=Metal

Halide

HPS=High

Pressure

Sodium

Voltage 2	Distribution
120=120V	3=Type III
208=208V	5=Type V

240=240V

277=277V

347=347V

480=480V

MT=Multi-Tap 3 TT=Triple-Tap 4

Top Type

A=Acorn

C=Classical

M=Modern

N=Nostalgic

R=Architectural

V=Victorian

Band Type

B=Brass Band

P=Painted Band

X=None

Finial Type

A=Acorn

M=Modern

N=Nostalgic

V=Victorian

X=None

Color	Options &
AP=Grey	Accessories
BZ=Bronze	(See Below)
BK=Black
WH=White

GN=Hartford Green

DP=Dark Platinum

GM=Graphite Metallic

1186

	plug-in starter (where
	applicable)
•	Cast aluminum housing.
	Standard color is black.
	Other finish colors
	available
• Post-top mount fits 3" O.D.
	tenons. Polycoat square
	mounting bolts
•	Approximate net weight:
	30 lbs. (14 kgs.)

COOPER LIGHTING

Options 5	Accessories 8
F=Single Fuse (120, 277 or 347V)	AA2000=House Side Shield—Medium-base Lamp
FF=Double Fuse (208, 240 or 480V)	AA2001=House Side Shield—Medium-base Lamp
P=Polycarbonate Refractor 6	OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap
R=NEMA Twistlock Photocontrol Receptacle	OA/RA1027=NEMA Twistlock Photocontrol—480V
D=Downlight Reflector 7	OA1201=NEMA Twistlock Photocontrol—347V
L=Lamp Included
Top / Finial Options

Acorn	Modern	Victorian	Classical	Nostalgic	Modern
(Acrylic Glow Top)	(Spun Top)	(Acrylic Glow Top)	(Spun Top)	(Spun Top Access)	(Spun Top Access)

Victorian Modern Architectural Nostalgic

NOTES: 1 Available in 120V only. 2 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 3 Multi-Tap ballast is 120/208/240/277V wired 277V. 4 Triple-Tap ballast is 120/277/347V wired 347V. 5 Add as suffix in the order shown. 6 Polycarbonate parts used with Metal Halide lamps will eventually yellow. 7 Available with Victorian and Acorn top only. 8 Order separately, replace XX with color suffix. 9 Specifications and dimensions subject to change without notice.
