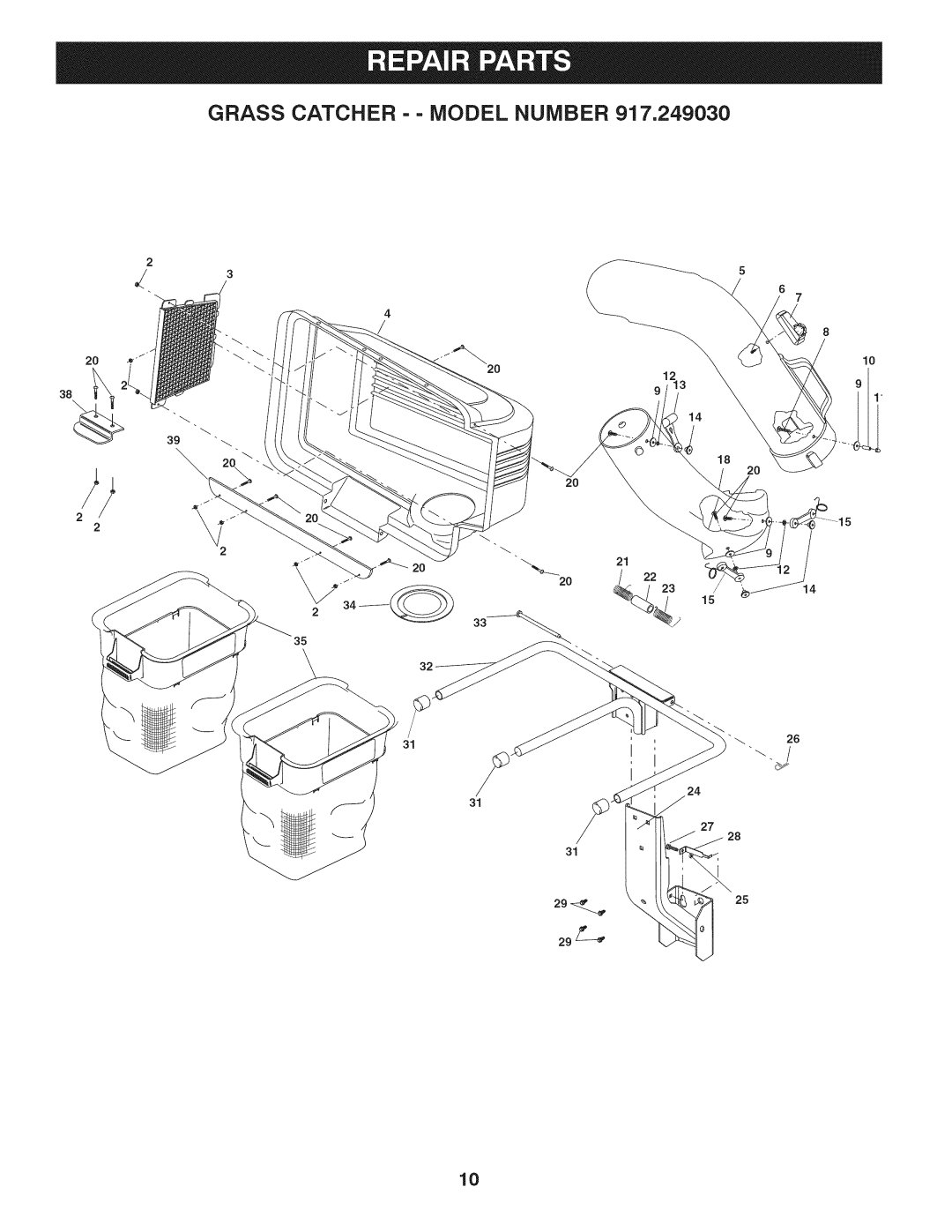

5 UPPER CHUTE (See Figs. 5A and 5B)
1.Lower mower to its lowest cutting position.
2.Assemble upper chute by inserting curved end into hole in back of cover.
TIP: Holding upper chute as shown and twisting while ins- talling in cover will help keep the rubber seal in place.
NOTE: Handle carefully so as not to damage full bag indicator.
UPPER
CHUTE
COVER

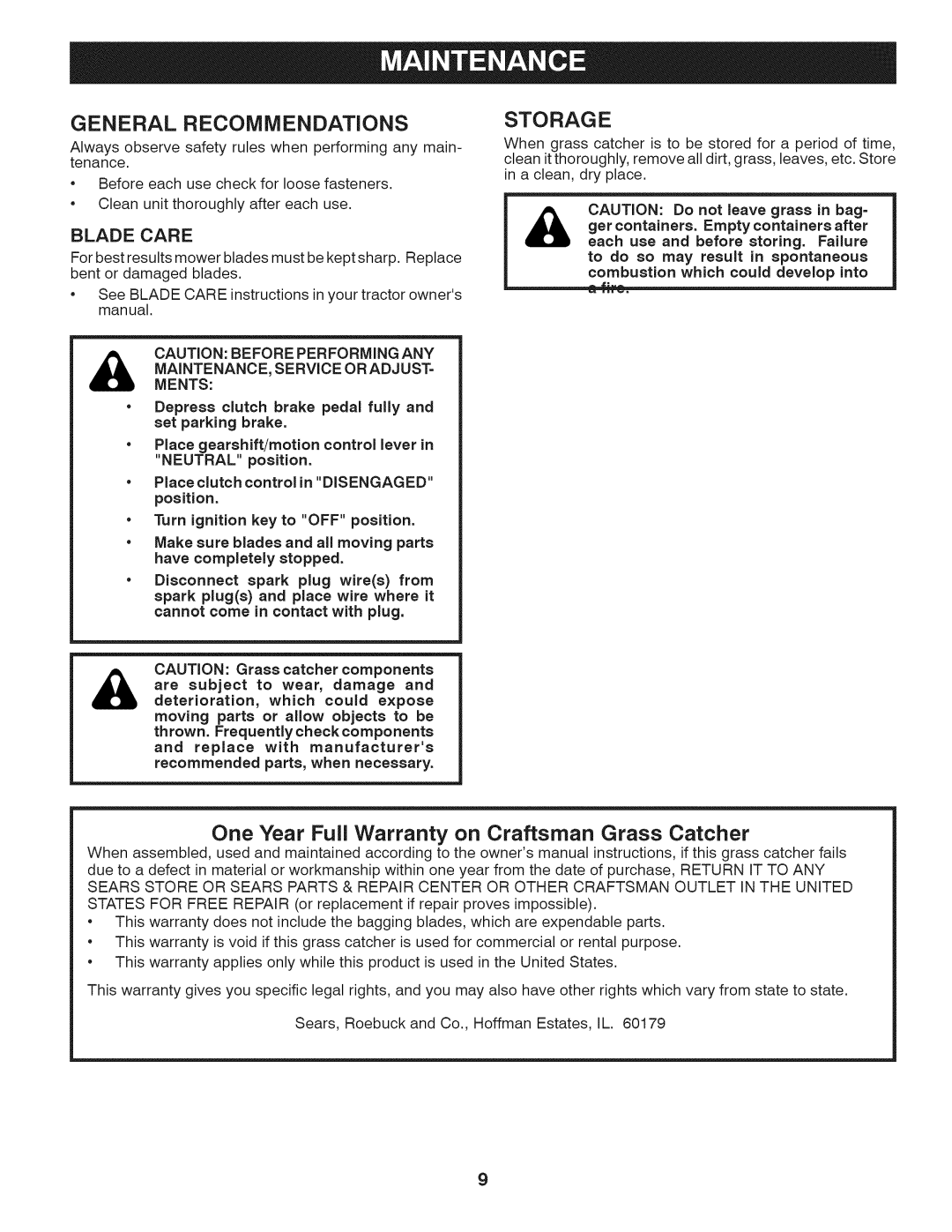

LEVEL MOWER DECK
Be sure mower is properly leveled for best mower per- formance. See your tractors owner's manual for instruc- tions.
FIG. 5A
. Push in and turn upper chute until it is in line with lower chute.
4.Align the bosses on lower chute with alignment slots on upper chute and slide together.
5.Secure with rubber latch by hooking hole in latch over latch pin.
|
| / |
|
|
| FULL BAG | / | ,' |
|
COVER | INDICATOR | ' | ' |
|
|
| |||
|
|
| _ | UPPER |
|
|
|
| CHUTE |
|
|
|
| HANDLE |
|
|
|
| LATCH PIN |
|
|
|
| RUBBER |
|
|
|
| LATCH |
|
|
|
| LOWER |
|
| ALIGN- |
|
|
|
| MENT |
|
|
|
| SLOT |
|
|
BOSSES
FIG. 5B
