| Project ___________________________________ |
| Item _____________________________________ |
| Quantity _ ________________________________ |
248 Series | CSI Section 11400 |
Approved _ _______________________________ |
Date _____________________________________ |

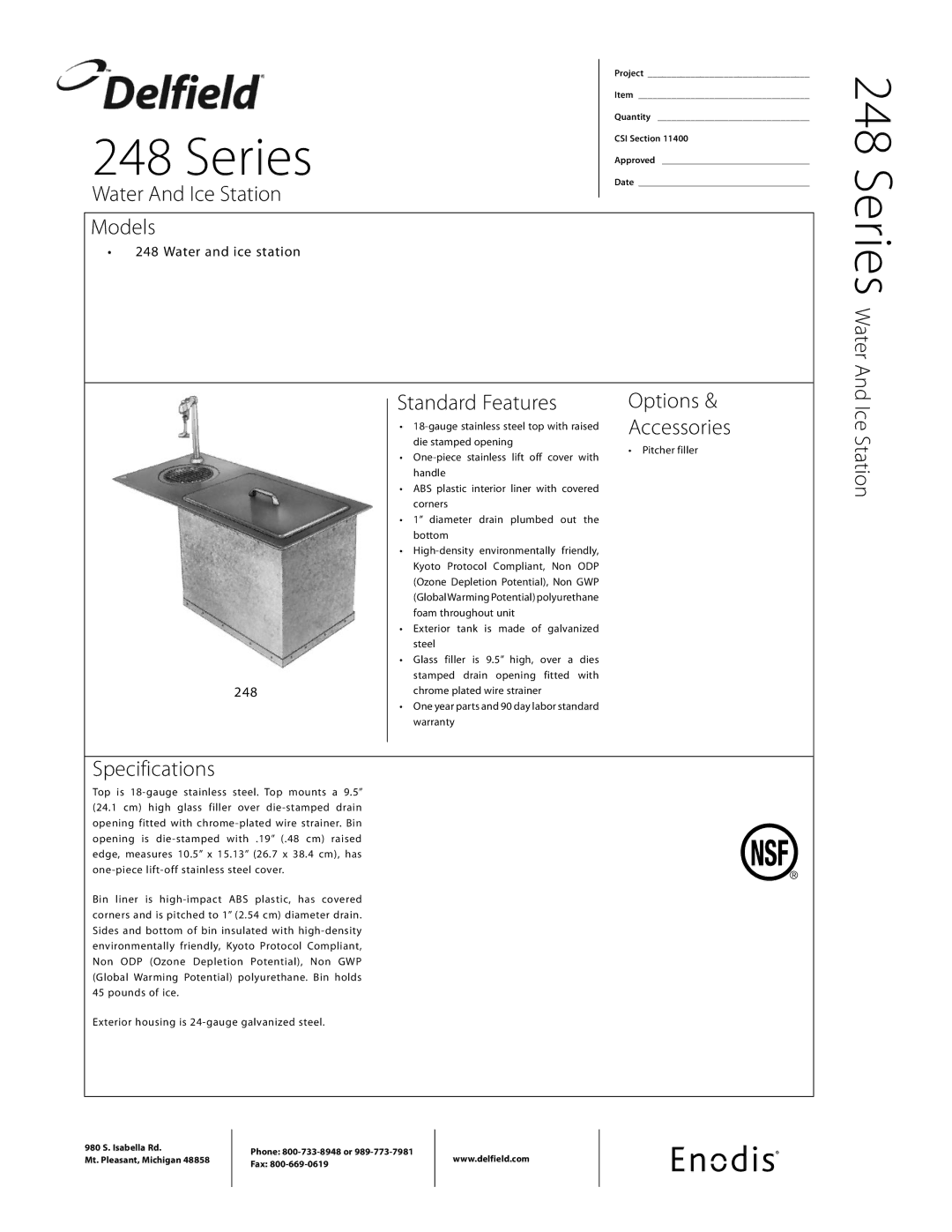

Water And Ice Station | |
|
Models
•248 Water and ice station248 Series Water And
Standard Features
•18-gauge stainless steel top with raised die stamped opening
•One-piece stainless lift off cover with handle
•ABS plastic interior liner with covered corners
•1” diameter drain plumbed out the bottom
•High-density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (GlobalWarming Potential) polyurethane foam throughout unit
•Exterior tank is made of galvanized steel
•Glass filler is 9.5” high, over a dies stamped drain opening fitted with chrome plated wire strainer
•One year parts and 90 day labor standard warranty
Options & Accessories
•Pitcher filler
Ice Station
Specifications

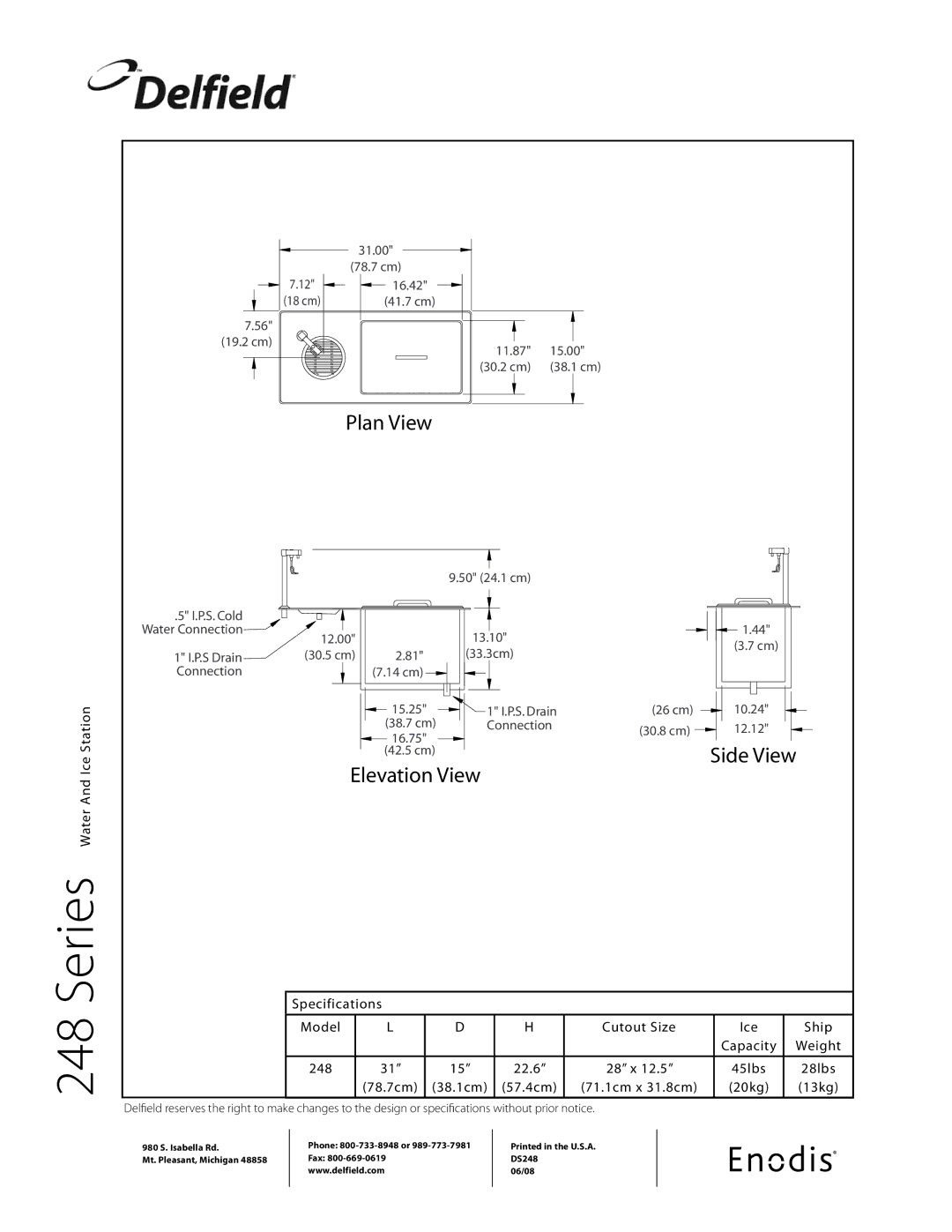

Top is 18-gauge stainless steel. Top mounts a 9.5” (24.1 cm) high glass filler over die-stamped drain opening fitted with chrome-plated wire strainer. Bin opening is die-stamped with .19” (.48 cm) raised edge, measures 10.5” x 15.13” (26.7 x 38.4 cm), has one-piece lift-off stainless steel cover.
Bin liner is high-impact ABS plastic, has covered corners and is pitched to 1” (2.54 cm) diameter drain. Sides and bottom of bin insulated with high-density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane. Bin holds 45 pounds of ice.
Exterior housing is 24-gauge galvanized steel.
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
