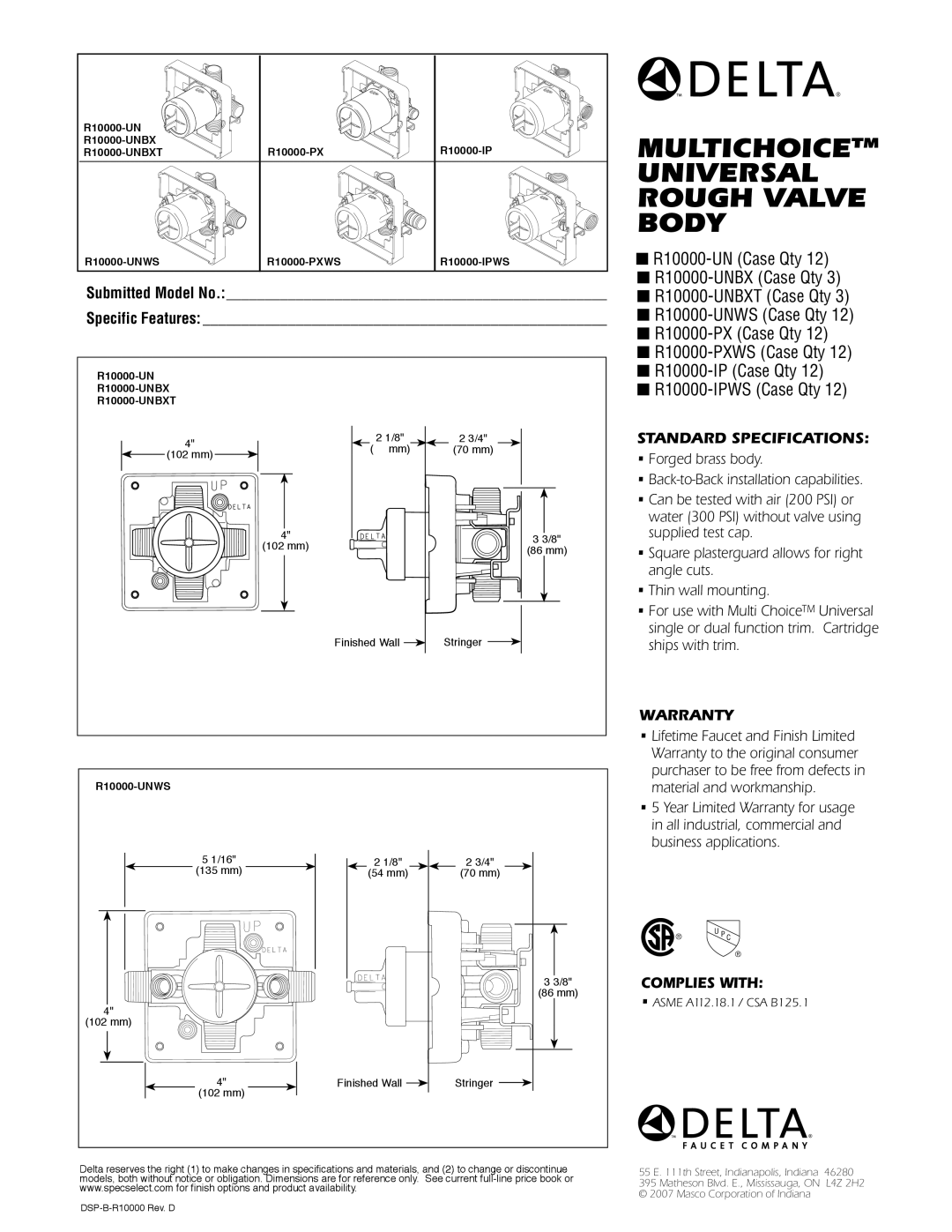

Delta R10000-IPWS warranty Multichoice Universal Rough Valve Body, Standard Specifications

R10000-UN
R10000-UNBX	R10000-PX	R10000-IP
R10000-UNBXT

R10000-UNWS R10000-PXWS R10000-IPWS

Submitted Model No.:

Specific Features:

R10000-UN

R10000-UNBX

R10000-UNBXT

4"	2 1/8	2 3/4
	( mm)	(70 mm)
(102 mm)

4"	3 3/8
(102 mm)	(86 mm)

Finished Wall Stringer

R10000-UNWS

5 1/16	2 1/8	2 3/4
(135 mm)	(54 mm)	(70 mm)

3 3/8

(86 mm)

4"

(102 mm)

4"Finished Wall Stringer

(102 mm)

MULTICHOICE™ UNIVERSAL ROUGH VALVE BODY

■R10000-UN (Case Qty 12)

■R10000-UNBX (Case Qty 3)

■R10000-UNBXT (Case Qty 3)

■R10000-UNWS (Case Qty 12)

■R10000-PX (Case Qty 12)

■R10000-PXWS (Case Qty 12)

■R10000-IP (Case Qty 12)

■R10000-IPWS (Case Qty 12)

STANDARD SPECIFICATIONS:

•Forged brass body.

•Back-to-Back installation capabilities.

•Can be tested with air (200 PSI) or water (300 PSI) without valve using supplied test cap.

•Square plasterguard allows for right angle cuts.

•Thin wall mounting.

•For use with Multi ChoiceTM Universal single or dual function trim. Cartridge ships with trim.

WARRANTY

•Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.

•5 Year Limited Warranty for usage in all industrial, commercial and business applications.

® U P C

®

COMPLIES WITH:

• ASME A 2 8 / CSA B125.1

55 E. 111th Street, Indianapolis, Indiana 46280

models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or395 Matheson Blvd. E., Mississauga, ON L4Z 2H2 www.specselect.com for finish options and product availability.

© 2007 Masco Corporation of Indiana

DSP-B-R10000 Rev D
