Diamond Multimedia HD 3650 GDDR2 specifications Sku, Product Short Description

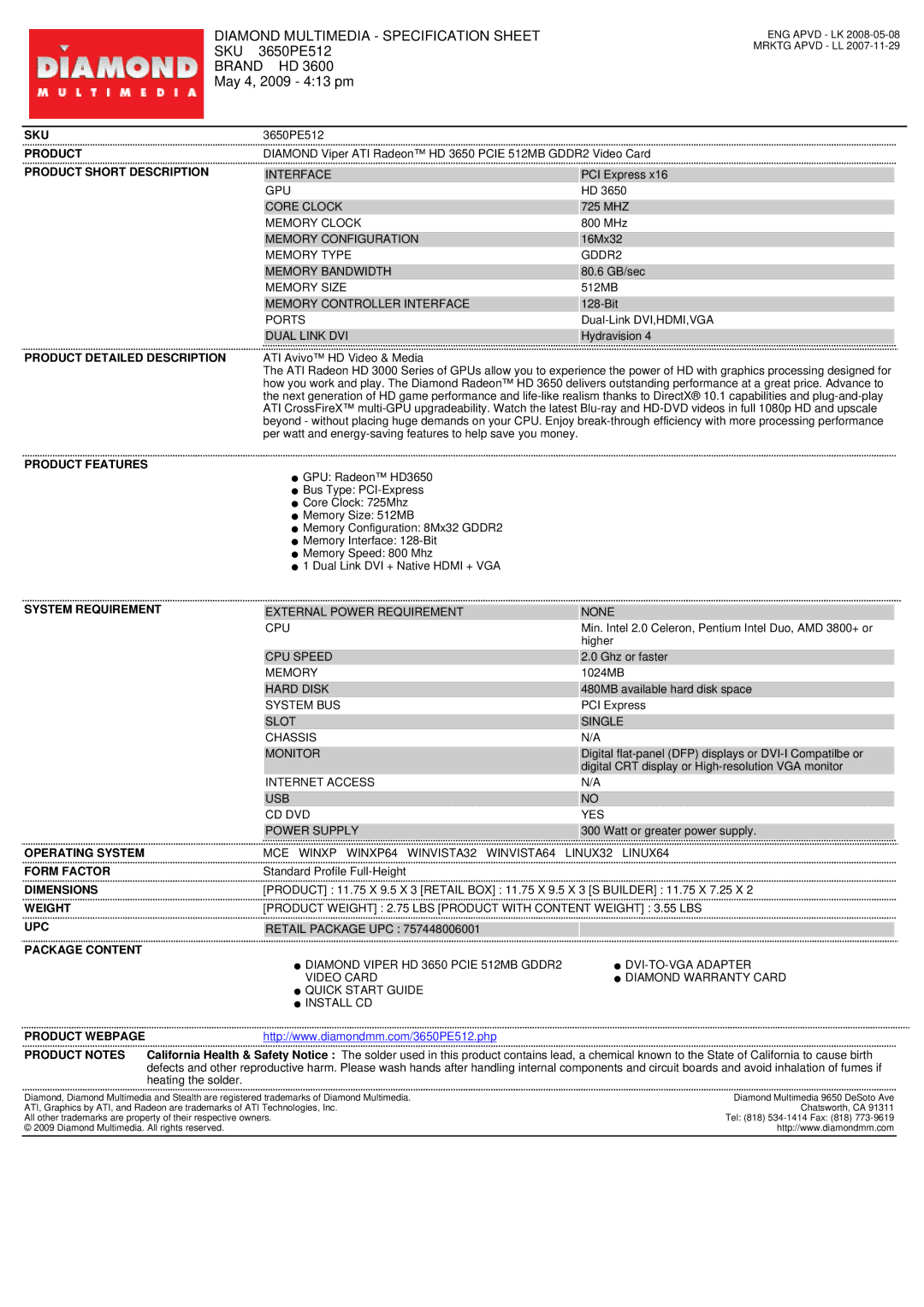

DIAMOND MULTIMEDIA - SPECIFICATION SHEET			ENG APVD - LK 2008-05-08
SKU	3650PE512		MRKTG APVD - LL 2007-11-29
BRAND HD 3600
May 4, 2009 - 4:13 pm
SKU	3650PE512
PRODUCT	DIAMOND Viper ATI Radeon™ HD 3650 PCIE 512MB GDDR2 Video Card
PRODUCT SHORT DESCRIPTION
		INTERFACE	PCI Express x16
		GPU	HD 3650
		CORE CLOCK	725 MHZ
		MEMORY CLOCK	800 MHz
		MEMORY CONFIGURATION	16Mx32
		MEMORY TYPE	GDDR2
		MEMORY BANDWIDTH	80.6 GB/sec
		MEMORY SIZE	512MB
		MEMORY CONTROLLER INTERFACE	128-Bit
		PORTS	Dual-Link DVI,HDMI,VGA
		DUAL LINK DVI	Hydravision 4
PRODUCT DETAILED DESCRIPTION	ATI Avivo™ HD Video & Media
	The ATI Radeon HD 3000 Series of GPUs allow you to experience the power of HD with graphics processing designed for
	how you work and play. The Diamond Radeon™ HD 3650 delivers outstanding performance at a great price. Advance to

the next generation of HD game performance and life-like realism thanks to DirectX® 10.1 capabilities and plug-and-play ATI CrossFireX™ multi-GPU upgradeability. Watch the latest Blu-ray and HD-DVD videos in full 1080p HD and upscale beyond - without placing huge demands on your CPU. Enjoy break-through efficiency with more processing performance per watt and energy-saving features to help save you money.

PRODUCT FEATURES

●GPU: Radeon™ HD3650

●Bus Type: PCI-Express

●Core Clock: 725Mhz

●Memory Size: 512MB

●Memory Configuration: 8Mx32 GDDR2

●Memory Interface: 128-Bit

●Memory Speed: 800 Mhz

●1 Dual Link DVI + Native HDMI + VGA

SYSTEM REQUIREMENT

OPERATING SYSTEM FORM FACTOR DIMENSIONS WEIGHT

UPC

PACKAGE CONTENT

EXTERNAL POWER REQUIREMENT	NONE
CPU	Min. Intel 2.0 Celeron, Pentium Intel Duo, AMD 3800+ or
	higher
CPU SPEED	2.0 Ghz or faster
MEMORY	1024MB
HARD DISK	480MB available hard disk space
SYSTEM BUS	PCI Express
SLOT	SINGLE
CHASSIS	N/A
MONITOR	Digital flat-panel (DFP) displays or DVI-I Compatilbe or
	digital CRT display or High-resolution VGA monitor
INTERNET ACCESS	N/A
USB	NO
CD DVD	YES
POWER SUPPLY	300 Watt or greater power supply.

MCE WINXP WINXP64 WINVISTA32 WINVISTA64 LINUX32 LINUX64

Standard Profile Full-Height

[PRODUCT] : 11.75 X 9.5 X 3 [RETAIL BOX] : 11.75 X 9.5 X 3 [S BUILDER] : 11.75 X 7.25 X 2

[PRODUCT WEIGHT] : 2.75 LBS [PRODUCT WITH CONTENT WEIGHT] : 3.55 LBS

RETAIL PACKAGE UPC : 757448006001

● DIAMOND VIPER HD 3650 PCIE 512MB GDDR2	● DVI-TO-VGA ADAPTER
VIDEO CARD	● DIAMOND WARRANTY CARD
● QUICK START GUIDE
● INSTALL CD

PRODUCT WEBPAGE	http://www.diamondmm.com/3650PE512.php
PRODUCT NOTES	California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
	defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
	heating the solder.

Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.	Diamond Multimedia 9650 DeSoto Ave
ATI, Graphics by ATI, and Radeon are trademarks of ATI Technologies, Inc.	Chatsworth, CA 91311
All other trademarks are property of their respective owners.	Tel: (818) 534-1414 Fax: (818) 773-9619
© 2009 Diamond Multimedia. All rights reserved.	http://www.diamondmm.com
