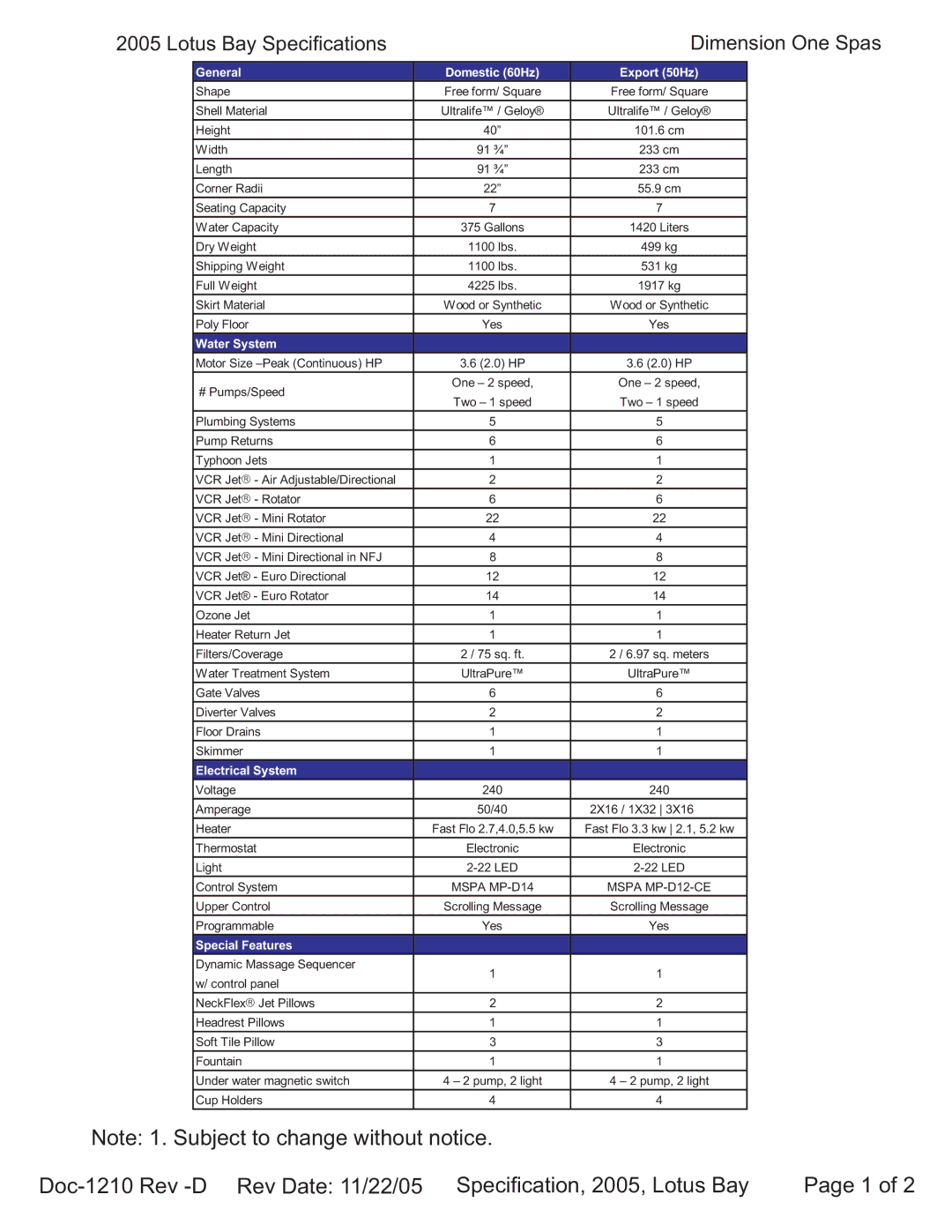

Dimension One Spas Doc-1210Rev - D Rev Date 11/22/05, Specification, 2005, Lotus Bay

2005 Lotus Bay Specifications Dimension One Spas

2005 Lotus Bay

Architectural Specification

	R22 in
	[R56 cm]
	Shell
SIS	R21 in
Compartment	[R53 cm]
	Skirt

19	in	cm]
	[47

12 in

[30 cm]

Vent Holes

Typ 6 plcs

90 in

[228 cm] Skirt

PUMP 3	75 in
August 2005
	[191 cm]
and later
	Pedestal Frame	91.75 in
		[233 cm]

60 in	Shell
[152 cm]

15in

[38 cm]

Electrical Inlet

6in

[15 cm]

4in

[10 cm]

Hose Bib/

Water Drain

PUMP 2

PUMP 1

91.75 in

[233 cm]

Equipment

Compartment

21 in

54 in [54 cm]

[138 cm]

10 in

[25 cm]

Typ 7 Plcs.

Top View Of Spa	Note:
	Lotus Bay models built before August 2005
	All pumps are located in the front left corner

Control Panel

Spa Lip

40 in

[101 cm]

36 in

[91 cm]

	Pedestal Base
3.50 in	75 in
[9 cm]	[191 cm]Pedestal Base
	90 in
	[228 cm]

Front View Of Spa

Caution:

Due to manufacturing tolerances there could be some

minor differences between the actual spa and the drawing above.

If site planning is critical to such tolerances, be sure to measure your actual spa.

Note: 1. Subject to change without notice.

2.Engineering specs may differ slightly from brochure.

3.For E-Z lifter installation allow 18” (45.72cm) clearances on the backside of the spa.

4.Alternative cabinets may add significant weight. Ask your dealer for exact details

Doc-1210 Rev - D Rev Date: 11/22/05 Specification, 2005, Lotus Bay Page 2 of 2
