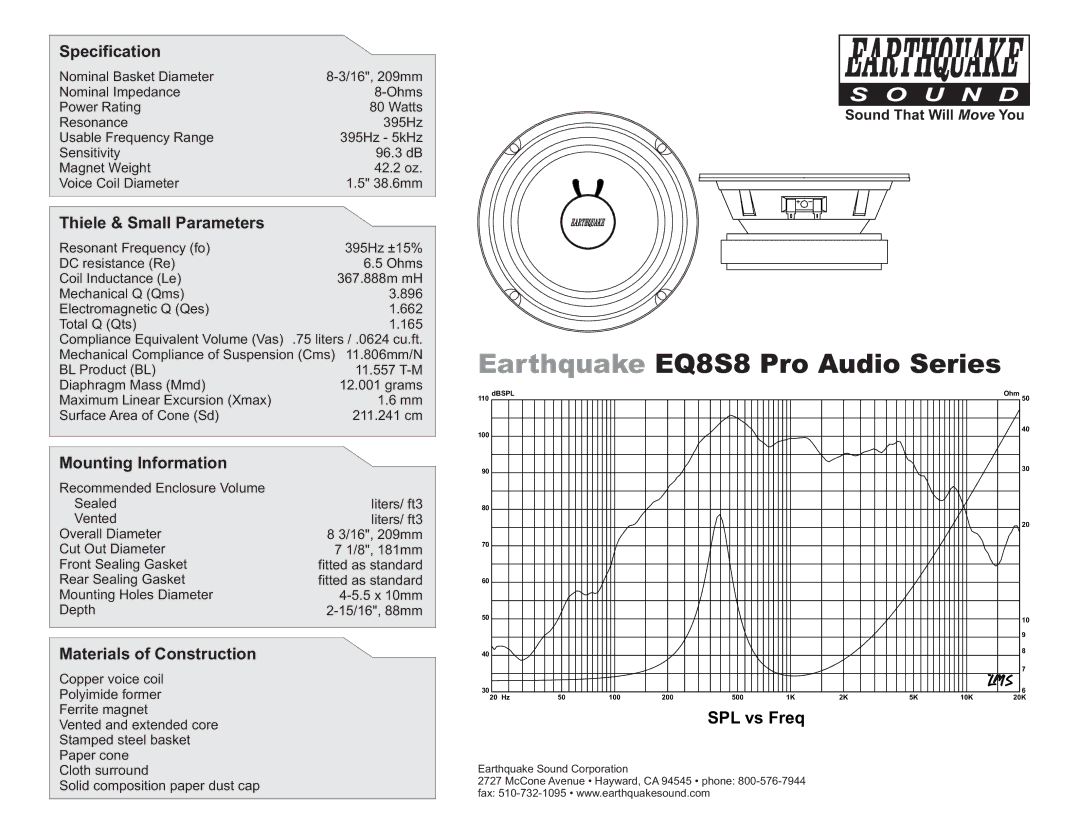

Specification

Nominal Basket Diameter

8-3/16", 209mm

Nominal Impedance

8-Ohms

Power Rating

80 Watts

Resonance

395Hz

Usable Frequency Range

395Hz - 5kHz

Sensitivity

96.3 dB

Magnet Weight

42.2 oz.

Voice Coil Diameter

1.5" 38.6mm

Thiele & Small Parameters

Resonant Frequency (fo)

395Hz ±15%

DC resistance (Re)

6.5 Ohms

Coil Inductance (Le)

367.888m mH

Mechanical Q (Qms)

3.896

Electromagnetic Q (Qes)

1.662

Total Q (Qts)

1.165

Compliance Equivalent Volume (Vas) .75 liters / .0624 cu.ft.

Mechanical Compliance of Suspension (Cms)

11.806mm/N

BL Product (BL)

11.557 T-M

Diaphragm Mass (Mmd)

12.001 grams

Maximum Linear Excursion (Xmax)

1.6 mm

Surface Area of Cone (Sd)

211.241 cm

Sound That Will Move You

Earthquake EQ8S8 Pro Audio Series

dBSPL

Ohm

110

50

100

40



Mounting Information

Recommended Enclosure Volume

Sealed

Vented

Overall Diameter

Cut Out Diameter

Front Sealing Gasket

Rear Sealing Gasket

Mounting Holes Diameter

Depth

Materials of Construction

Copper voice coil Polyimide former Ferrite magnet

Vented and extended core Stamped steel basket Paper cone

Cloth surround

Solid composition paper dust cap

liters/ ft3 liters/ ft3 8 3/16", 209mm

7 1/8", 181mm fitted as standard fitted as standard 4-5.5 x 10mm 2-15/16", 88mm

90

















30



















80





































20

70



















60



















50

















10





































9

40

















8





































7

30

50

100

200

500

1K

2K

5K

10K

6

20 Hz

20K

SPL vs Freq

Earthquake Sound Corporation

2727 McCone Avenue • Hayward, CA 94545 • phone: 800-576-7944

fax: 510-732-1095 • www.earthquakesound.com

Page 1
