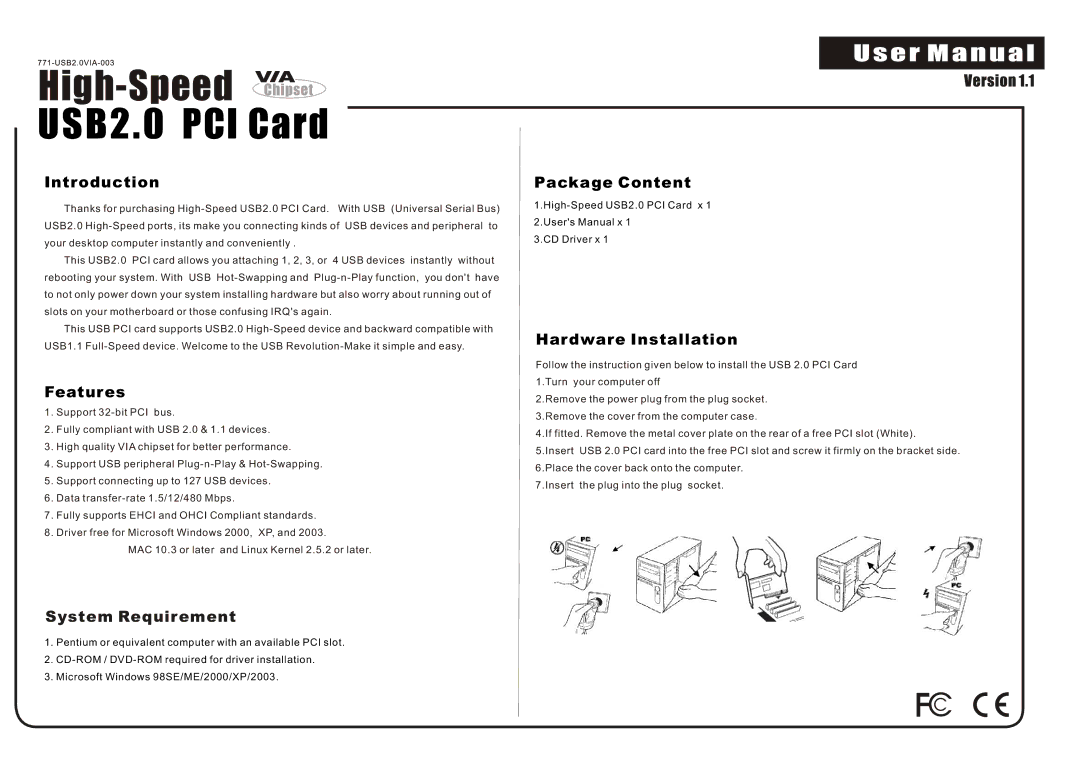

Edimax Technology Version 1.1 user manual Introduction, Features, System Requirement

High-Speed

USB2.0 PCI Card

Introduction

Thanks for purchasing High-Speed USB2.0 PCI Card. With USB (Universal Serial Bus) USB2.0 High-Speed ports, its make you connecting kinds of USB devices and peripheral to your desktop computer instantly and conveniently .

This USB2.0 PCI card allows you attaching 1, 2, 3, or 4 USB devices instantly without rebooting your system. With USB Hot-Swapping and Plug-n-Play function, you don't have to not only power down your system installing hardware but also worry about running out of slots on your motherboard or those confusing IRQ's again.

This USB PCI card supports USB2.0 High-Speed device and backward compatible with USB1.1 Full-Speed device. Welcome to the USB Revolution-Make it simple and easy.

Features

1.Support 32-bit PCI bus.

2.Fully compliant with USB 2.0 & 1.1 devices.

3.High quality VIA chipset for better performance.

4.Support USB peripheral Plug-n-Play & Hot-Swapping.

5.Support connecting up to 127 USB devices.

6.Data transfer-rate 1.5/12/480 Mbps.

7.Fully supports EHCI and OHCI Compliant standards.

8.Driver free for Microsoft Windows 2000, XP, and 2003.

MAC 10.3 or later and Linux Kernel 2.5.2 or later.

System Requirement

Package Content

1.High-Speed USB2.0 PCI Card x 1

2.User's Manual x 1

3.CD Driver x 1

Hardware Installation

Follow the instruction given below to install the USB 2.0 PCI Card 1.Turn your computer off

2.Remove the power plug from the plug socket. 3.Remove the cover from the computer case.

4.If fitted. Remove the metal cover plate on the rear of a free PCI slot (White).

5.Insert USB 2.0 PCI card into the free PCI slot and screw it firmly on the bracket side. 6.Place the cover back onto the computer.

7.Insert the plug into the plug socket.

1.Pentium or equivalent computer with an available PCI slot.

2.CD-ROM / DVD-ROM required for driver installation.

3.Microsoft Windows 98SE/ME/2000/XP/2003.
