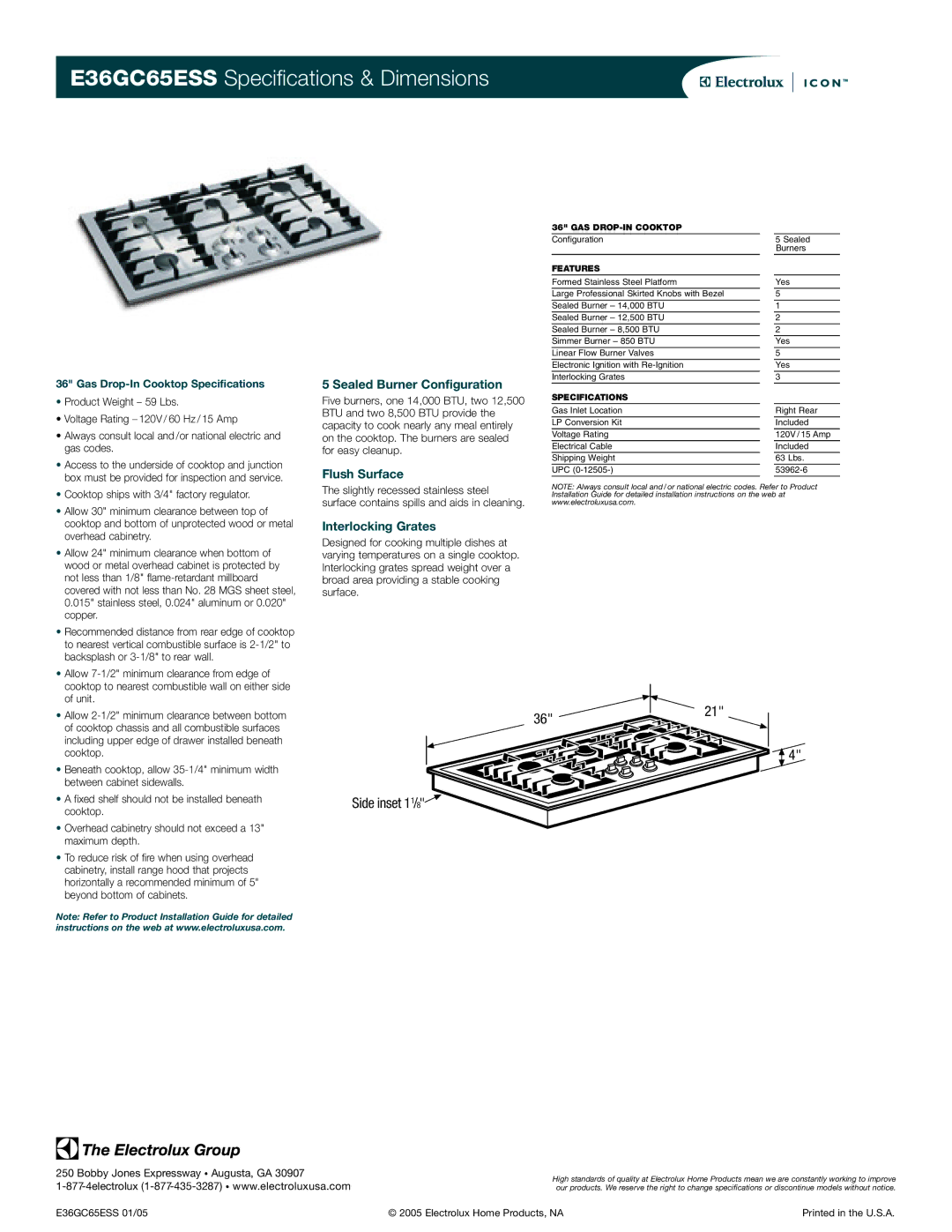

E36GC65ESS Specifications & Dimensions

36" Gas Drop-In Cooktop Specifications

• Product Weight – 59 Lbs.

• Voltage Rating – 120V / 60 Hz / 15 Amp

• Always consult local and /or national electric and

gas codes.

• Access to the underside of cooktop and junction

box must be provided for inspection and service.

5 Sealed Burner Configuration

Five burners, one 14,000 BTU, two 12,500 BTU and two 8,500 BTU provide the capacity to cook nearly any meal entirely on the cooktop. The burners are sealed for easy cleanup.

Flush Surface

36" GAS DROP-IN COOKTOP

Configuration

FEATURES

Formed Stainless Steel Platform

Large Professional Skirted Knobs with Bezel

Sealed Burner – 14,000 BTU

Sealed Burner – 12,500 BTU

Sealed Burner – 8,500 BTU

Simmer Burner – 850 BTU

Linear Flow Burner Valves

Electronic Ignition with Re-Ignition

Interlocking Grates

SPECIFICATIONS

Gas Inlet Location

LP Conversion Kit

Voltage Rating

Electrical Cable

Shipping Weight

UPC (0-12505-)

5Sealed Burners

Yes

5

1

2

2

Yes

5

Yes

3

Right Rear

Included

120V / 15 Amp

Included

63Lbs. 53962-6

• Cooktop ships with 3/4" factory regulator.

• Allow 30" minimum clearance between top of

cooktop and bottom of unprotected wood or metal

overhead cabinetry.

• Allow 24" minimum clearance when bottom of

wood or metal overhead cabinet is protected by

not less than 1/8" flame-retardant millboard

covered with not less than No. 28 MGS sheet steel,

0.015" stainless steel, 0.024" aluminum or 0.020"

copper.

• Recommended distance from rear edge of cooktop

to nearest vertical combustible surface is 2-1/2" to

backsplash or 3-1/8" to rear wall.

• Allow 7-1/2" minimum clearance from edge of

cooktop to nearest combustible wall on either side

of unit.

The slightly recessed stainless steel surface contains spills and aids in cleaning.

Interlocking Grates

Designed for cooking multiple dishes at varying temperatures on a single cooktop. Interlocking grates spread weight over a broad area providing a stable cooking surface.

NOTE: Always consult local and / or national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at www.electroluxusa.com.

• Allow 2-1/2" minimum clearance between bottom

of cooktop chassis and all combustible surfaces

including upper edge of drawer installed beneath

cooktop.

• Beneath cooktop, allow 35-1/4" minimum width

between cabinet sidewalls.

• A fixed shelf should not be installed beneath

cooktop.

• Overhead cabinetry should not exceed a 13"

maximum depth.

• To reduce risk of fire when using overhead

cabinetry, install range hood that projects

horizontally a recommended minimum of 5"

beyond bottom of cabinets.

Note: Refer to Product Installation Guide for detailed instructions on the web at www.electroluxusa.com.

Side inset 11/8"

36"

21"

4"

250 Bobby Jones Expressway • Augusta, GA 30907

1-877-4electrolux (1-877-435-3287) • www.electroluxusa.com

High standards of quality at Electrolux Home Products mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice.

E36GC65ESS 01/05 © 2005 Electrolux Home Products, NA Printed in the U.S.A.
