Electrolux NCPG800, NCPG400 dimensions Range Composition, Functional and Construction Features

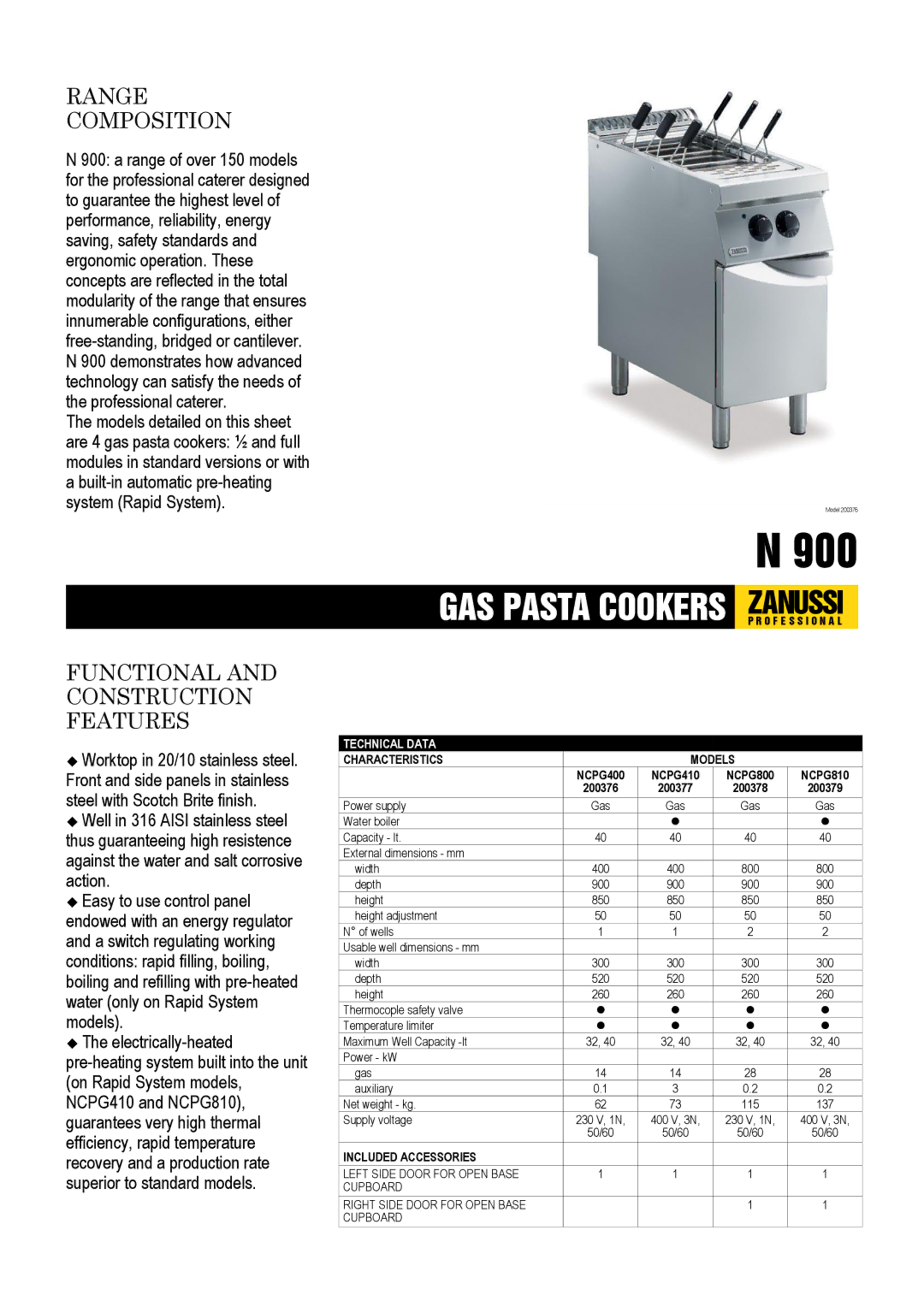

RANGE

COMPOSITION

N 900: a range of over 150 models for the professional caterer designed to guarantee the highest level of performance, reliability, energy saving, safety standards and ergonomic operation. These concepts are reflected in the total modularity of the range that ensures innumerable configurations, either free-standing, bridged or cantilever. N 900 demonstrates how advanced technology can satisfy the needs of the professional caterer.

The models detailed on this sheet are 4 gas pasta cookers: ½ and full modules in standard versions or with a built-in automatic pre-heating system (Rapid System).

Model 200376

FUNCTIONAL AND CONSTRUCTION FEATURES

�Worktop in 20/10 stainless steel. Front and side panels in stainless steel with Scotch Brite finish.

�Well in 316 AISI stainless steel thus guaranteeing high resistence against the water and salt corrosive action.

�Easy to use control panel endowed with an energy regulator and a switch regulating working conditions: rapid filling, boiling, boiling and refilling with pre-heated water (only on Rapid System models).

�The electrically-heated

pre-heating system built into the unit (on Rapid System models, NCPG410 and NCPG810), guarantees very high thermal efficiency, rapid temperature recovery and a production rate superior to standard models.

N 900

GAS PASTA COOKERS ZANUSSIP R O F E S S I O N A L

TECHNICAL DATA
CHARACTERISTICS		MODELS
	NCPG400	NCPG410	NCPG800	NCPG810
	200376	200377	200378	200379
Power supply	Gas	Gas	Gas	Gas
Water boiler		•		•
Capacity - lt.	40	40	40	40

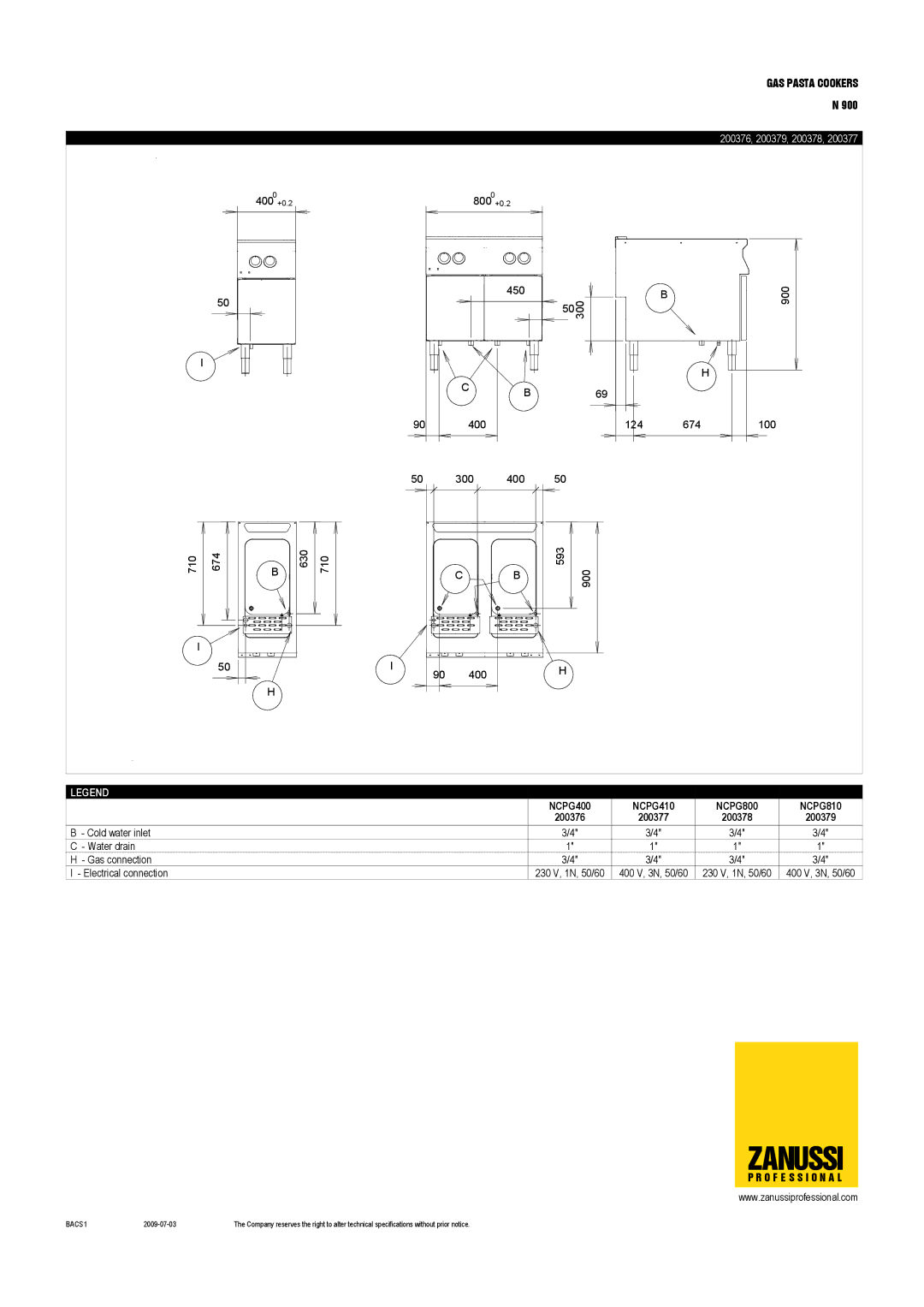

External dimensions - mm
width	400	400	800	800
depth	900	900	900	900
height	850	850	850	850
height adjustment	50	50	50	50
N° of wells	1	1	2	2
Usable well dimensions - mm
width	300	300	300	300
depth	520	520	520	520
height	260	260	260	260
Thermocople safety valve	•	•	•	•
Temperature limiter	•	•	•	•
Maximum Well Capacity -lt	32, 40	32, 40	32, 40	32, 40
Power - kW
gas	14	14	28	28
auxiliary	0.1	3	0.2	0.2
Net weight - kg.	62	73	115	137
Supply voltage	230 V, 1N,	400 V, 3N,	230 V, 1N,	400 V, 3N,
	50/60	50/60	50/60	50/60

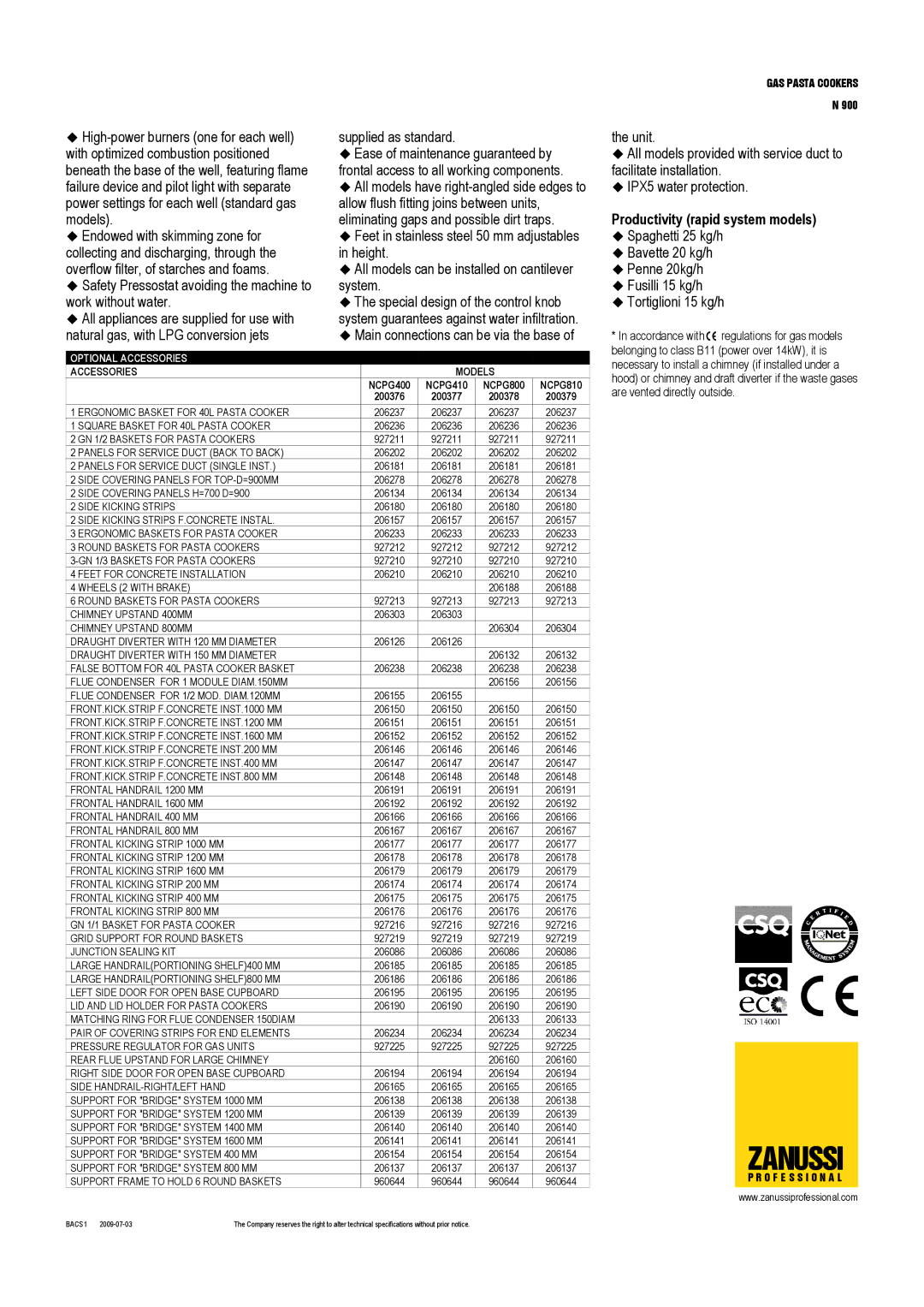

INCLUDED ACCESSORIES
LEFT SIDE DOOR FOR OPEN BASE	1	1	1	1
CUPBOARD
RIGHT SIDE DOOR FOR OPEN BASE			1	1
CUPBOARD
