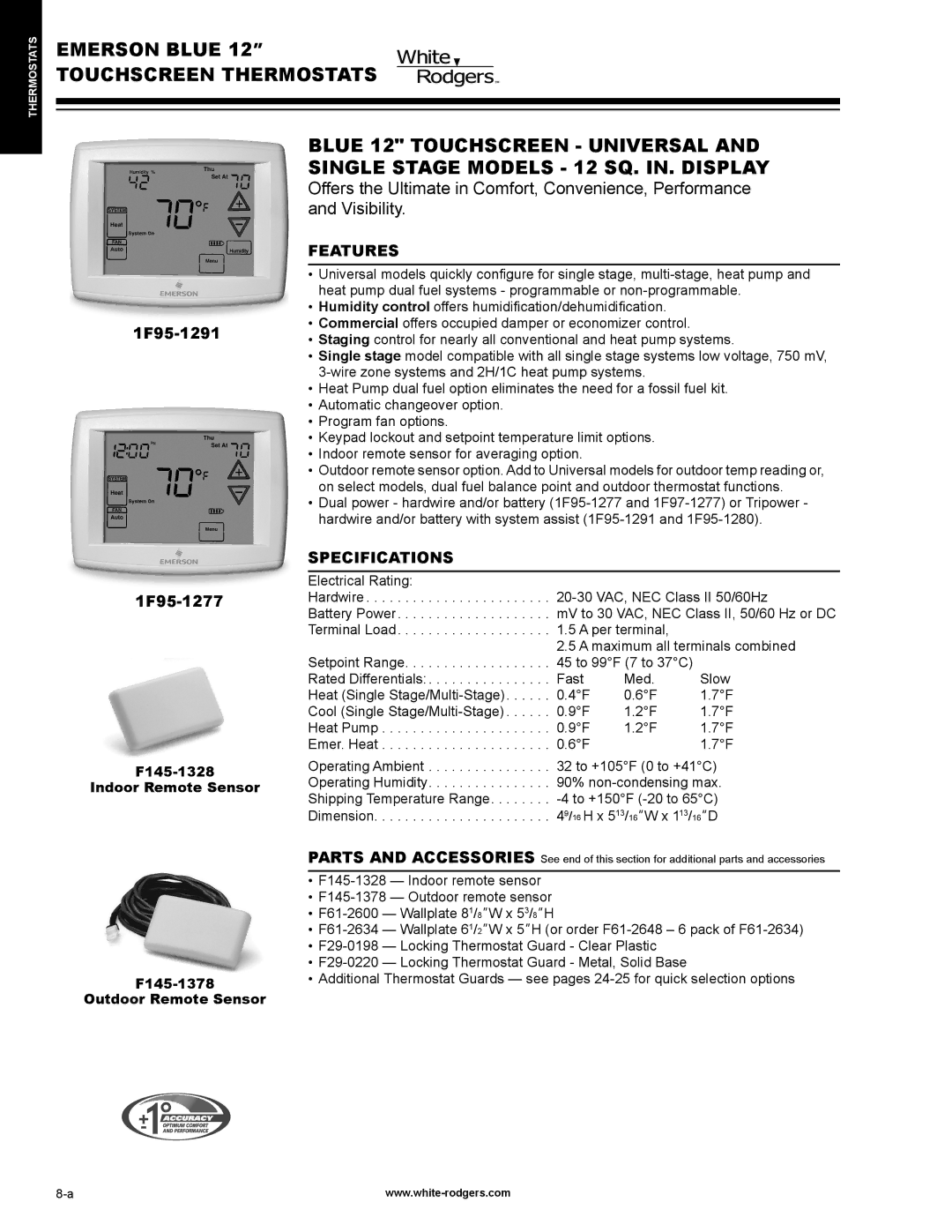

Emerson F145-1378 specifications EMERSON BLUE 12” TOUCHSCREEN THERMOSTATS, 1F95-1291 1F95-1277

THERMOSTATS

EMERSON BLUE 12”

TOUCHSCREEN THERMOSTATS

1F95-1291

1F95-1277

F145-1328

Indoor Remote Sensor

F145-1378

Outdoor Remote Sensor

BLUE 12" TOUCHSCREEN - UNIVERSAL AND SINGLE STAGE MODELS - 12 SQ. IN. DISPLAY

Offers the Ultimate in Comfort, Convenience, Performance and Visibility.

FEATURES

•Universal models quickly configure for single stage, multi-stage, heat pump and heat pump dual fuel systems - programmable or non-programmable.

•Humidity control offers humidification/dehumidification.

•Commercial offers occupied damper or economizer control.

•Staging control for nearly all conventional and heat pump systems.

•Single stage model compatible with all single stage systems low voltage, 750 mV, 3-wire zone systems and 2H/1C heat pump systems.

•Heat Pump dual fuel option eliminates the need for a fossil fuel kit.

•Automatic changeover option.

•Program fan options.

•Keypad lockout and setpoint temperature limit options.

•Indoor remote sensor for averaging option.

•Outdoor remote sensor option. Add to Universal models for outdoor temp reading or, on select models, dual fuel balance point and outdoor thermostat functions.

•Dual power - hardwire and/or battery (1F95-1277 and 1F97-1277) or Tripower - hardwire and/or battery with system assist (1F95-1291 and 1F95-1280).

SPECIFICATIONS

Electrical Rating:

Hardwire . . . . . . . . . . . . 20-30 VAC, NEC Class II 50/60Hz

Battery Power . . . . . . . . . . mV to 30 VAC, NEC Class II, 50/60 Hz or DC Terminal Load . . . . . . . . . . 1.5 A per terminal,

2.5A maximum all terminals combined

Setpoint Range . . . . . . . . . 45 to 99°F (7 to 37°C)

Rated Differentials:	.	.	Fast	Med.	Slow
Heat (Single Stage/Multi-Stage) .	.	.	0.4°F	0.6°F	1.7°F
Cool (Single Stage/Multi-Stage) .	.	.	0.9°F	1.2°F	1.7°F
Heat Pump	. .	.	0.9°F	1.2°F	1.7°F
Emer. Heat	. .	.	0.6°F		1.7°F

Operating Ambient . . . . . . . . 32 to +105°F (0 to +41°C) Operating Humidity . . . . . . . . 90% non-condensing max. Shipping Temperature Range . . . . -4 to +150°F (-20 to 65°C) Dimension . . . . . . . . . . . 49/16 H x 513/16”W x 113/16”D

PARTS AND ACCESSORIES See end of this section for additional parts and accessories

•F145-1328 — Indoor remote sensor

•F145-1378 — Outdoor remote sensor

•F61-2600 — Wallplate 81/8”W x 53/8”H

•F61-2634 — Wallplate 61/2”W x 5”H (or order F61-2648 – 6 pack of F61-2634)

•F29-0198 — Locking Thermostat Guard - Clear Plastic

•F29-0220 — Locking Thermostat Guard - Metal, Solid Base

•Additional Thermostat Guards — see pages 24-25 for quick selection options
