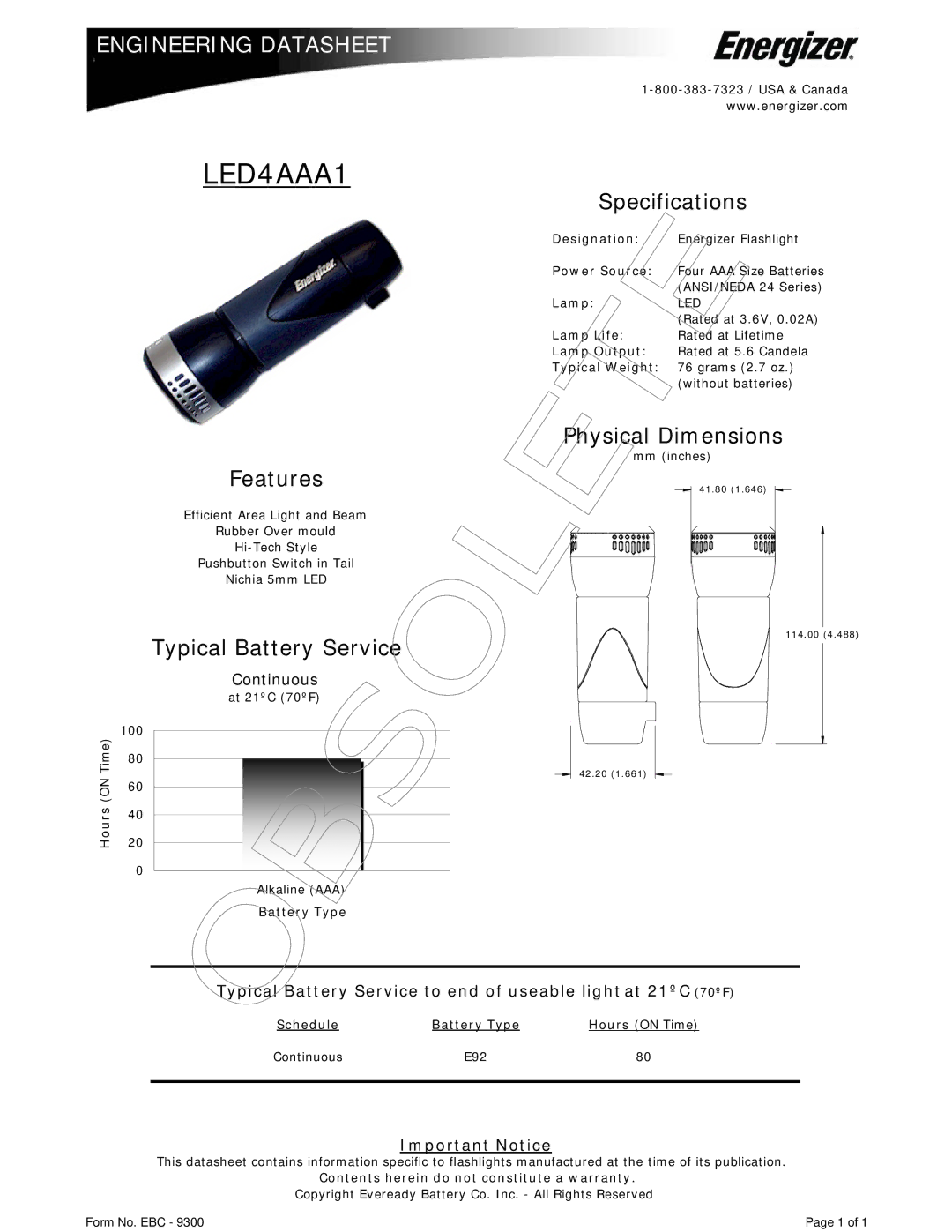

ENGINEERING DATASHEET
LED4AAA1
Specifications
Designation: | Energizer Flashlight |
Power Source: | Four AAA Size Batteries |
| (ANSI/NEDA 24 Series) |
Lamp: | LED |
| (Rated at 3.6V, 0.02A) |
Lamp Life: | Rated at Lifetime |
Lamp Output: | Rated at 5.6 Candela |
Typical Weight: | 76 grams (2.7 oz.) |
| (without batteries) |
Physical Dimensions
mm (inches)
Hours (ON Time)
Features
Efficient Area Light and Beam
Rubber Over mould
Pushbutton Switch in Tail
Nichia 5mm LED
Typical Battery Service
Continuous
at 21ºC (70ºF)
100
80
60
40
20
0
Alkaline (AAA)
Battery Type
41.80 (1.646)
114.00 (4.488)
42.20 (1.661)
Typical Battery Service to end of useable light at 21ºC (70ºF)
Schedule | Battery Type | Hours (ON Time) |
Continuous | E92 | 80 |
|
|
|
Important Notice
This datasheet contains information specific to flashlights manufactured at the time of its publication.
Contents herein do not constitute a warranty.
Copyright Eveready Battery Co. Inc. - All Rights Reserved
Form No. EBC - 9300 | Page 1 of 1 |
