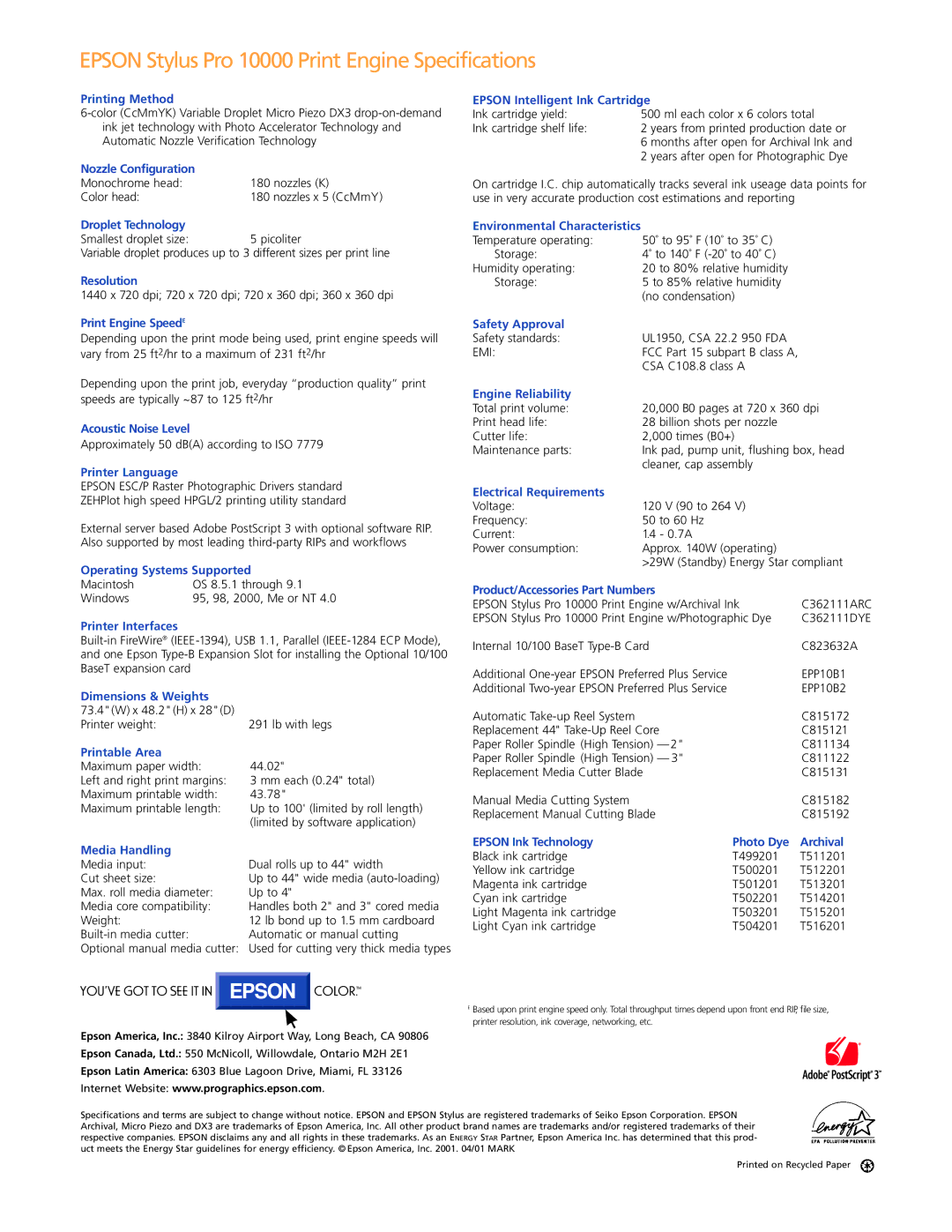

EPSON Stylus Pro 10000 Print Engine Specifications
Printing Method
Nozzle Configuration |
|
Monochrome head: | 180 nozzles (K) |
Color head: | 180 nozzles x 5 (CcMmY) |
Droplet Technology
Smallest droplet size:5 picoliter
Variable droplet produces up to 3 different sizes per print line
Resolution
1440 x 720 dpi; 720 x 720 dpi; 720 x 360 dpi; 360 x 360 dpi
Print Engine SpeedE
Depending upon the print mode being used, print engine speeds will vary from 25 ft2/hr to a maximum of 231 ft2/hr
Depending upon the print job, everyday “production quality” print speeds are typically ~87 to 125 ft2/hr
Acoustic Noise Level
Approximately 50 dB(A) according to ISO 7779
Printer Language
EPSON ESC/P Raster Photographic Drivers standard
ZEHPlot high speed HPGL/2 printing utility standard
External server based Adobe PostScript 3 with optional software RIP. Also supported by most leading
Operating Systems Supported
Macintosh | OS 8.5.1 through 9.1 |
Windows | 95, 98, 2000, Me or NT 4.0 |
Printer Interfaces
Dimensions & Weights |
|
73.4"(W) x 48.2"(H) x 28"(D) |
|
Printer weight: | 291 lb with legs |
Printable Area |
|
Maximum paper width: | 44.02" |
Left and right print margins: | 3 mm each (0.24" total) |
Maximum printable width: | 43.78" |
Maximum printable length: | Up to 100' (limited by roll length) |
| (limited by software application) |
Media Handling |
|
Media input: | Dual rolls up to 44" width |
Cut sheet size: | Up to 44" wide media |
Max. roll media diameter: | Up to 4" |
Media core compatibility: | Handles both 2" and 3" cored media |
Weight: | 12 lb bond up to 1.5 mm cardboard |
Automatic or manual cutting | |
Optional manual media cutter: | Used for cutting very thick media types |
EPSON Intelligent Ink Cartridge | |
Ink cartridge yield: | 500 ml each color x 6 colors total |
Ink cartridge shelf life: | 2 years from printed production date or |
| 6 months after open for Archival Ink and |
| 2 years after open for Photographic Dye |
On cartridge I.C. chip automatically tracks several ink useage data points for use in very accurate production cost estimations and reporting
Environmental Characteristics |
|
Temperature operating: | 50˚ to 95˚ F (10˚ to 35˚ C) |
Storage: | 4˚ to 140˚ F |
Humidity operating: | 20 to 80% relative humidity |
Storage: | 5 to 85% relative humidity |
| (no condensation) |
Safety Approval |
|
Safety standards: | UL1950, CSA 22.2 950 FDA |
EMI: | FCC Part 15 subpart B class A, |
| CSA C108.8 class A |
Engine Reliability |
|
Total print volume: | 20,000 B0 pages at 720 x 360 dpi |
Print head life: | 28 billion shots per nozzle |
Cutter life: | 2,000 times (B0+) |
Maintenance parts: | Ink pad, pump unit, flushing box, head |
| cleaner, cap assembly |
Electrical Requirements |
|
Voltage: | 120 V (90 to 264 V) |
Frequency: | 50 to 60 Hz |
Current: | 1.4 - 0.7A |
Power consumption: | Approx. 140W (operating) |
| >29W (Standby) Energy Star compliant |
Product/Accessories Part Numbers |
|
|
EPSON Stylus Pro 10000 Print Engine w/Archival Ink | C362111ARC | |
EPSON Stylus Pro 10000 Print Engine w/Photographic Dye | C362111DYE | |
Internal 10/100 BaseT |
| C823632A |
Additional |
| EPP10B1 |
Additional |
| EPP10B2 |
Automatic |
| C815172 |
Replacement 44" |
| C815121 |
Paper Roller Spindle (High Tension) — 2" |
| C811134 |
Paper Roller Spindle (High Tension) — 3" |
| C811122 |
Replacement Media Cutter Blade |
| C815131 |
Manual Media Cutting System |
| C815182 |
Replacement Manual Cutting Blade |
| C815192 |
EPSON Ink Technology | Photo Dye | Archival |
Black ink cartridge | T499201 | T511201 |
Yellow ink cartridge | T500201 | T512201 |
Magenta ink cartridge | T501201 | T513201 |
Cyan ink cartridge | T502201 | T514201 |
Light Magenta ink cartridge | T503201 | T515201 |
Light Cyan ink cartridge | T504201 | T516201 |
E Based upon print engine speed only. Total throughput times depend upon front end RIP, file size, printer resolution, ink coverage, networking, etc.
Epson America, Inc.: 3840 Kilroy Airport Way, Long Beach, CA 90806
Epson Canada, Ltd.: 550 McNicoll, Willowdale, Ontario M2H 2E1
Epson Latin America: 6303 Blue Lagoon Drive, Miami, FL 33126
Internet Website: www.prographics.epson.com.
Specifications and terms are subject to change without notice. EPSON and EPSON Stylus are registered trademarks of Seiko Epson Corporation. EPSON Archival, Micro Piezo and DX3 are trademarks of Epson America, Inc. All other product brand names are trademarks and/or registered trademarks of their respective companies. EPSON disclaims any and all rights in these trademarks. As an ENERGY STAR Partner, Epson America Inc. has determined that this prod- uct meets the Energy Star guidelines for energy efficiency. © Epson America, Inc. 2001. 04/01 MARK
