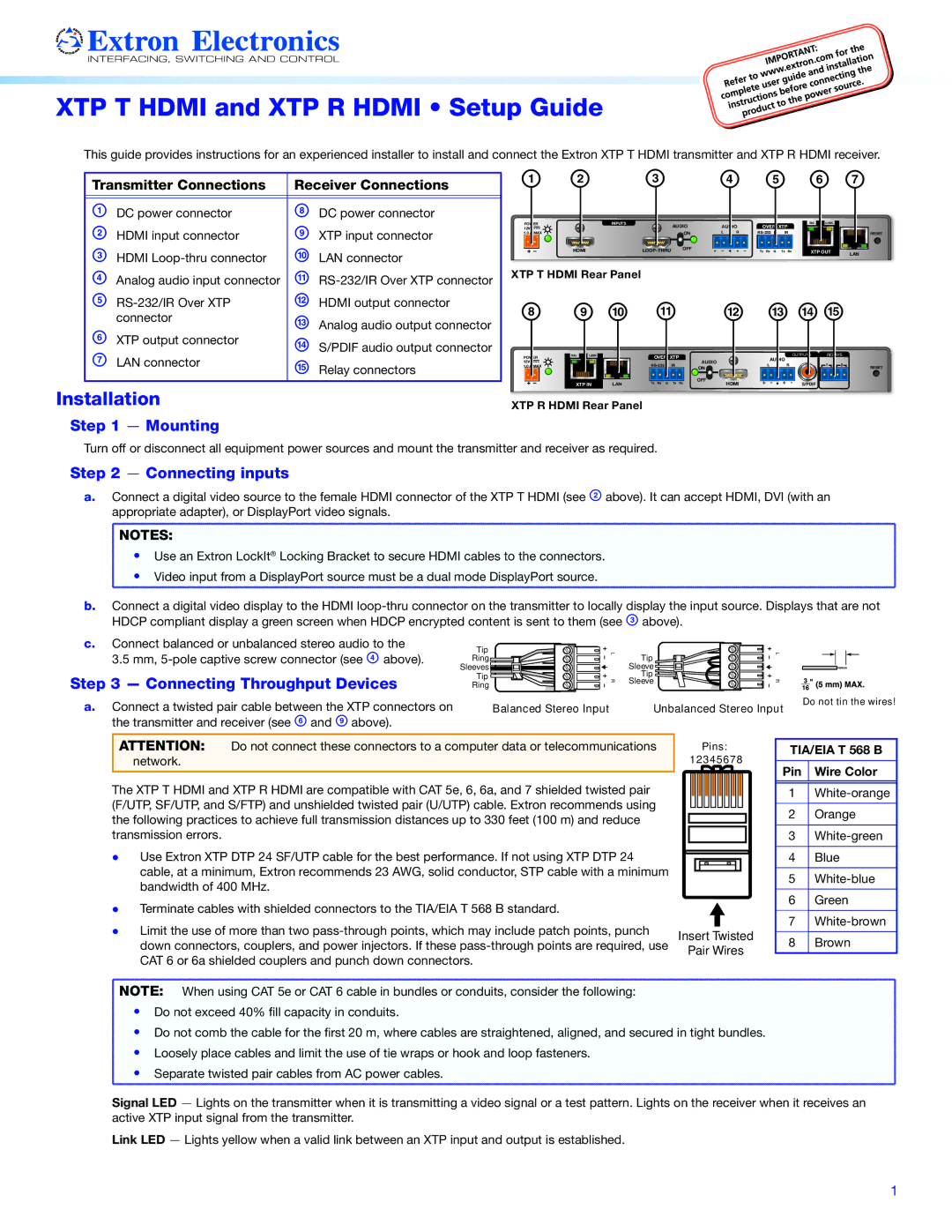

XTP T HDMI and XTP R HDMI • Setup Guide

This guide provides instructions for an experienced installer to install and connect the Extron XTP T HDMI transmitter and XTP R HDMI receiver.

Transmitter Connections	Receiver Connections
A DC power connector	H DC power connector
B HDMI input connector	I XTP input connector
C HDMI Loop-thru connector	J LAN connector

DAnalog audio input connector K RS-232/IR Over XTP connector

E RS-232/IR Over XTP	L HDMI output connector
connector	M Analog audio output connector
F XTP output connector
	N S/PDIF audio output connector
G LAN connector
	O Relay connectors

Installation

Step 1 — Mounting

a	b	c	d	e	f g
	INPUTS
POWER		AUDIO	AUDIO	OVER XTP	SIG	LINK
12V
1.0 A MAX		ON	L R	RS-232 IR			RESET

HDMI

LOOP-THRU

OFF

+

−

+

−

Tx

Rx

G

Tx

Rx

XTP OUT

LAN

XTP T HDMI Rear Panel

h i j k l m n o

POWER

SIG

LINK

OVER XTP

AUDIO

OUTPUTS

RELAYS

AUDIO

12V

RS-232

IR

L

R

1

2

1.0 A MAX

ON

RESET

XTP IN

LAN

Tx Rx

G

Tx

Rx

OFF

HDMI

+

-

+

-

S/PDIF

XTP R HDMI Rear Panel

Turn off or disconnect all equipment power sources and mount the transmitter and receiver as required.

Step 2 — Connecting inputs

a.Connect a digital video source to the female HDMI connector of the XTP T HDMI (see B above). It can accept HDMI, DVI (with an appropriate adapter), or DisplayPort video signals.

NOTES:

• Use an Extron LockIt® Locking Bracket to secure HDMI cables to the connectors.

• Video input from a DisplayPort source must be a dual mode DisplayPort source.

b.Connect a digital video display to the HDMI loop-thru connector on the transmitter to locally display the input source. Displays that are not HDCP compliant display a green screen when HDCP encrypted content is sent to them (see C above).

c.	Connect balanced or unbalanced stereo audio to the	Tip
	3.5 mm, 5-pole captive screw connector (see D above).		L
		Ring
		Sleeves

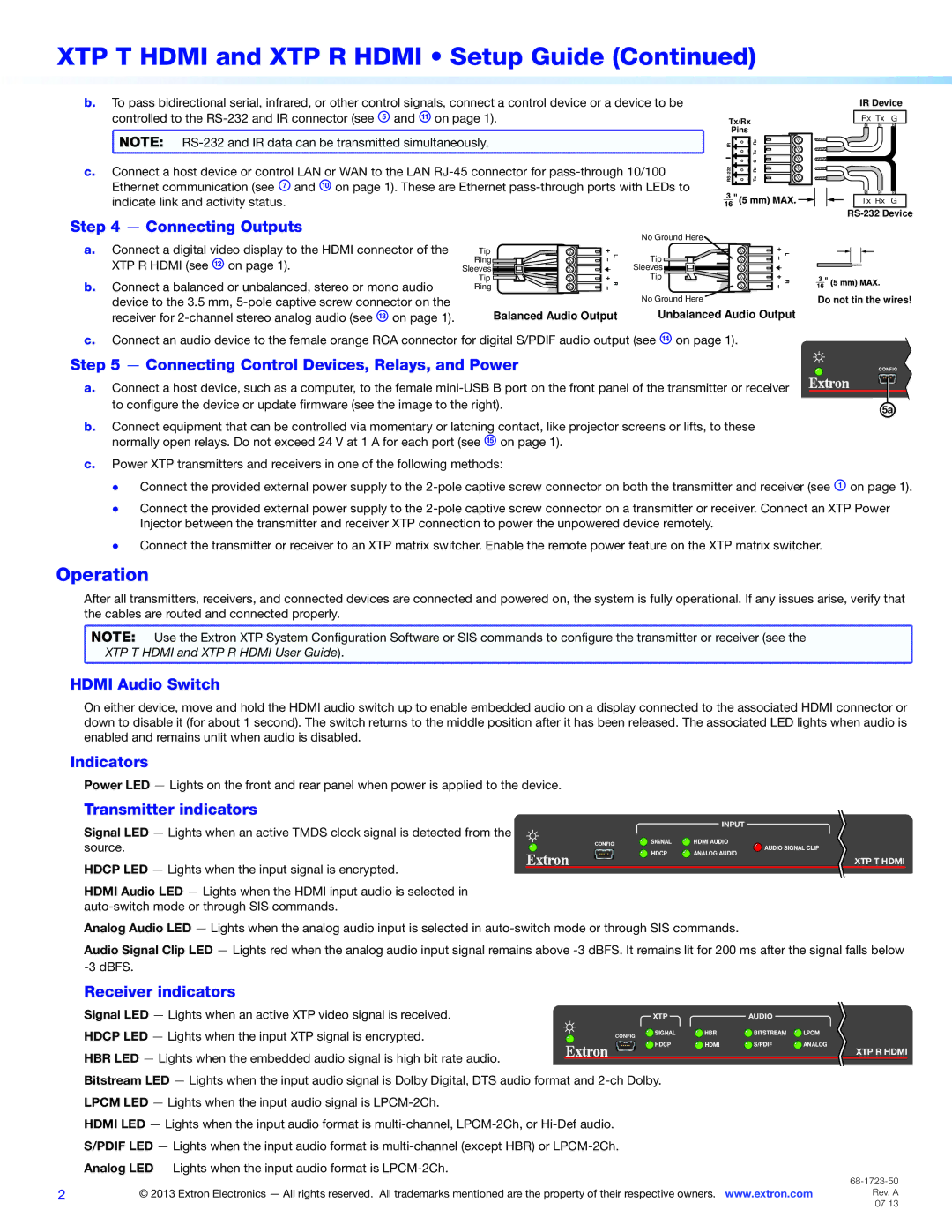

Step 3 — Connecting Throughput Devices		Tip	R
		Ring

a. Connect a twisted pair cable between the XTP connectors on	Balanced Stereo Input
the transmitter and receiver (see F and I above).

Tip	L
Sleeve
Tip
Sleeve	R

Unbalanced Stereo Input Do not tin the wires!

ATTENTION:	Do not connect these connectors to a computer data or telecommunications	Pins:
network.		12345678

TIA/EIA T 568 B

Pin Wire Color

The XTP T HDMI and XTP R HDMI are compatible with CAT 5e, 6, 6a, and 7 shielded twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cable. Extron recommends using the following practices to achieve full transmission distances up to 330 feet (100 m) and reduce transmission errors.

zz Use Extron XTP DTP 24 SF/UTP cable for the best performance. If not using XTP DTP 24 cable, at a minimum, Extron recommends 23 AWG, solid conductor, STP cable with a minimum bandwidth of 400 MHz.

zz Terminate cables with shielded connectors to the TIA/EIA T 568 B standard.

zz Limit the use of more than two pass-through points, which may include patch points, punch down connectors, couplers, and power injectors. If these pass-through points are required, use CAT 6 or 6a shielded couplers and punch down connectors.

Insert Twisted

Pair Wires

1White-orange

2Orange

3White-green

4Blue

5White-blue

6Green

7White-brown

8Brown

NOTE: When using CAT 5e or CAT 6 cable in bundles or conduits, consider the following:

• Do not exceed 40% fill capacity in conduits.

• Do not comb the cable for the first 20 m, where cables are straightened, aligned, and secured in tight bundles.

• Loosely place cables and limit the use of tie wraps or hook and loop fasteners.

• Separate twisted pair cables from AC power cables.

Signal LED — Lights on the transmitter when it is transmitting a video signal or a test pattern. Lights on the receiver when it receives an active XTP input signal from the transmitter.

Link LED — Lights yellow when a valid link between an XTP input and output is established.
