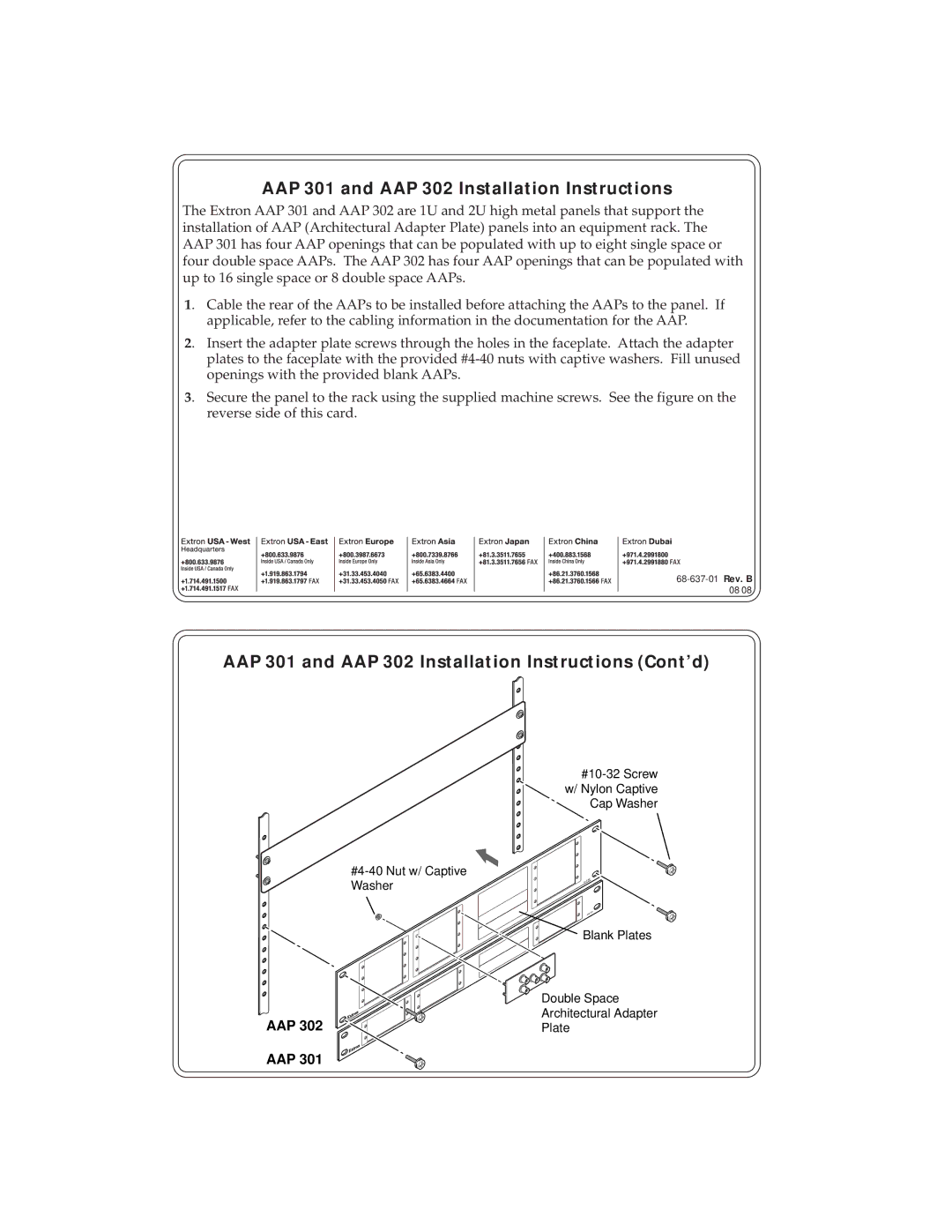

AAP 301 and AAP 302 Installation Instructions

The Extron AAP 301 and AAP 302 are 1U and 2U high metal panels that support the installation of AAP (Architectural Adapter Plate) panels into an equipment rack. The AAP 301 has four AAP openings that can be populated with up to eight single space or four double space AAPs. The AAP 302 has four AAP openings that can be populated with up to 16 single space or 8 double space AAPs.

1. Cable the rear of the AAPs to be installed before attaching the AAPs to the panel. If applicable, refer to the cabling information in the documentation for the AAP.

2. Insert the adapter plate screws through the holes in the faceplate. Attach the adapter plates to the faceplate with the provided #4-40 nuts with captive washers. Fill unused openings with the provided blank AAPs.

3. Secure the panel to the rack using the supplied machine screws. See the figure on the reverse side of this card.

68-637-01 Rev. B

08 08

AAP 301 and AAP 302 Installation Instructions (Cont’d)

#4-40 Nut w/ Captive Washer

AAP 302

#10-32 Screw w/ Nylon Captive Cap Washer

AAP

302



AAP

301



Blank Plates

Double Space

Architectural Adapter

Plate

AAP 301

Page 1
