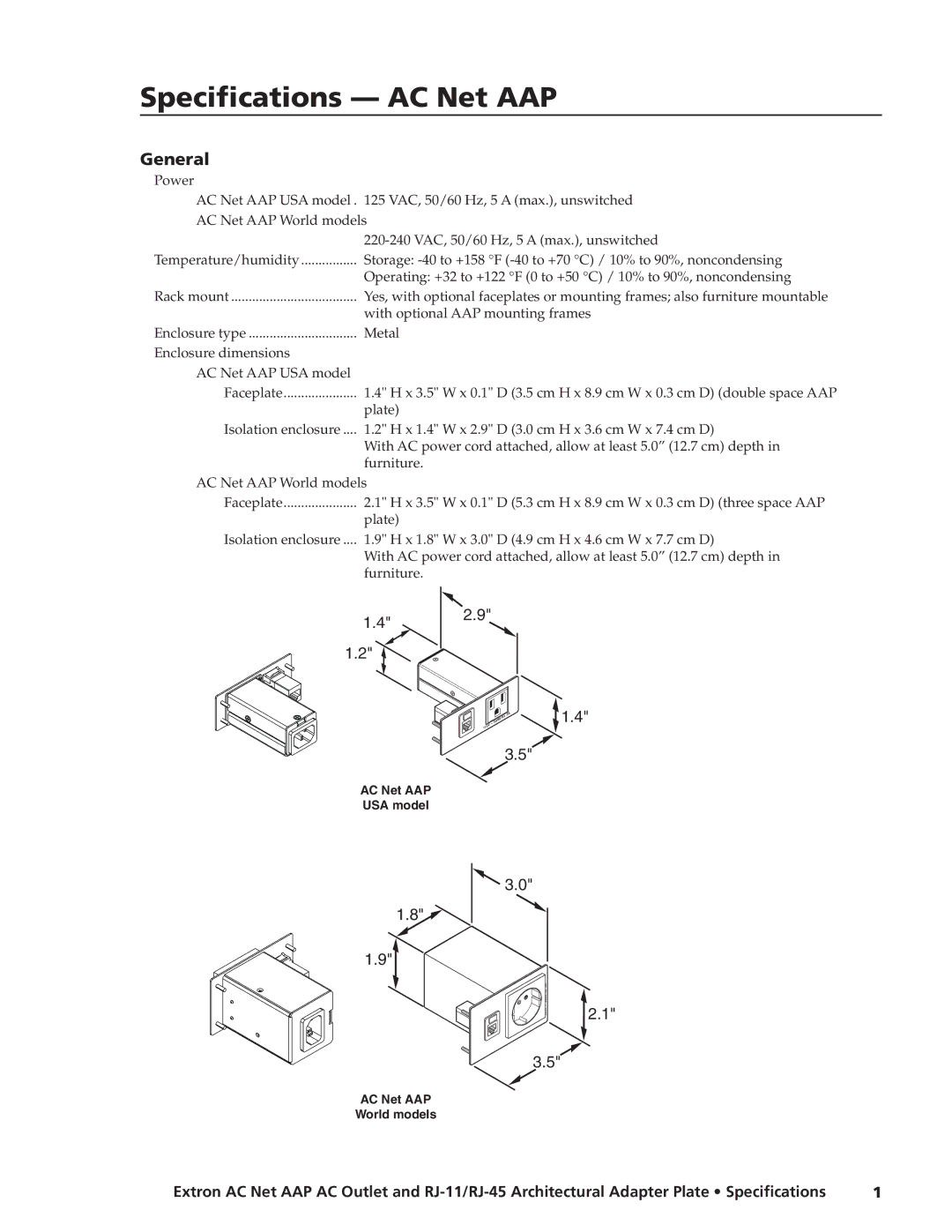

Specifications — AC Net AAP

General

Power

AC Net AAP USA model � 125 VAC, 50/60 Hz, 5 A (max.), unswitched AC Net AAP World models

220-240 VAC, 50/60 Hz, 5 A (max.), unswitched

Temperature/humidity���������������� Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Rack mount ������������������������������������ Yes, with optional faceplates or mounting frames; also furniture mountable with optional AAP mounting frames

Enclosure type ������������������������������� Metal

Enclosure dimensions

AC Net AAP USA model

Faceplate��������������������� 1.4" H x 3.5" W x 0.1" D (3.5 cm H x 8.9 cm W x 0.3 cm D) (double space AAP plate)

Isolation enclosure ���� 1.2" H x 1.4" W x 2.9" D (3.0 cm H x 3.6 cm W x 7.4 cm D)

With AC power cord attached, allow at least 5.0” (12.7 cm) depth in furniture.

AC Net AAP World models

Faceplate��������������������� 2.1" H x 3.5" W x 0.1" D (5.3 cm H x 8.9 cm W x 0.3 cm D) (three space AAP plate)

Isolation enclosure ���� 1.9" H x 1.8" W x 3.0" D (4.9 cm H x 4.6 cm W x 7.7 cm D)

With AC power cord attached, allow at least 5.0” (12.7 cm) depth in furniture.

1.4"

1.2"

2.9"

1.4"

3.5"

AC Net AAP USA model

1.8"

1.9"

3.0"

2.1"

3.5"

AC Net AAP

World models

Extron AC Net AAP AC Outlet and RJ-11/RJ-45 Architectural Adapter Plate • Specifications 1
