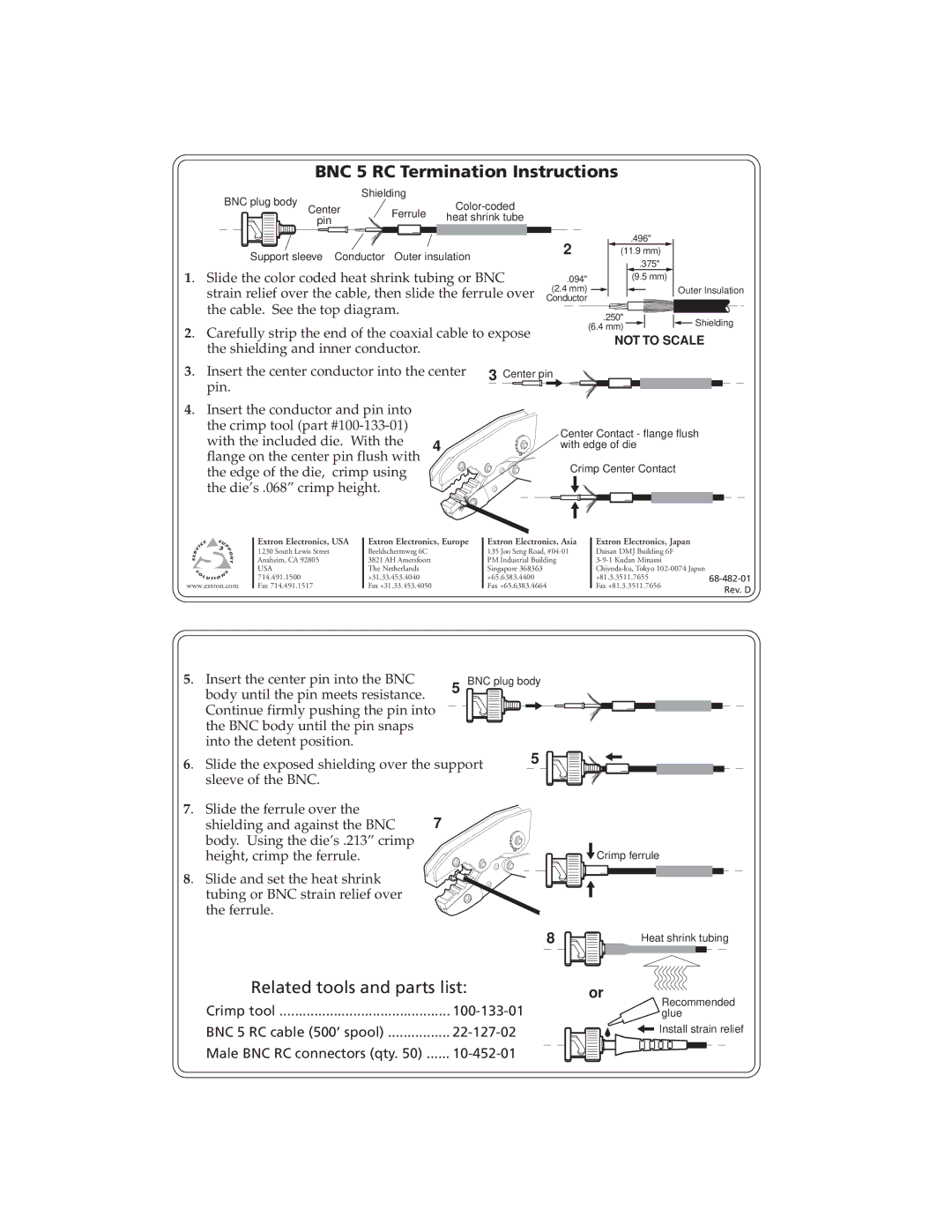

BNC 5 RC Termination Instructions

BNC 5 RC Termination Instructions

Shielding

BNC plug body

Center

Ferrule

Color-coded



heat shrink tube



pin











Support sleeve Conductor Outer insulation

1. Slide the color coded heat shrink tubing or BNC strain relief over the cable, then slide the ferrule over the cable. See the top diagram.

2. Carefully strip the end of the coaxial cable to expose the shielding and inner conductor.

2

.496"

(11.9 mm)



.375"

.094"

(9.5 mm)

(2.4 mm)

Outer Insulation

Conductor



.250"

Shielding

(6.4 mm)



NOT TO SCALE

3. Insert the center conductor into the center pin.

4. Insert the conductor and pin into the crimp tool (part #100-133-01) with the included die. With the 4 flange on the center pin flush with the edge of the die, crimp using

the die’s .068” crimp height.

3 Center pin

Center Contact - flange flush with edge of die

Crimp Center Contact





Extron Electronics, USA



Extron Electronics, Europe





1230 South Lewis Street



Beeldschermweg 6C





Anaheim, CA 92805



3821 AH Amersfoort





USA



The Netherlands

www.extron.com



714.491.1500



+31.33.453.4040



Fax 714.491.1517



Fax +31.33.453.4050





Extron Electronics, Asia

135 Joo Seng Road, #04-01 PM Industrial Building Singapore 368363 +65.6383.4400

Fax +65.6383.4664

Extron Electronics, Japan

Daisan DMJ Building 6F 3-9-1 Kudan Minami Chiyoda-ku, Tokyo 102-0074 Japan +81.3.3511.7655

Fax +81.3.3511.7656

68-482-01 Rev. D

5. Insert the center pin into the BNC

5 BNC plug body

body until the pin meets resistance.























Continue firmly pushing the pin into



































































the BNC body until the pin snaps



































































into the detent position.























6. Slide the exposed shielding over the support

5



sleeve of the BNC.





7. Slide the ferrule over the

7



shielding and against the BNC



body. Using the die’s .213” crimp





height, crimp the ferrule.





8. Slide and set the heat shrink tubing or BNC strain relief over the ferrule.

8

Related tools and parts list:

Crimp tool

100-133-01

BNC 5 RC cable (500’ spool)

22-127-02

Male BNC RC connectors (qty. 50)

10-452-01

Related tools and parts list: Crimp ferrule

Heat shrink tubing

or

Recommended glue

Crimp tool Install strain relief
