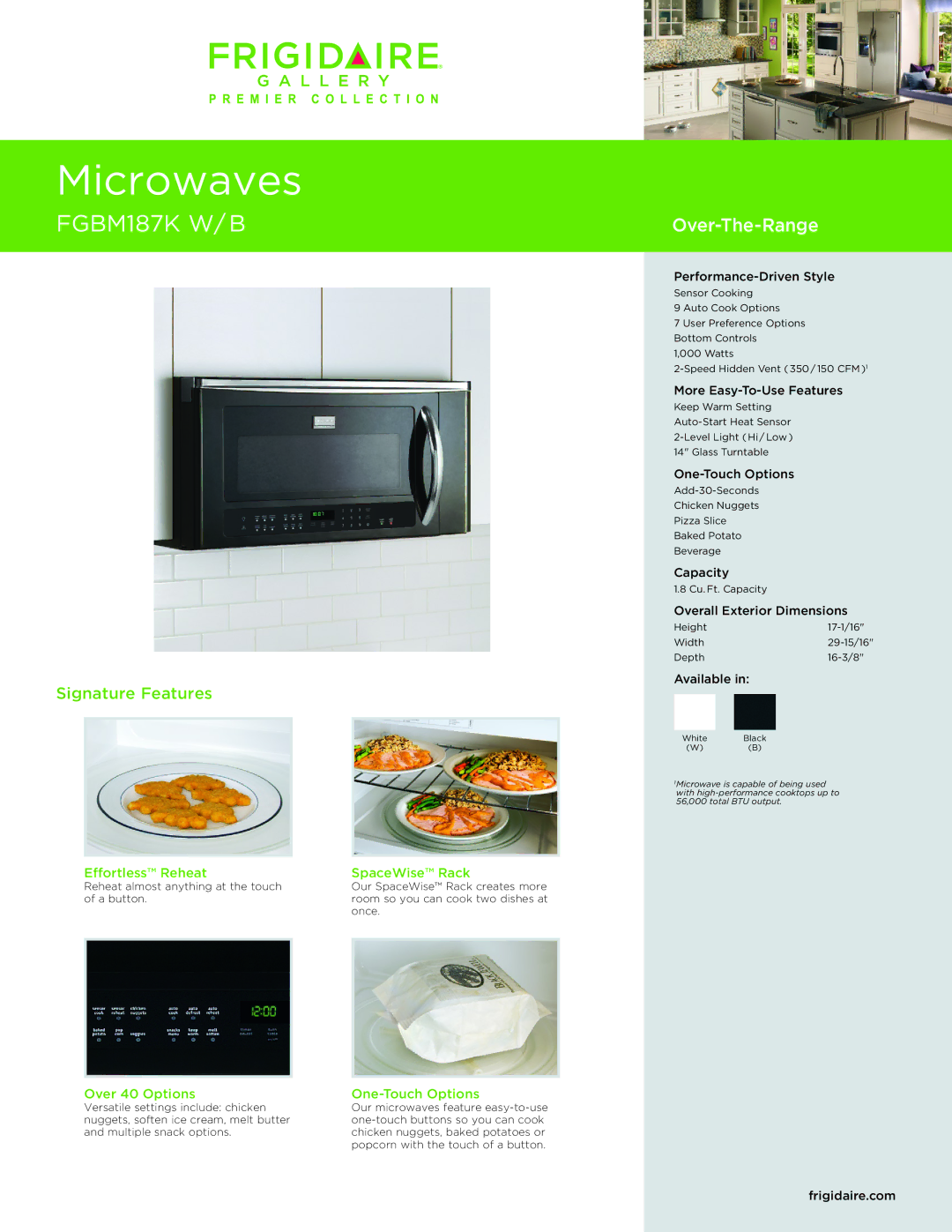

Microwaves

FGBM187K W/ B Over-The-Range

Microwave Specifications

Product Shipping Weight (approx.) – 70 Lbs.

Voltage Rating – 120V / 60 Hz / 15 Amps

Connected Load (kW Rating) @ 120 Volts = 1.65 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.)

Amps @ 120 Volts = 14.3 Amps

Always consult local and national electric codes.

Grounded outlet should be located in cabinet above, with hole in base to route power cord. Carefully follow top template instructions for power cord clearance when installing beneath smooth, flat cabinets.

Microwave’s exhaust ventilation system is preset to recirculate air inside with no ducting system required. Exhausting air outside is optional, using either vertical or horizontal ducting system. (Refer to Ducted Option Specifications for outside ventilation.)

For safe and proper installation, microwave MUST be mounted to BOTH a top cabinet AND a wall, and connected to at least one wall stud. Can NOT be installed in island or peninsula cabinet arrangements.

Cabinet bottom MUST be level to insure proper installation.

Cabinet MUST be capable of supporting a total load of 110 lbs.

Filler blocks recommended for installation when cabinet front hangs below recessed bottom shelf.

Minimum distance of 30" required from cooking surface to bottom edge of top cabinet.

Minimum distance of 66" required from floor to top of microwave.

Opening between cabinets MUST be 30" wide and free of obstructions. For openings up to 36" wide, order optional 36" Filler Panel Kit to fill in gap between unit and cabinets.

Allow 26" minimum clearance for 90° door swing.

Ducted Option Specifications

For outside ventilation.

Exhaust duct adapter will be needed for outside ventilation, to mate with standard 3-1/4" x 10" rectangular duct. If round duct required, rectangular-to-round transition adapter will be needed with no less than 6" diameter.

For most efficient airflow exhaust, use a straight run or as few elbows as possible with a maximum duct length of 3-1/4" x 10" rectangular or 6" diameter round duct, not to exceed 140 equivalent feet.

For horizontal installation, be sure to allow enough space between wall studs to accommodate exhaust.

Refer to installation instructions on web for detailed duct preparation and converting exhaust vent blower system for exterior exhaust ventilation.

Note: For planning purposes only. Refer to Product Installation Guide on the web at frigidaire.com for detailed instructions.

Optional Accessories

36" White Filler Panel Kit – (PN # MWFILKTWH).

36" Black Filler Panel Kit – (PN # MWFILKTBK).

FRIGIDAIRE®

USA 250 Bobby Jones Expressway Martinez, GA 30907 1-800-FRIGIDAIRE frigidaire.com

Specifications

CANADA 5855 Terry Fox Way Mississauga, ON L5V 3E4 1-800-265-8352 frigidaire.ca

subject to change.

FGBM187K 05/09

© 2009 Electrolux Home Products, Inc.

Printed in the U.S.A.

Page 2
Image 2
Frigidaire FGBM187K W/B dimensions Microwave Specifications, Ducted Option Specifications, Optional Accessories

FGBM187K W/B specifications

The Frigidaire FGBM187K W/B is a versatile and efficient over-the-range microwave designed to elevate your kitchen experience. With its sleek appearance and user-friendly features, it combines functionality with modern convenience. This microwave is particularly valued for its space-saving design, allowing homeowners to maximize kitchen space while adding a stylish touch.

One of the standout features of the FGBM187K W/B is its 1.8 cubic feet capacity, providing ample room for cooking and heating a variety of meals. Its powerful 1000 watts of cooking power ensures quick and even heating, making meal preparation a breeze. This model includes a variety of cooking settings, such as popcorn, reheat, and defrost, designed to accommodate different culinary needs.

The microwave is equipped with a sensor cooking technology that automatically adjusts cooking times for optimal results. This feature eliminates the guesswork from microwave cooking, ensuring that food is heated thoroughly and evenly. The unit also includes multiple power levels, allowing you to customize cooking according to specific needs.

Another notable technology is the easy-to-clean interior with a smudge-proof stainless steel finish. This ensures that the microwave maintains its sleek look while minimizing fingerprints and smudges, making maintenance a more manageable task. The included turntable is also designed to rotate food for even cooking, further enhancing the efficiency of this appliance.

In terms of safety and convenience, the Frigidaire FGBM187K W/B incorporates a child lock option, providing peace of mind for households with young ones. The intuitive control panel and bright LED display make navigation simple, allowing users to access various functions with ease.

Additionally, the Frigidaire FGBM187K W/B features a built-in ventilation system with two fan speeds, helping to eliminate smoke, steam, and odors from your kitchen while ensuring a fresh cooking environment. The unit can be configured to exhaust air externally or recirculate it internally, accommodating different kitchen layouts and preferences.

Overall, the Frigidaire FGBM187K W/B is an excellent choice for those seeking a reliable, efficient, and stylish over-the-range microwave that offers a blend of advanced technologies and user-friendly features. Its characteristics make it a valuable addition to any modern kitchen.
