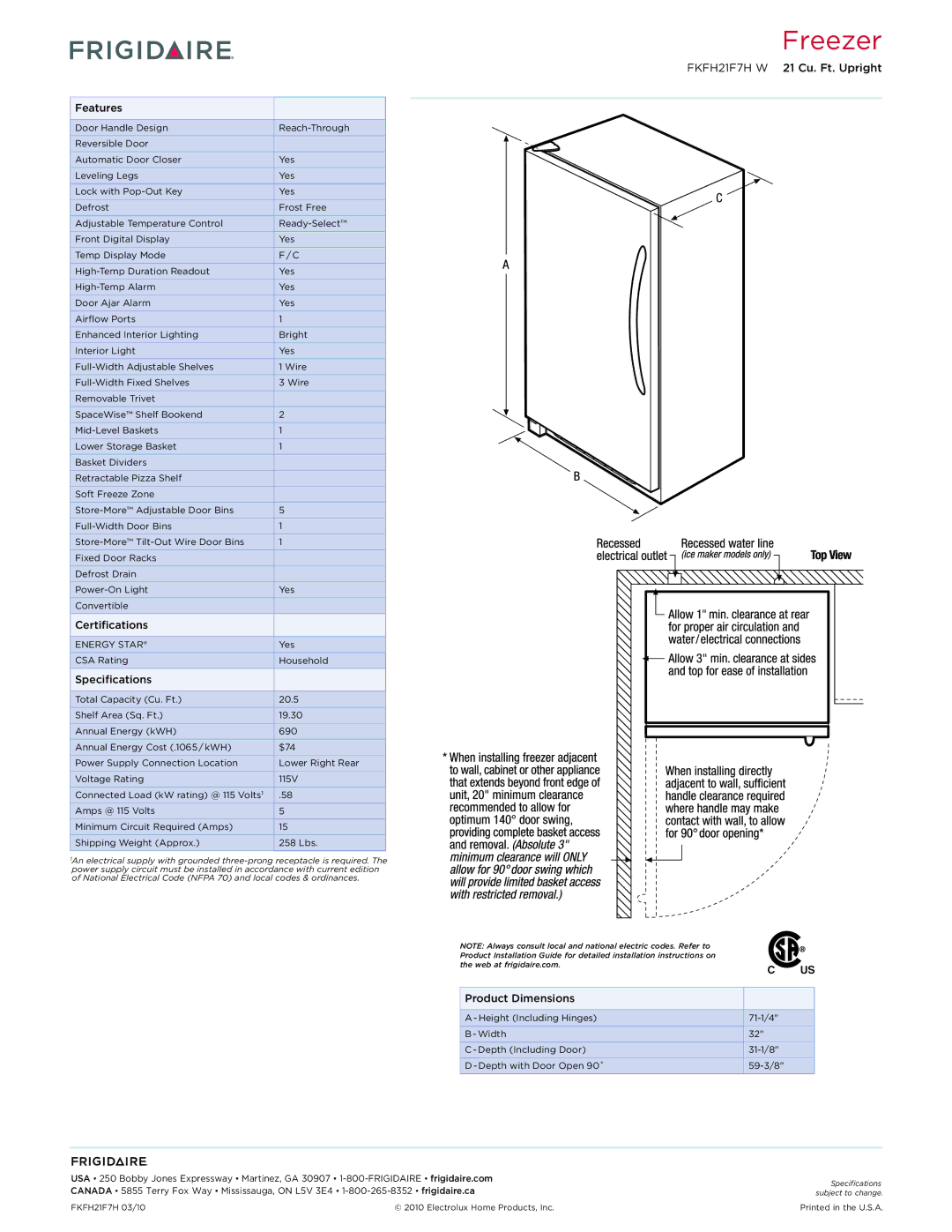

Frigidaire dimensions Freezer, FKFH21F7H W 21 Cu. Ft. Upright

Features
Door Handle Design	Reach-Through
Reversible Door
Automatic Door Closer	Yes
Leveling Legs	Yes
Lock with Pop-Out Key	Yes
Defrost	Frost Free
Adjustable Temperature Control	Ready-Select™
Front Digital Display	Yes
Temp Display Mode	F / C
High-Temp Duration Readout	Yes
High-Temp Alarm	Yes
Door Ajar Alarm	Yes
Airflow Ports	1
Enhanced Interior Lighting	Bright
Interior Light	Yes
Full-Width Adjustable Shelves	1 Wire
Full-Width Fixed Shelves	3 Wire
Removable Trivet
SpaceWise™ Shelf Bookend	2
Mid-Level Baskets	1
Lower Storage Basket	1
Basket Dividers
Retractable Pizza Shelf
Soft Freeze Zone
Store-More™ Adjustable Door Bins	5
Full-Width Door Bins	1
Store-More™ Tilt-Out Wire Door Bins	1
Fixed Door Racks
Defrost Drain
Power-On Light	Yes
Convertible
Certifications
ENERGY STAR®	Yes
CSA Rating	Household
Specifications
Total Capacity (Cu. Ft.)	20.5
Shelf Area (Sq. Ft.)	19.30
Annual Energy (kWH)	690
Annual Energy Cost (.1065 / kWH)	$74
Power Supply Connection Location	Lower Right Rear
Voltage Rating	115V
Connected Load (kW rating) @ 115 Volts1	.58
Amps @ 115 Volts	5
Minimum Circuit Required (Amps)	15
Shipping Weight (Approx.)	258 Lbs.

1An electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed in accordance with current edition of National Electrical Code (NFPA 70) and local codes & ordinances.

Freezer

FKFH21F7H W 21 Cu. Ft. Upright

NOTE: Always consult local and national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Product Dimensions
A - Height (Including Hinges)	71-1/4"
B - Width	32"
C - Depth (Including Door)	31-1/8"
D - Depth with Door Open 90˚	59-3/8"

USA • 250 Bobby Jones Expressway • Martinez, GA 30907	• 1-800-FRIGIDAIRE • frigidaire.com	Specifications
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4	• 1-800-265-8352 • frigidaire.ca
		subject to change.

FKFH21F7H 03/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
