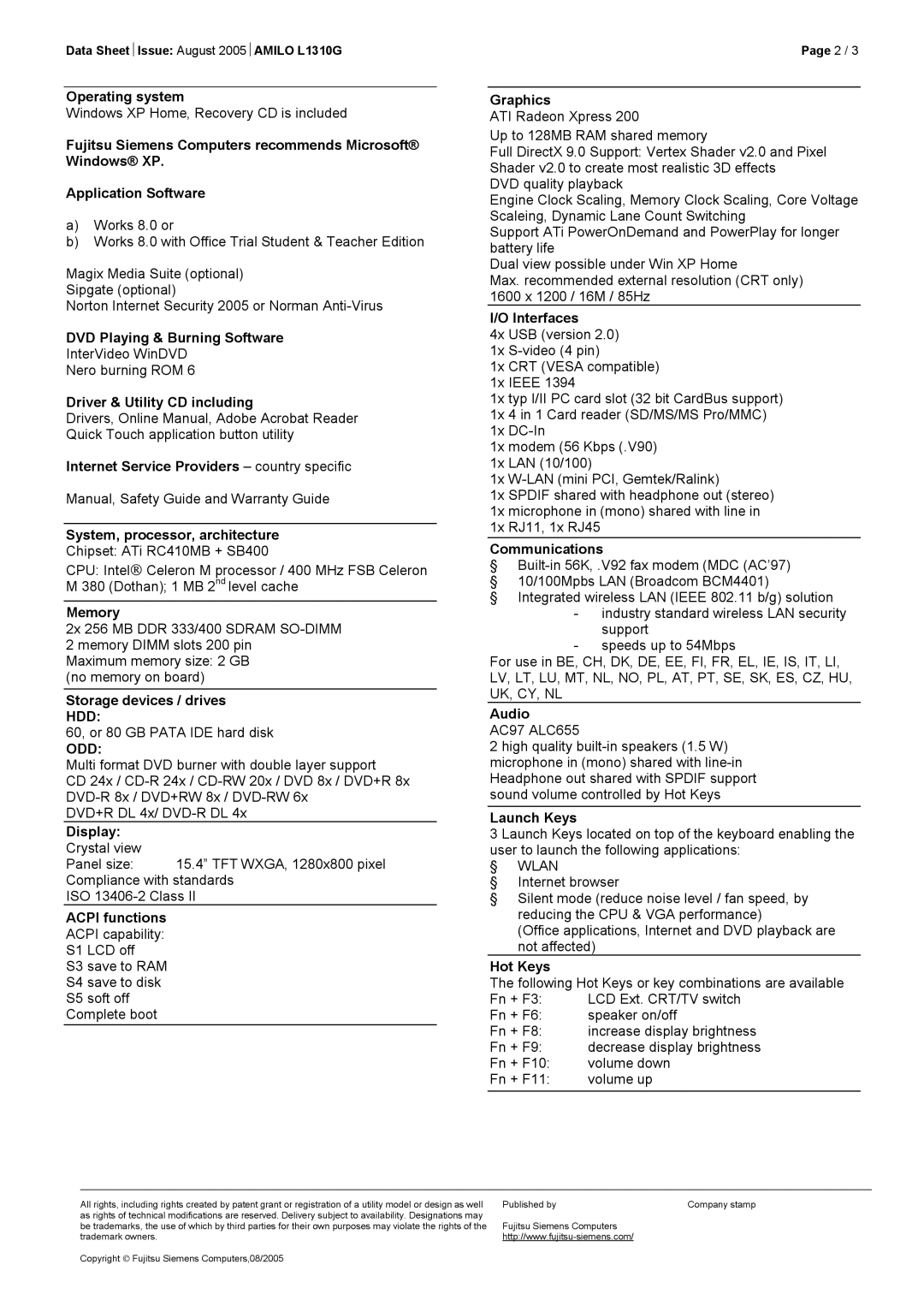

Data Sheet½Issue: August 2005½AMILO L1310G
Operating system
Windows XP Home, Recovery CD is included
Fujitsu Siemens Computers recommends Microsoft® Windows® XP.
Application Software
a)Works 8.0 or
b)Works 8.0 with Office Trial Student & Teacher Edition
Magix Media Suite (optional) Sipgate (optional)
Norton Internet Security 2005 or Norman
DVD Playing & Burning Software
InterVideo WinDVD
Nero burning ROM 6
Driver & Utility CD including
Drivers, Online Manual, Adobe Acrobat Reader Quick Touch application button utility
Internet Service Providers – country specific
Manual, Safety Guide and Warranty Guide
System, processor, architecture
Chipset: ATi RC410MB + SB400
CPU: Intel® Celeron M processor / 400 MHz FSB Celeron M 380 (Dothan); 1 MB 2nd level cache
Memory
2x 256 MB DDR 333/400 SDRAM
2 memory DIMM slots 200 pin Maximum memory size: 2 GB (no memory on board)
Storage devices / drives
HDD:
60, or 80 GB PATA IDE hard disk
ODD:
Multi format DVD burner with double layer support
CD 24x /
DVD+R DL 4x/
Display: Crystal view
Panel size: 15.4” TFT WXGA, 1280x800 pixel Compliance with standards
ISO
ACPI functions
ACPI capability:
S1 LCD off
S3 save to RAM
S4 save to disk
S5 soft off
Complete boot
Page 2 / 3
Graphics
ATI Radeon Xpress 200
Up to 128MB RAM shared memory
Full DirectX 9.0 Support: Vertex Shader v2.0 and Pixel Shader v2.0 to create most realistic 3D effects
DVD quality playback
Engine Clock Scaling, Memory Clock Scaling, Core Voltage Scaleing, Dynamic Lane Count Switching
Support ATi PowerOnDemand and PowerPlay for longer battery life
Dual view possible under Win XP Home
Max. recommended external resolution (CRT only)
1600 x 1200 / 16M / 85Hz
I/O Interfaces
4x USB (version 2.0)
1x
1x CRT (VESA compatible)
1x IEEE 1394
1x typ I/II PC card slot (32 bit CardBus support) 1x 4 in 1 Card reader (SD/MS/MS Pro/MMC)
1x
1x modem (56 Kbps (.V90)
1x LAN (10/100)
1x
1x SPDIF shared with headphone out (stereo)
1x microphone in (mono) shared with line in
1x RJ11, 1x RJ45
Communications
§
§10/100Mpbs LAN (Broadcom BCM4401)
§Integrated wireless LAN (IEEE 802.11 b/g) solution
-industry standard wireless LAN security support
-speeds up to 54Mbps
For use in BE, CH, DK, DE, EE, FI, FR, EL, IE, IS, IT, LI, LV, LT, LU, MT, NL, NO, PL, AT, PT, SE, SK, ES, CZ, HU, UK, CY, NL
Audio
AC97 ALC655
2high quality
Launch Keys
3 Launch Keys located on top of the keyboard enabling the user to launch the following applications:
§WLAN
§Internet browser
§Silent mode (reduce noise level / fan speed, by reducing the CPU & VGA performance)
(Office applications, Internet and DVD playback are not affected)
Hot Keys
The following Hot Keys or key combinations are available
Fn + F3: | LCD Ext. CRT/TV switch |
Fn + F6: | speaker on/off |
Fn + F8: | increase display brightness |
Fn + F9: | decrease display brightness |
Fn + F10: | volume down |
Fn + F11: | volume up |
