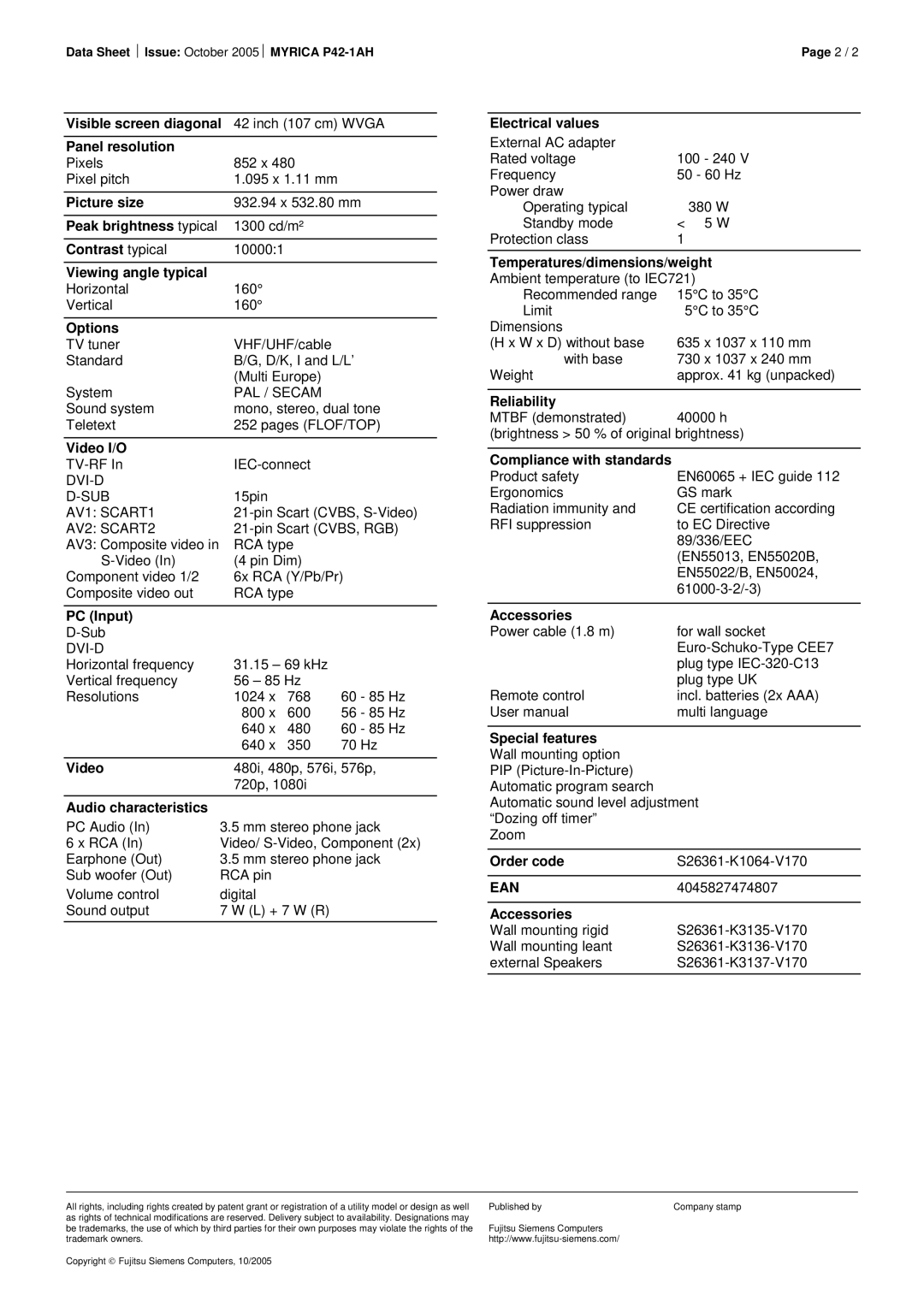

Data Sheet ⏐ Issue: October 2005⏐ MYRICA
Visible screen diagonal 42 inch (107 cm) WVGA
Panel resolution |
|
|
|
Pixels | 852 x 480 |
| |
Pixel pitch | 1.095 x 1.11 mm |
| |
|
| ||
Picture size | 932.94 x 532.80 mm | ||
|
|
| |
Peak brightness typical | 1300 cd/m² |
| |
|
|
|
|
Contrast typical | 10000:1 |
|
|
|
|
|
|
Viewing angle typical |
|
|
|
Horizontal | 160° |
|
|
Vertical | 160° |
|
|
|
|
|
|
Options |
|
|
|
TV tuner | VHF/UHF/cable |
| |
Standard | B/G, D/K, I and L/L’ | ||
| (Multi Europe) |
| |
System | PAL / SECAM |
| |
Sound system | mono, stereo, dual tone | ||
Teletext | 252 pages (FLOF/TOP) | ||
|
|
|
|
Video I/O |
|
|
|
| |||
|
|
| |
15pin |
|
| |
AV1: SCART1 | |||
AV2: SCART2 | |||
AV3: Composite video in | RCA type |
| |
(4 pin Dim) |
| ||
Component video 1/2 | 6x RCA (Y/Pb/Pr) | ||
Composite video out | RCA type |
| |
PC (Input) |
|
|
|
|
|
| |
|
|
|
|
Horizontal frequency | 31.15 – 69 kHz |
| |
Vertical frequency | 56 – 85 Hz |
| |
Resolutions | 1024 x | 768 | 60 - 85 Hz |
| 800 x | 600 | 56 - 85 Hz |
| 640 x | 480 | 60 - 85 Hz |
| 640 x | 350 | 70 Hz |
|
| ||
Video | 480i, 480p, 576i, 576p, | ||
| 720p, 1080i |
| |
Audio characteristics |
|
|
|
PC Audio (In) | 3.5 mm stereo phone jack | ||
6 x RCA (In) | Video/ | ||
Earphone (Out) | 3.5 mm stereo phone jack | ||
Sub woofer (Out) | RCA pin |
|
|
Volume control | digital |
|
|
Sound output | 7 W (L) + 7 W (R) |
| |
Page 2 / 2
Electrical values |
|
External AC adapter |
|
Rated voltage | 100 - 240 V |
Frequency | 50 - 60 Hz |
Power draw |
|
Operating typical | 380 W |
Standby mode | < 5 W |
Protection class | 1 |
Temperatures/dimensions/weight
Ambient temperature (to IEC721)
Recommended range | 15°C to 35°C |
Limit | 5°C to 35°C |
Dimensions |
|
(H x W x D) without base | 635 x 1037 x 110 mm |
with base | 730 x 1037 x 240 mm |
Weight | approx. 41 kg (unpacked) |
Reliability |
|
MTBF (demonstrated) | 40000 h |
(brightness > 50 % of original brightness) | |
Compliance with standards |
|
Product safety | EN60065 + IEC guide 112 |
Ergonomics | GS mark |
Radiation immunity and | CE certification according |
RFI suppression | to EC Directive |
| 89/336/EEC |
| (EN55013, EN55020B, |
| EN55022/B, EN50024, |
| |
Accessories |
|
Power cable (1.8 m) | for wall socket |
| |
| plug type |
| plug type UK |
Remote control | incl. batteries (2x AAA) |
User manual | multi language |
Special features Wall mounting option PIP
Zoom
Order code | |
EAN | 4045827474807 |
Accessories |
|
Wall mounting rigid | |
Wall mounting leant | |
external Speakers |
|
