SUBWOOFERS

CS-SW100

CS-SW120

CP-SW100

CP-SW120





SPEAKER PARAMETERS













CS-SW100

CS-SW120

CP-SW100

CP-SW120

Peak Power (Watts)

800

1000

1000

1300

Rated Power (Watts)

200

250

250

325

Frequency Response

33Hz - 1.2kHz

27Hz -1kHz

30Hz -1.2kHz

24Hz -1kHz

Impedance



4 Ohms

4 Ohms

4 Ohms

4 Ohms

Sensitivity



87dB

88dB

88dB

89dB

Cone Material



Pressed Paper

Pressed Paper

Pressed Paper

Pressed Paper

Voice Coil Type



Round Wound

Round Wound

Round Wound

Round Wound





Copper

Copper

Copper

Copper

Mounting Depth



120mm (4-23/32”)

136mm (5-11/32”)

142mm (5-19/32”)

154mm (6 1/16”)

Mounting Diameter



228mm

277mm

228mm

277mm





(9”)

(10 15/16”)

(9”)

(10 15/16”)

INSTALLATION GUIDELINES

Ensure the audio system is turned off before making any connections to the amplifier, speakers or source unit. Failure to do so could result in permanent damage to the audio system.

When wiring the subwoofer ensure that the wire is protected from sharp objects and always use rubber grommets when wiring through metal panels. Ensure all terminals and connections are protected from the vehicle chassis and from each other as failure to do so could result in permanent damage to the audio system.

When connecting the amplifier and subwoofer ensure you connect the positive and negative output wire from the amplifier to the corresponding subwoofer terminals.

1)Ensure there is adequate clearance and depth for the subwoofer to be mounted

2)Mark out & cut the correct diameter hole

3)Drill the holes for the mounting screws

4)Insert the subwoofer and affix with the appropriate screws

www.fusionelectronics.com

Page 1
Image 1

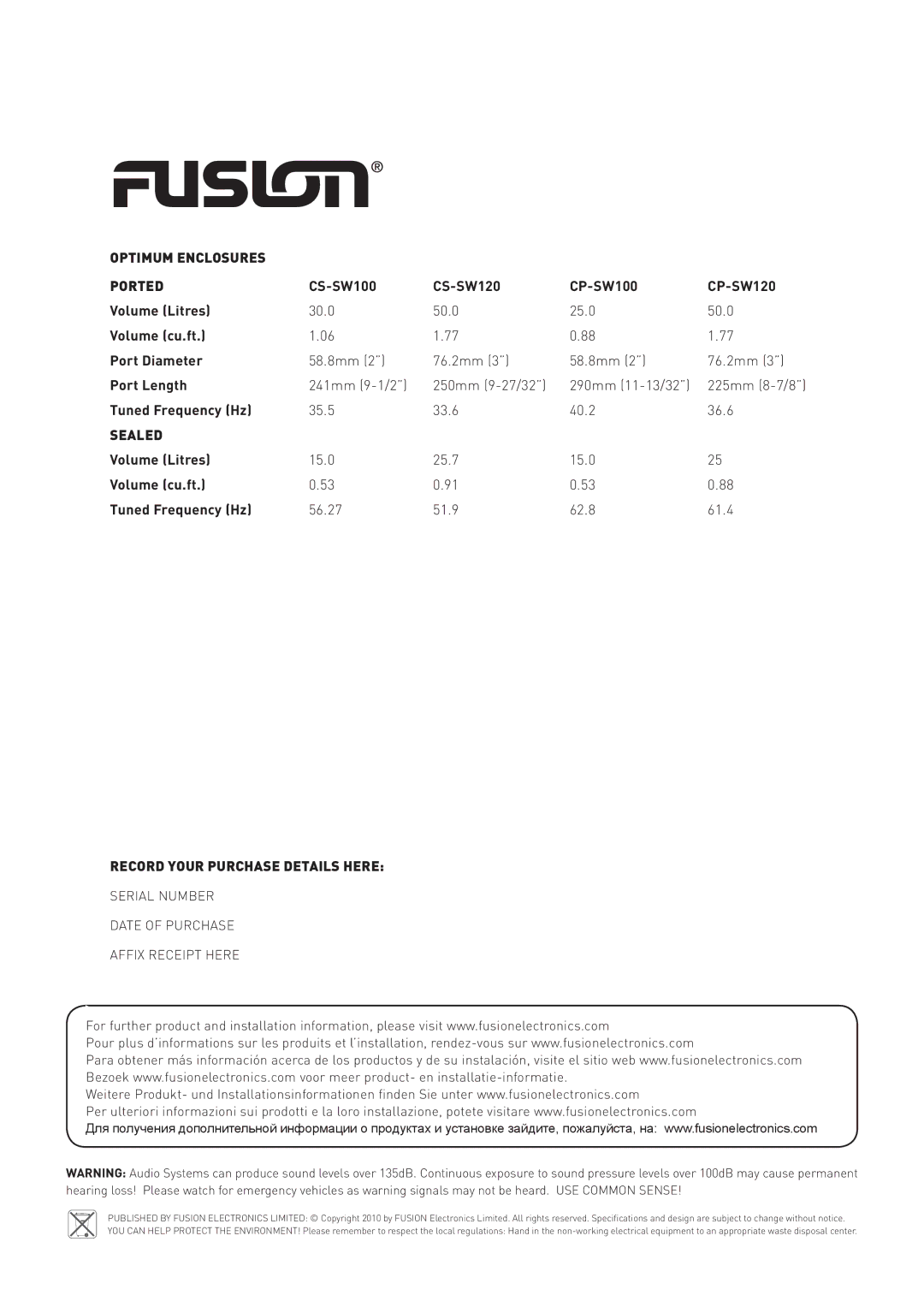

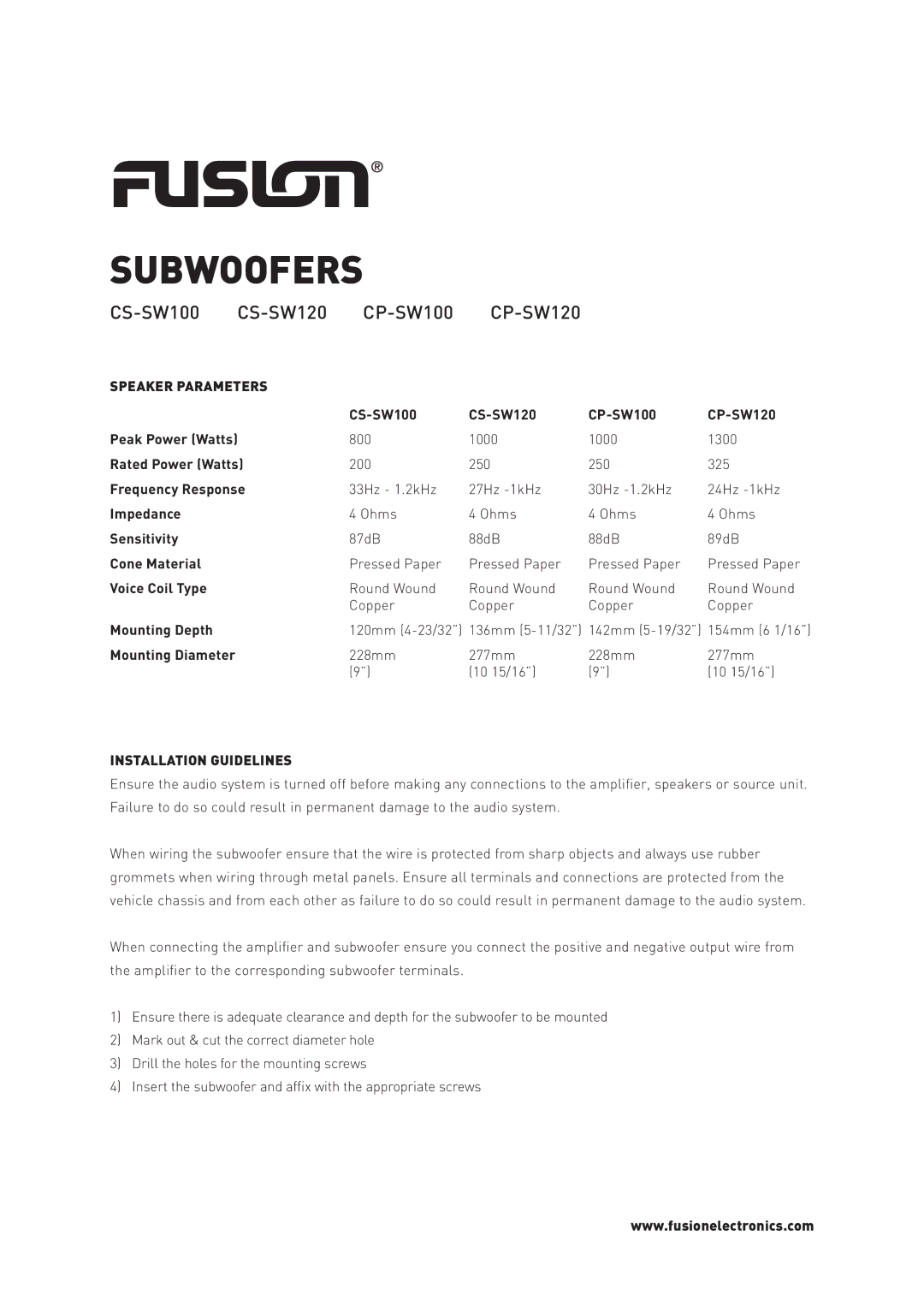

Fusion manual Subwoofers, CS-SW100 CS-SW120 CP-SW100 CP-SW120, Speaker Parameters, Installation Guidelines
