Item: _______________________

Quantity: ___________________

Project: _____________________

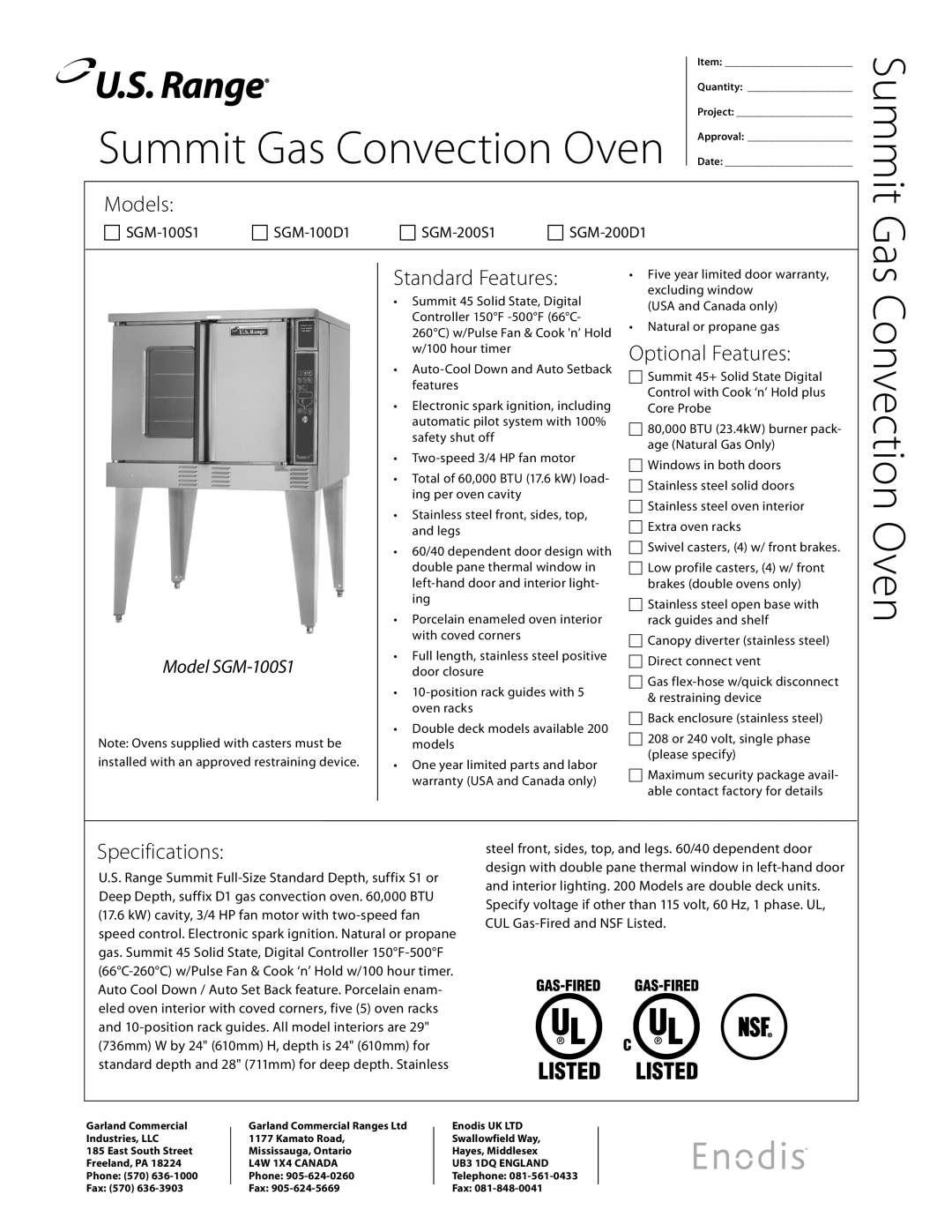

Summit Gas Convection Oven Approval: ___________________

Date: _______________________

Models:

SGM100S1 SGM100D1 SGM200S1 SGM200D1

Summit Gas

Model SGM-100S1

Note: Ovens supplied with casters must be installed with an approved restraining device.

Standard Features:

Summit 45 Solid State, Digital Controller 150°F 500°F (66°C260°C) w/Pulse Fan & Cook 'n’ Hold w/100 hour timer

AutoCool Down and Auto Setback features

Electronic spark ignition, including automatic pilot system with 100% safety shut off

Twospeed 3/4 HP fan motor

Total of 60,000 BTU (17.6 kW) loading per oven cavity

Stainless steel front, sides, top, and legs

60/40 dependent door design with double pane thermal window in lefthand door and interior lighting

Porcelain enameled oven interior with coved corners

Full length, stainless steel positive door closure

10position rack guides with 5 oven racks

Double deck models available 200 models

One year limited parts and labor warranty (USA and Canada only)

Five year limited door warranty, excluding window

(USA and Canada only)

Natural or propane gas

Optional Features:

Summit 45+ Solid State Digital Control with Cook ‘n’ Hold plus Core Probe

80,000 BTU (23.4kW) burner package (Natural Gas Only)

Windows in both doors

Stainless steel solid doors

Stainless steel oven interior

Extra oven racks

Swivel casters, (4) w/ front brakes.

Low profile casters, (4) w/ front brakes (double ovens only)

Stainless steel open base with rack guides and shelf

Canopy diverter (stainless steel)

Direct connect vent

Gas flexhose w/quick disconnect & restraining device

Back enclosure (stainless steel)

208 or 240 volt, single phase (please specify)

Maximum security package available contact factory for details

Convection Oven

Specifications:

U.S. Range Summit FullSize Standard Depth, suffix S1 or Deep Depth, suffix D1 gas convection oven. 60,000 BTU (17.6 kW) cavity, 3/4 HP fan motor with twospeed fan speed control. Electronic spark ignition. Natural or propane gas. Summit 45 Solid State, Digital Controller 150°F500°F (66°C260°C) w/Pulse Fan & Cook ‘n’ Hold w/100 hour timer. Auto Cool Down / Auto Set Back feature. Porcelain enameled oven interior with coved corners, five (5) oven racks and 10position rack guides. All model interiors are 29" (736mm) W by 24" (610mm) H, depth is 24" (610mm) for standard depth and 28" (711mm) for deep depth. Stainless

steel front, sides, top, and legs. 60/40 dependent door design with double pane thermal window in lefthand door and interior lighting. 200 Models are double deck units. Specify voltage if other than 115 volt, 60 Hz, 1 phase. UL, CUL GasFired and NSF Listed.

Garland Commercial

Garland Commercial Ranges Ltd

Enodis UK LTD

Industries, LLC

1177 Kamato Road,

Swallowfield Way,

185 East South Street

Mississauga, Ontario

Hayes, Middlesex

Freeland, PA 18224

L4W 1X4 CANADA

UB3 1DQ ENGLAND

Phone: (570) 636-1000

Phone: 905-624-0260

Telephone: 081-561-0433

Fax: (570) 636-3903

Fax: 905-624-5669

Fax: 081-848-0041

Page 1
