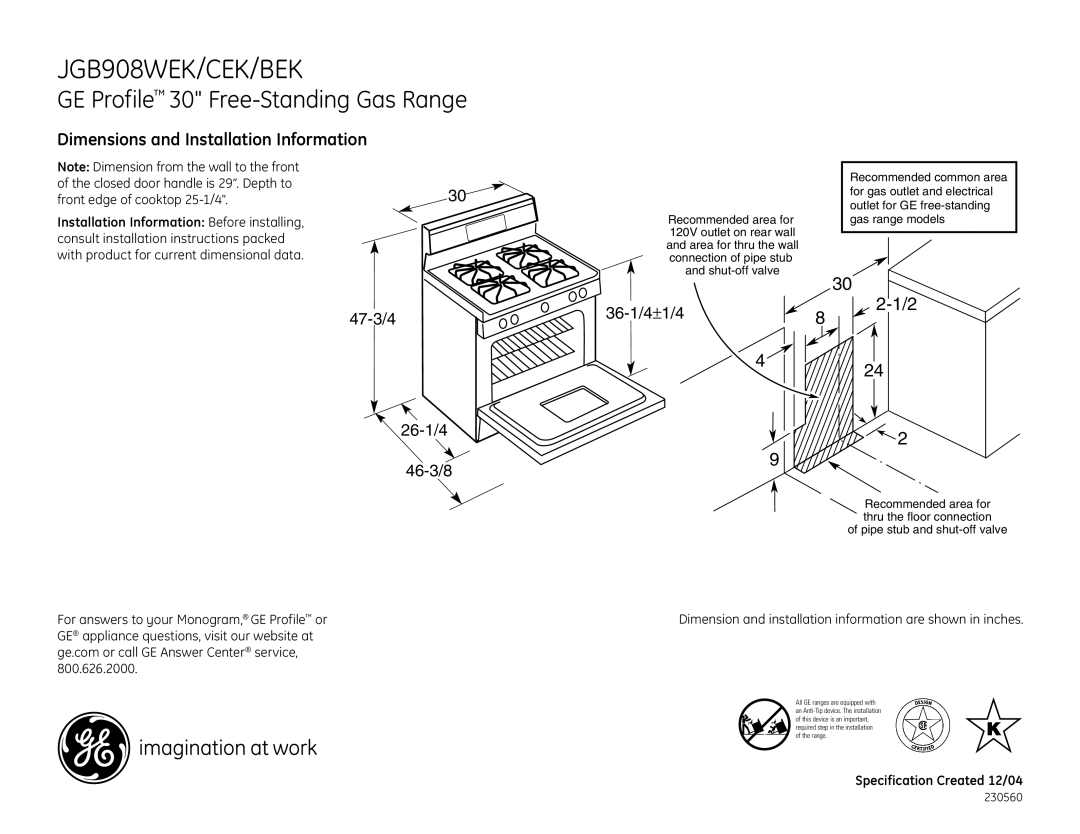

JGB908WEK/CEK/BEK
GE Profile™ 30" Free-Standing Gas Range
Dimensions and Installation Information
Note: Dimension from the wall to the front |
|
of the closed door handle is 29”. Depth to | 30 |
front edge of cooktop |
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
Recommended area for 120V outlet on rear wall and area for thru the wall connection of pipe stub and
Recommended common area for gas outlet and electrical outlet for GE
30
47-3/4
36-1/4±1/4
8
26-1/4
46-3/8
4
9
24
2
Recommended area for thru the floor connection
of pipe stub and
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
Dimension and installation information are shown in inches.
All GE ranges are equipped with an
Specification Created 12/04
230560
