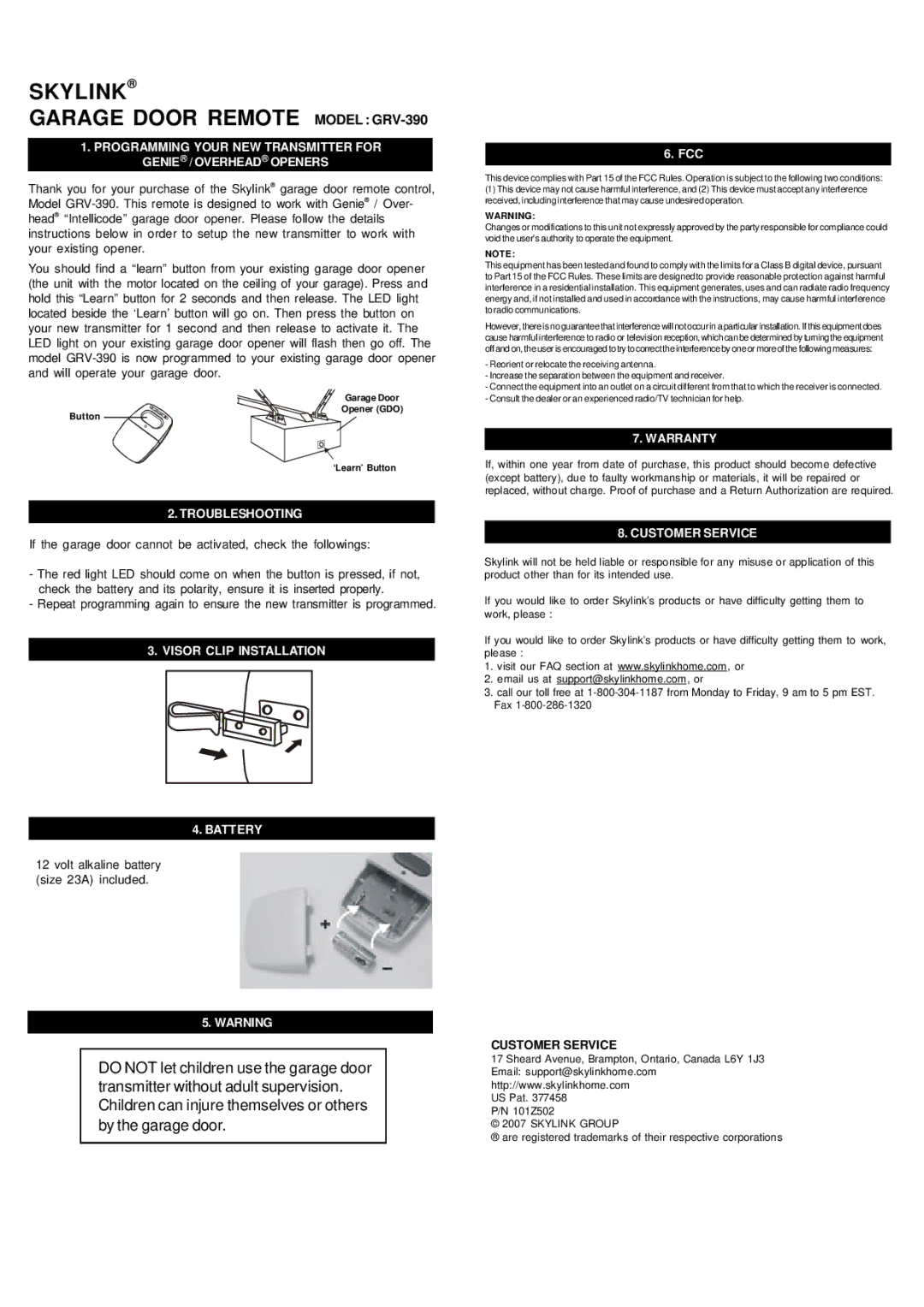

SKYLINK®

GARAGE DOOR REMOTE MODEL : GRV-390

1.PROGRAMMING YOUR NEW TRANSMITTER FOR GENIE® / OVERHEAD® OPENERS

Thank you for your purchase of the Skylink® garage door remote control, Model GRV-390. This remote is designed to work with Genie® / Over- head® “Intellicode” garage door opener. Please follow the details instructions below in order to setup the new transmitter to work with your existing opener.

You should find a “learn” button from your existing garage door opener (the unit with the motor located on the ceiling of your garage). Press and hold this “Learn” button for 2 seconds and then release. The LED light located beside the ‘Learn’ button will go on. Then press the button on your new transmitter for 1 second and then release to activate it. The LED light on your existing garage door opener will flash then go off. The model GRV-390 is now programmed to your existing garage door opener and will operate your garage door.

Garage Door

Opener (GDO)

Button

‘Learn’ Button

2. TROUBLESHOOTING

If the garage door cannot be activated, check the followings:

-The red light LED should come on when the button is pressed, if not, check the battery and its polarity, ensure it is inserted properly.

-Repeat programming again to ensure the new transmitter is programmed.

3.VISOR CLIP INSTALLATION

4. BATTERY

12 volt alkaline battery (size 23A) included.

5. WARNING

DO NOT let children use the garage door transmitter without adult supervision. Children can injure themselves or others by the garage door.

6. FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING:

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

7. WARRANTY

If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase and a Return Authorization are required.

8. CUSTOMER SERVICE

Skylink will not be held liable or responsible for any misuse or application of this product other than for its intended use.

If you would like to order Skylink’s products or have difficulty getting them to work, please :

If you would like to order Skylink’s products or have difficulty getting them to work, please :

1.visit our FAQ section at www.skylinkhome.com, or

2.email us at support@skylinkhome.com, or

3.call our toll free at 1-800-304-1187 from Monday to Friday, 9 am to 5 pm EST. Fax 1-800-286-1320

CUSTOMER SERVICE

17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Email: support@skylinkhome.com http://www.skylinkhome.com

US Pat. 377458 P/N 101Z502

© 2007 SKYLINK GROUP

® are registered trademarks of their respective corporations
