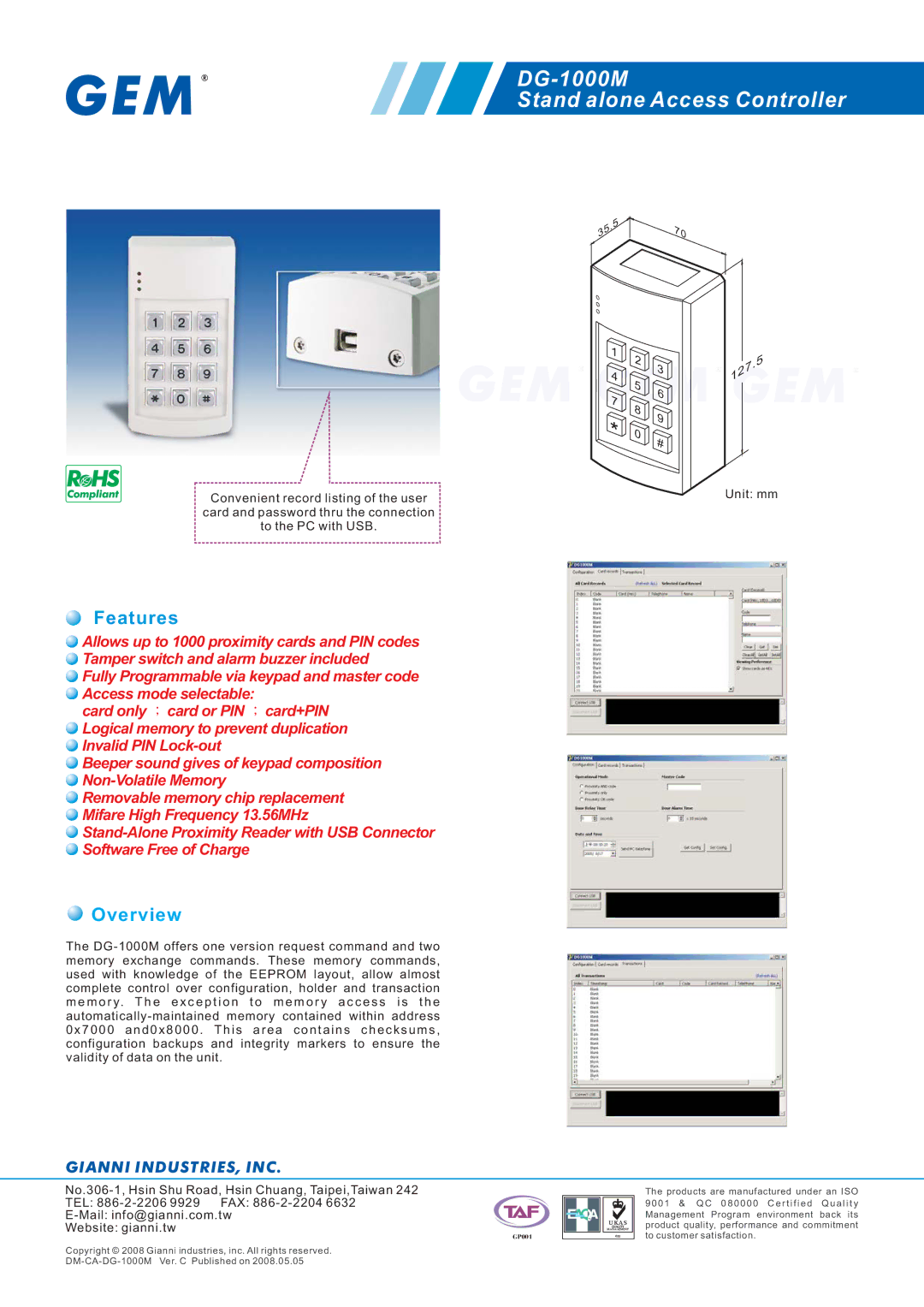

Gianni Industries manual DG-1000M Stand alone Access Controller, Features, Overview

DG-1000M

Stand alone Access Controller

.5 35

70

1 4 7 *

2	3
5	6
8	9

0

#

. 5

127

Convenient record listing of the user card and password thru the connection to the PC with USB.

Unit: mm

Features

Allows up to 1000 proximity cards and PIN codes

Tamper switch and alarm buzzer included

Fully Programmable via keypad and master code

Access mode selectable:

card only ；card or PIN ；card+PIN Logical memory to prevent duplication Invalid PIN Lock-out

Beeper sound gives of keypad composition

Non-Volatile Memory

Removable memory chip replacement

Mifare High Frequency 13.56MHz

Stand-Alone Proximity Reader with USB Connector Software Free of Charge

Overview

The DG-1000M offers one version request command and two memory exchange commands. These memory commands, used with knowledge of the EEPROM layout, allow almost complete control over configuration, holder and transaction m e m o r y. T h e e x c e p t i o n t o m e m o r y a c c e s s i s t h e automatically-maintained memory contained within address 0 x 7 0 0 0 a n d 0 x 8 0 0 0 . T h i s a r e a c o n t a i n s c h e c k s u m s , configuration backups and integrity markers to ensure the validity of data on the unit.

GIANNI INDUSTRIES, INC.

No.306-1, Hsin Shu Road, Hsin Chuang, Taipei,Taiwan 242 TEL: 886-2-2206 9929 FAX: 886-2-2204 6632

E-Mail: info@gianni.com.tw

Website: gianni.tw

GP001

The products are manufactured under an ISO 9 0 0 1 & Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y Management Program environment back its product quality, performance and commitment to customer satisfaction.

Copyright © 2008 Gianni industries, inc. All rights reserved. DM-CA-DG-1000M Ver. C Published on 2008.05.05
