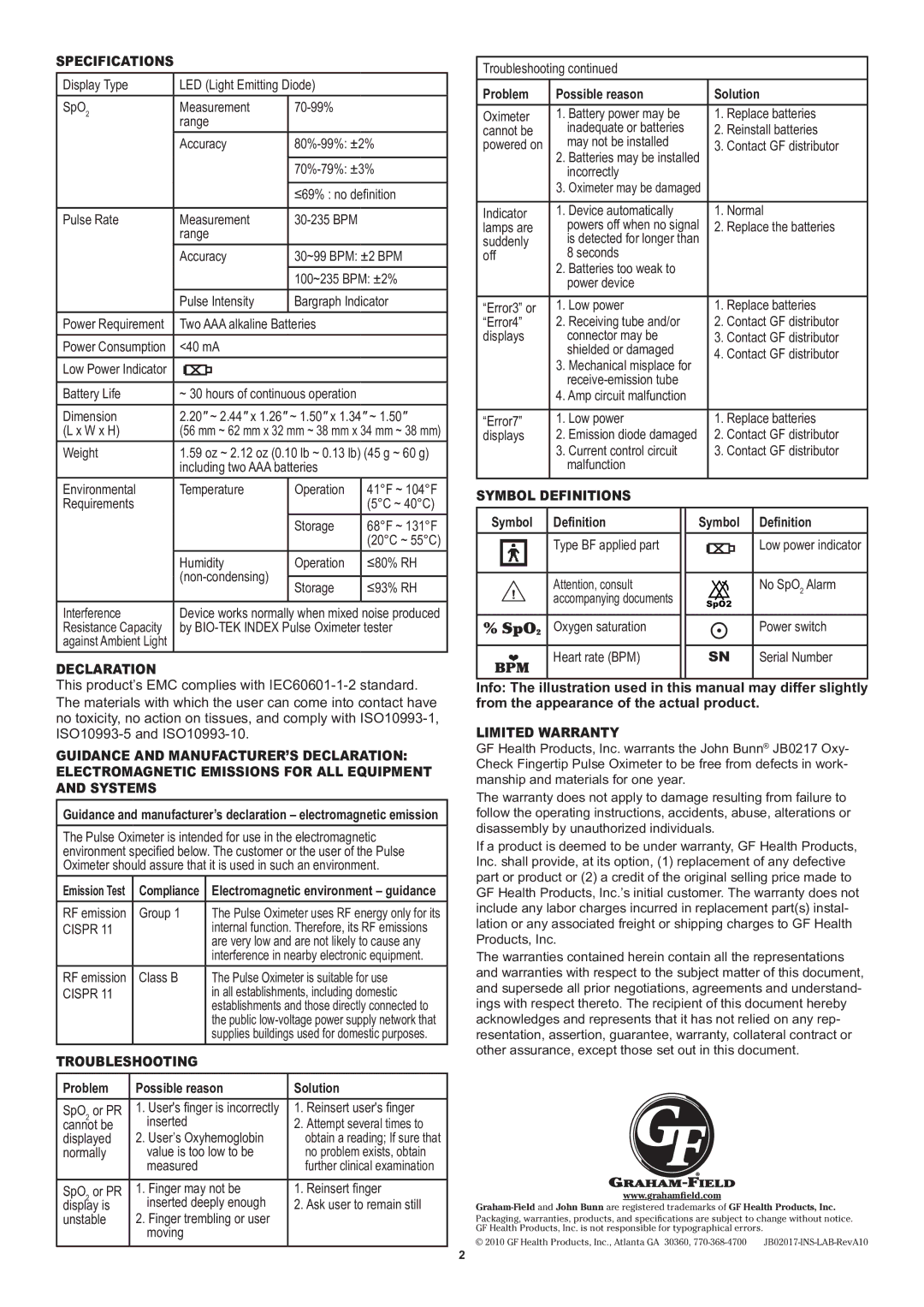

SPECIFICATIONS

Display Type

LED (Light Emitting Diode)



















SpO2

Measurement

70-99%





range







Accuracy

80%-99%: ±2%





























70%-79%: ±3%





























≤69% : no definition

















Pulse Rate

Measurement

30-235 BPM





range























Accuracy

30~99 BPM: ±2 BPM





























100~235 BPM: ±2%



















Pulse Intensity

Bargraph Indicator

















Power Requirement

Two AAA alkaline Batteries



















Power Consumption

<40 mA





















Low Power Indicator

























































Battery Life

~ 30 hours of continuous operation

















Dimension

2.20~ 2.44x 1.26~ 1.50x 1.34~ 1.50

(L x W x H)

(56 mm ~ 62 mm x 32 mm ~ 38 mm x 34 mm ~ 38 mm)

Weight

1.59 oz ~ 2.12 oz (0.10 lb ~ 0.13 lb) (45 g ~ 60 g)



including two AAA batteries



Environmental

Temperature

Operation

41°F ~ 104°F

Requirements













(5°C ~ 40°C)





























Storage

68°F ~ 131°F















(20°C ~ 55°C)



















Humidity

Operation

≤80% RH



(non-condensing)







Storage

≤93% RH





























Interference

Device works normally when mixed noise produced

Resistance Capacity

by BIO-TEK INDEX Pulse Oximeter tester

against Ambient Light































DECLARATION

This product’s EMC complies with IEC60601-1-2 standard. The materials with which the user can come into contact have no toxicity, no action on tissues, and comply with ISO10993-1, ISO10993-5 and ISO10993-10.

GUIDANCE AND MANUFACTURER’S DECLARATION: ELECTROMAGNETIC EMISSIONS FOR ALL EQUIPMENT AND SYSTEMS

Guidance and manufacturer’s declaration – electromagnetic emission

The Pulse Oximeter is intended for use in the electromagnetic environment specified below. The customer or the user of the Pulse Oximeter should assure that it is used in such an environment.

Emission Test

Compliance

Electromagnetic environment – guidance











RF emission

Group 1

The Pulse Oximeter uses RF energy only for its

CISPR 11



internal function. Therefore, its RF emissions







are very low and are not likely to cause any







interference in nearby electronic equipment.

RF emission

Class B

The Pulse Oximeter is suitable for use

CISPR 11



in all establishments, including domestic







establishments and those directly connected to







the public low-voltage power supply network that







supplies buildings used for domestic purposes.











TROUBLESHOOTING













Problem



Possible reason

Solution









SpO2 or PR



1. User's finger is incorrectly

1. Reinsert user's finger

cannot be



inserted



2. Attempt several times to

displayed



2. User’s Oxyhemoglobin

obtain a reading; If sure that

normally



value is too low to be

no problem exists, obtain





measured



further clinical examination









SpO2 or PR



1. Finger may not be

1. Reinsert finger

display is



inserted deeply enough

2. Ask user to remain still

unstable



2. Finger trembling or user







moving















Troubleshooting continued

Problem

Possible reason



Solution





















Oximeter

1.

Battery power may be



1.

Replace batteries

cannot be



inadequate or batteries



2.

Reinstall batteries

powered on

2.

may not be installed



3.

Contact GF distributor



Batteries may be installed















incorrectly















3.

Oximeter may be damaged































Indicator

1.

Device automatically



1.

Normal

lamps are



powers off when no signal

2.

Replace the batteries

suddenly



is detected for longer than











off



8 seconds















2.

Batteries too weak to

















power device

































“Error3” or

1.

Low power



1.

Replace batteries

“Error4”

2.

Receiving tube and/or



2.

Contact GF distributor

displays



connector may be



3.

Contact GF distributor





shielded or damaged



4.

Contact GF distributor



3.

Mechanical misplace for





















receive-emission tube















4. Amp circuit malfunction

































“Error7”

1.

Low power



1.

Replace batteries

displays

2.

Emission diode damaged



2.

Contact GF distributor



3.

Current control circuit



3.

Contact GF distributor





malfunction

































SYMBOL DEFINITIONS





























Symbol

Definition

Symbol

Definition























Type BF applied part











Low power indicator





































Attention, consult











No SpO2 Alarm



accompanying documents































SpO2

Oxygen saturation







Power switch

Heart rate (BPM)



SN

Serial Number

BPM





















Info: The illustration used in this manual may differ slightly from the appearance of the actual product.

LIMITED WARRANTY

GF Health Products, Inc. warrants the John Bunn® JB0217 Oxy- Check Fingertip Pulse Oximeter to be free from defects in work- manship and materials for one year.

The warranty does not apply to damage resulting from failure to follow the operating instructions, accidents, abuse, alterations or disassembly by unauthorized individuals.

If a product is deemed to be under warranty, GF Health Products, Inc. shall provide, at its option, (1) replacement of any defective part or product or (2) a credit of the original selling price made to GF Health Products, Inc.’s initial customer. The warranty does not include any labor charges incurred in replacement part(s) instal- lation or any associated freight or shipping charges to GF Health Products, Inc.

The warranties contained herein contain all the representations and warranties with respect to the subject matter of this document, and supersede all prior negotiations, agreements and understand- ings with respect thereto. The recipient of this document hereby acknowledges and represents that it has not relied on any rep- resentation, assertion, guarantee, warranty, collateral contract or other assurance, except those set out in this document.

www.grahamfield.com

Graham-Field and John Bunn are registered trademarks of GF Health Products, Inc.

Packaging, warranties, products, and specifications are subject to change without notice. GF Health Products, Inc. is not responsible for typographical errors.

© 2010 GF Health Products, Inc., Atlanta GA 30360, 770-368-4700

JB02017-INS-LAB-RevA10
