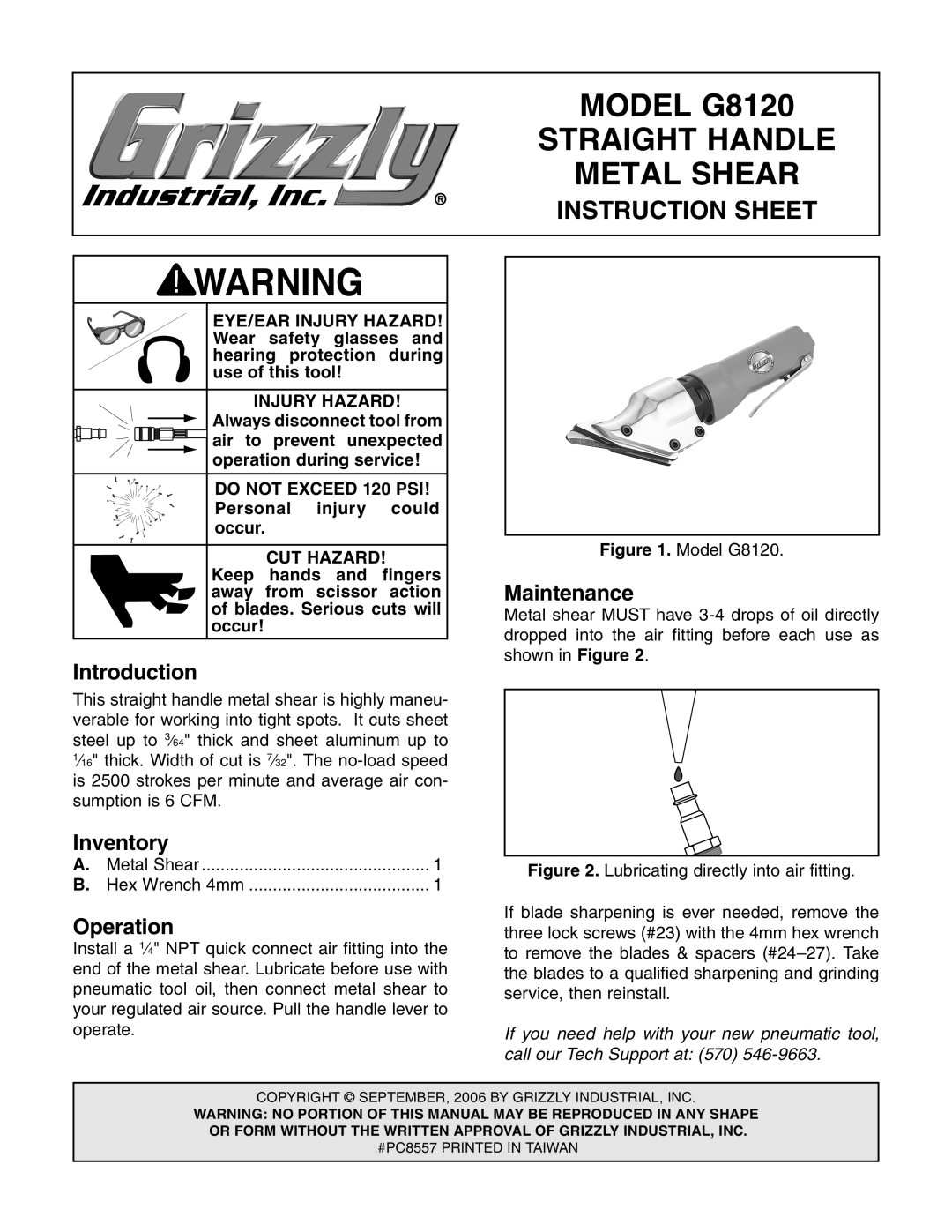

Grizzly instruction sheet MODEL G8120, Straight Handle, Metal Shear, Instruction Sheet

MODEL G8120

STRAIGHT HANDLE

METAL SHEAR

INSTRUCTION SHEET

EYE/EAR INJURY HAZARD! Wear safety glasses and hearing protection during use of this tool!

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected operation during service!

DO NOT EXCEED 120 PSI! Personal injury could occur.

CUT HAZARD!

Keep hands and fingers away from scissor action of blades. Serious cuts will occur!

Introduction

This straight handle metal shear is highly maneu- verable for working into tight spots. It cuts sheet steel up to 3⁄64" thick and sheet aluminum up to 1⁄16" thick. Width of cut is 7⁄32". The no-load speed is 2500 strokes per minute and average air con- sumption is 6 CFM.

Inventory

A.Metal Shear ................................................ 1

B.Hex Wrench 4mm ...................................... 1

Operation

Install a 1⁄4" NPT quick connect air fitting into the end of the metal shear. Lubricate before use with pneumatic tool oil, then connect metal shear to your regulated air source. Pull the handle lever to operate.

Figure 1. Model G8120.

Maintenance

Metal shear MUST have 3-4 drops of oil directly dropped into the air fitting before each use as shown in Figure 2.

Figure 2. Lubricating directly into air fitting.

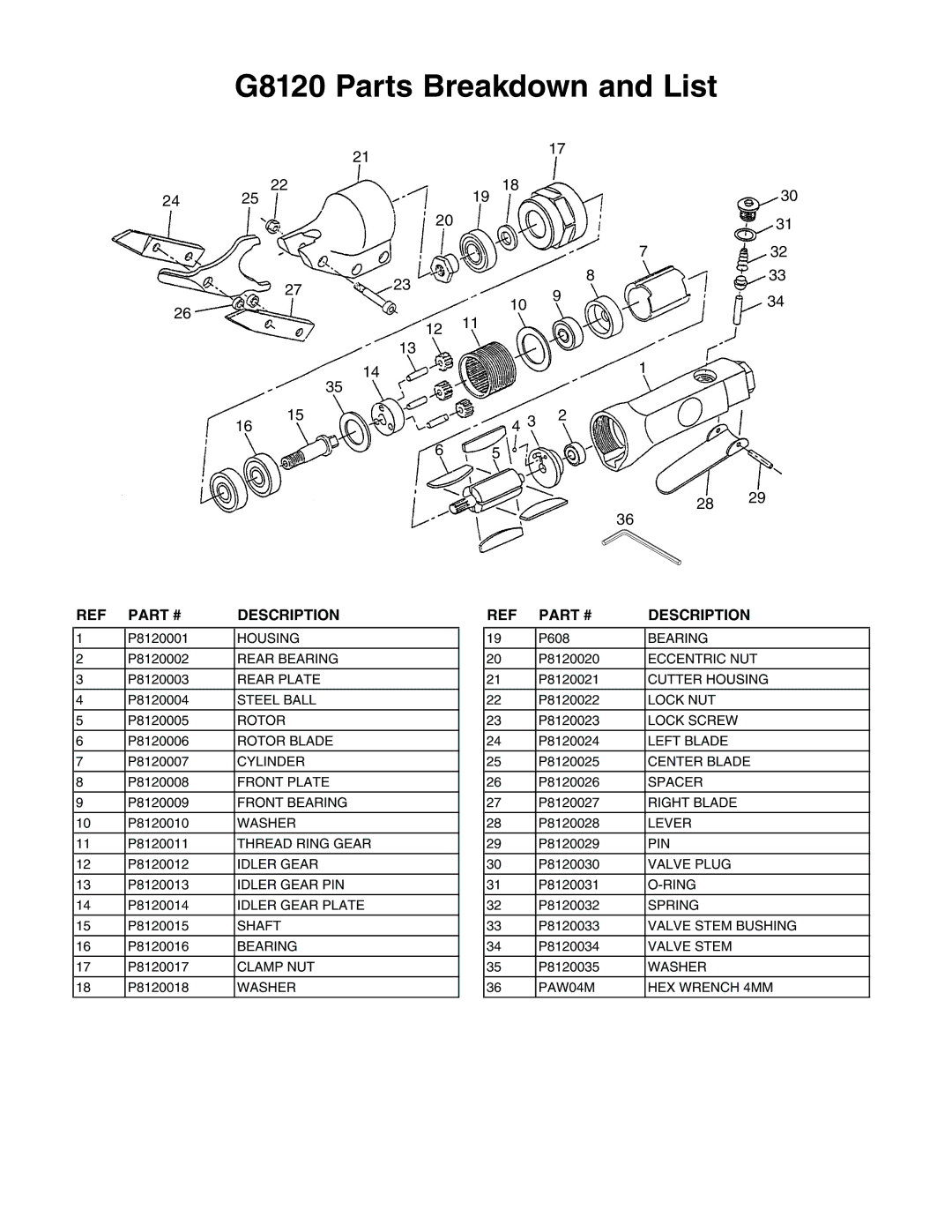

If blade sharpening is ever needed, remove the three lock screws (#23) with the 4mm hex wrench to remove the blades & spacers (#24–27). Take the blades to a qualified sharpening and grinding service, then reinstall.

If you need help with your new pneumatic tool, call our Tech Support at: (570) 546-9663.

COPYRIGHT © SEPTEMBER, 2006 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8557 PRINTED IN TAIWAN
