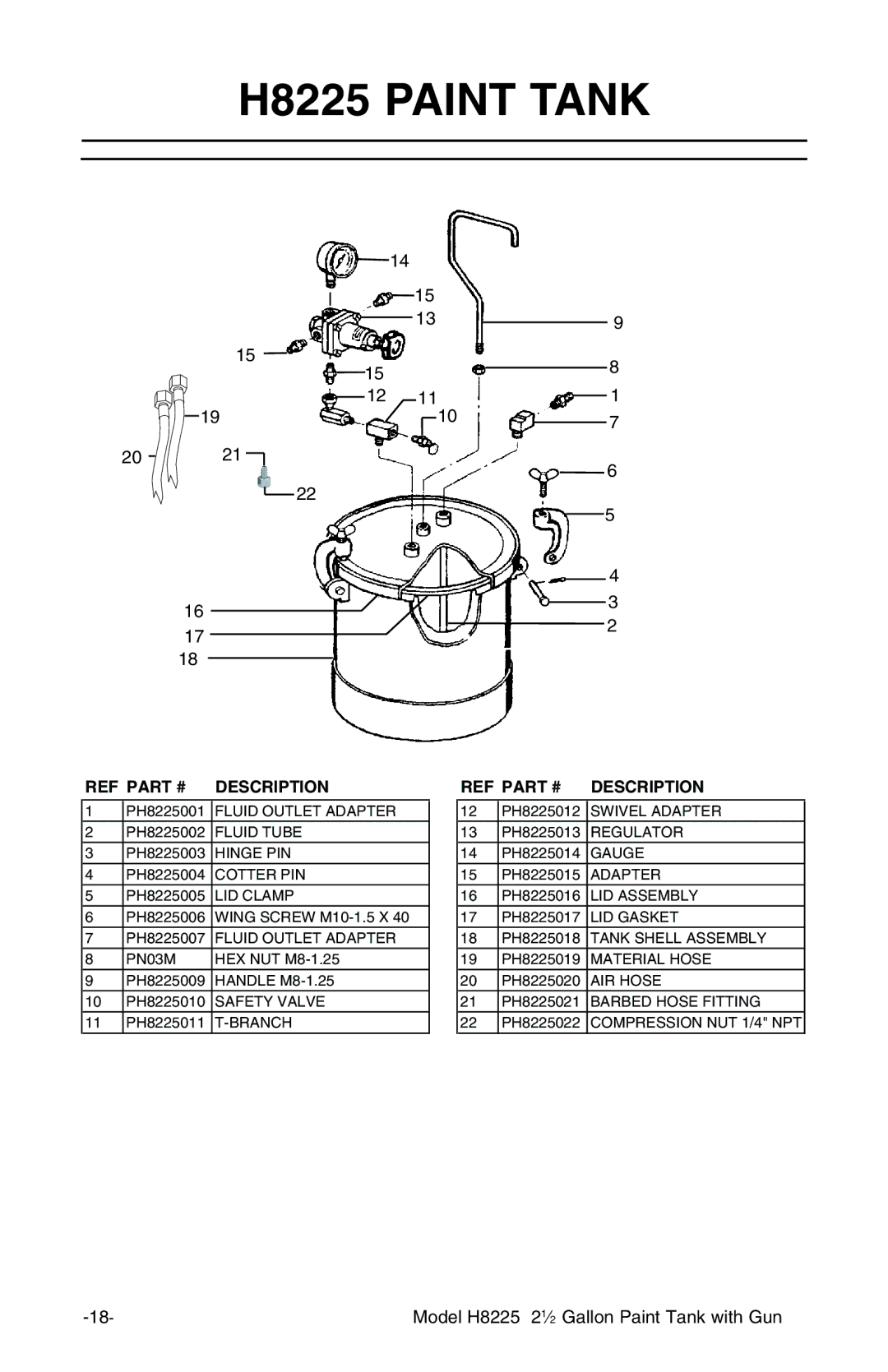

H8225 PAINT TANK
|
| �� |
|
|
| �� |
|
|
| �� | � |
| �� |
| � |
| �� |
| |
|
|
| |
| �� | �� | � |
| �� | �� | � |
|
|
| |
�� | �� |
| � |
|
|
| |
| �� |
|
|
|
|
| � |
��
��
��
REF PART # | DESCRIPTION | |
|
|
|
1 | PH8225001 | FLUID OUTLET ADAPTER |
2 | PH8225002 | FLUID TUBE |
3 | PH8225003 | HINGE PIN |
4 | PH8225004 | COTTER PIN |
5 | PH8225005 | LID CLAMP |
6 | PH8225006 | WING SCREW |
7 | PH8225007 | FLUID OUTLET ADAPTER |
8 | PN03M | HEX NUT |
9 | PH8225009 | HANDLE |
10 | PH8225010 | SAFETY VALVE |
11 | PH8225011 | |
�
�
�
REF PART # | DESCRIPTION | |
|
|
|
12 | PH8225012 | SWIVEL ADAPTER |
13 | PH8225013 | REGULATOR |
14 | PH8225014 | GAUGE |
15 | PH8225015 | ADAPTER |
16 | PH8225016 | LID ASSEMBLY |
17 | PH8225017 | LID GASKET |
18 | PH8225018 | TANK SHELL ASSEMBLY |
19 | PH8225019 | MATERIAL HOSE |
20 | PH8225020 | AIR HOSE |
21 | PH8225021 | BARBED HOSE FITTING |
22 | PH8225022 | COMPRESSION NUT 1/4" NPT |
Model H8225 21⁄2 Gallon Paint Tank with Gun |
