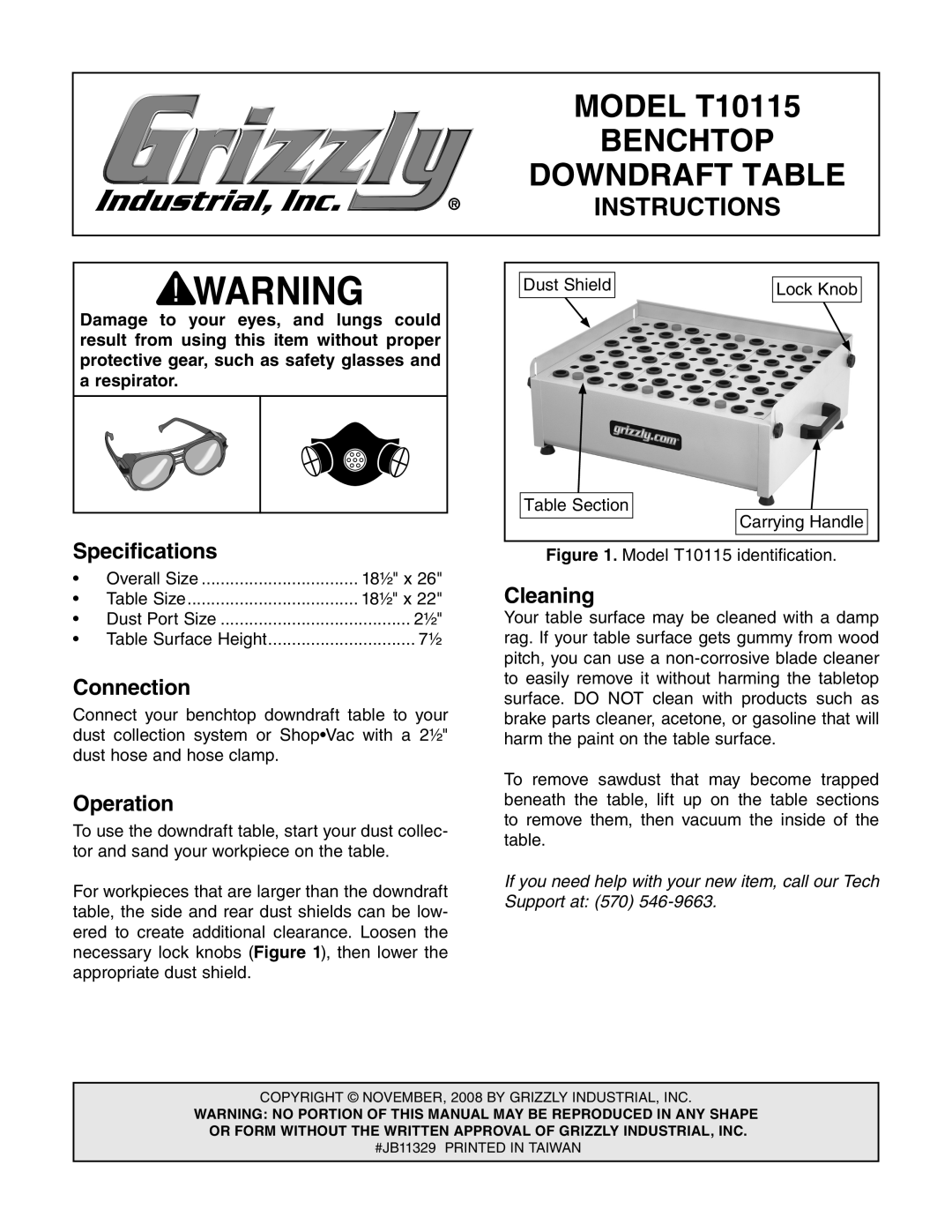

MODEL T10115

BENCHTOP

DOWNDRAFT TABLE

INSTRUCTIONS

Damage to your eyes, and lungs could result from using this item without proper protective gear, such as safety glasses and a respirator.

Specifications

Overall Size

18½" x 26"

Table Size

18½" x 22"

Dust Port Size

2½"

Table Surface Height

Connection

Connect your benchtop downdraft table to your dust collection system or Shop•Vac with a 2½" dust hose and hose clamp.

Operation

To use the downdraft table, start your dust collec- tor and sand your workpiece on the table.

For workpieces that are larger than the downdraft table, the side and rear dust shields can be low- ered to create additional clearance. Loosen the necessary lock knobs (Figure 1), then lower the appropriate dust shield.

Dust Shield



Lock Knob







Table Section

Carrying Handle

Figure 1. Model T10115 identification.

Cleaning

Your table surface may be cleaned with a damp rag. If your table surface gets gummy from wood pitch, you can use a non-corrosive blade cleaner to easily remove it without harming the tabletop surface. DO NOT clean with products such as brake parts cleaner, acetone, or gasoline that will harm the paint on the table surface.

To remove sawdust that may become trapped beneath the table, lift up on the table sections to remove them, then vacuum the inside of the table.

If you need help with your new item, call our Tech Support at: (570) 546-9663.

Copyright © NovemBER, 2008 By Grizzly Industrial, Inc.

Warning: No portion of this manual may be reproduced in any shape Or form without the written approval of Grizzly Industrial, inc.

#JB11329 printed in TAIWAN

Page 1
