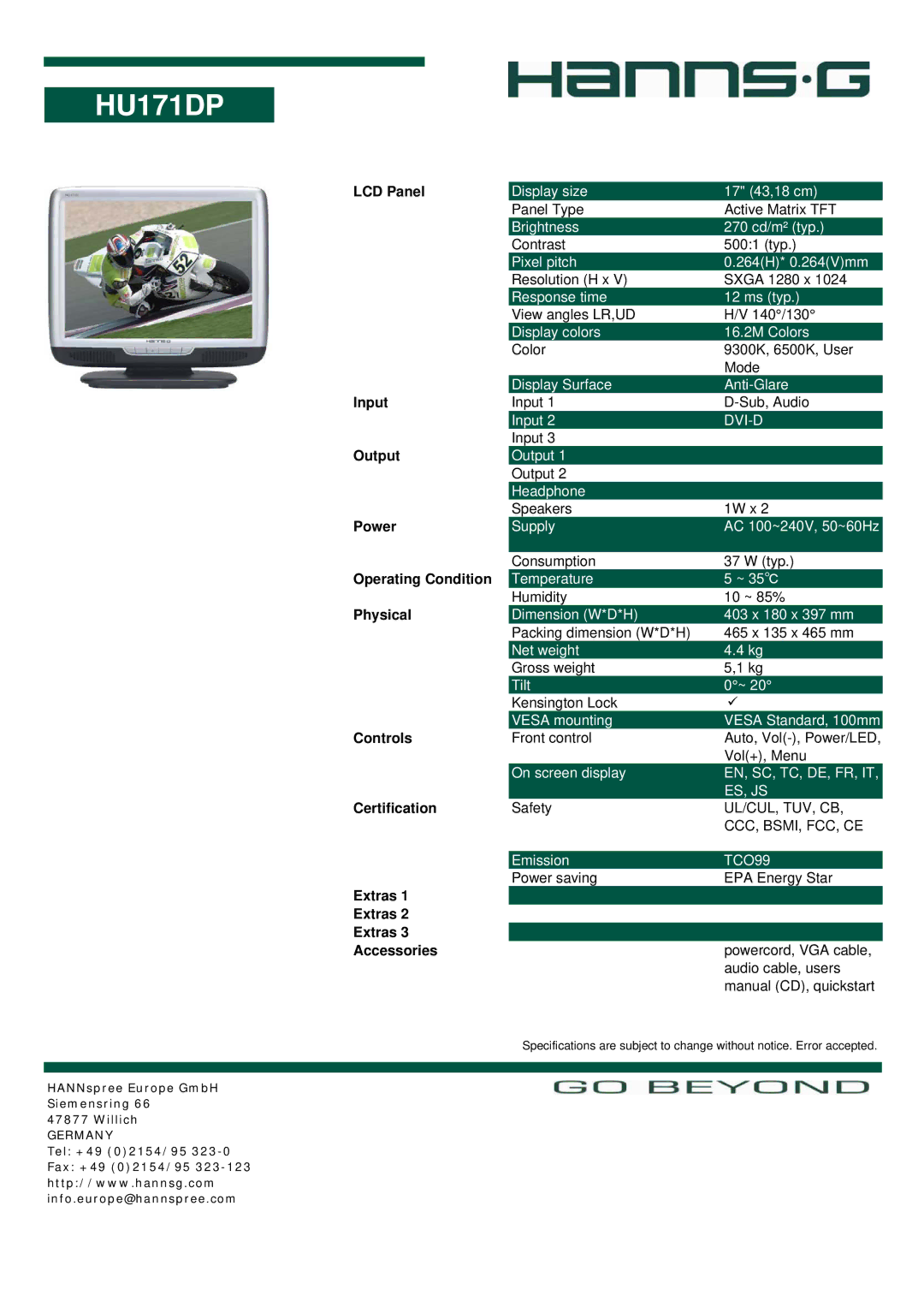

HU171DP

LCD Panel

Display size

17" (43,18 cm)



Panel Type

Active Matrix TFT



Brightness

270 cd/m² (typ.)



Contrast

500:1 (typ.)



Pixel pitch

0.264(H)* 0.264(V)mm



Resolution (H x V)

SXGA 1280 x 1024



Response time

12 ms (typ.)



View angles LR,UD

H/V 140°/130°



Display colors

16.2M Colors



Color

9300K, 6500K, User





Mode

Input

Display Surface

Anti-Glare

Input 1

D-Sub, Audio



Input 2

DVI-D

Output

Input 3



Output 1





Output 2





Headphone



Power

Speakers

1W x 2

Supply

AC 100~240V, 50~60Hz







Operating Condition

Consumption

37 W (typ.)

Temperature

5 ~ 35

Physical

Humidity

10 ~ 85%

Dimension (W*D*H)

403 x 180 x 397 mm



Packing dimension (W*D*H)

465 x 135 x 465 mm



Net weight

4.4 kg



Gross weight

5,1 kg



Tilt

0°~ 20°



Kensington Lock

9

Controls

VESA mounting

VESA Standard, 100mm

Front control

Auto, Vol(-), Power/LED,





Vol(+), Menu



On screen display

EN, SC, TC, DE, FR, IT,

Certification



ES, JS

Safety

UL/CUL, TUV, CB,





CCC, BSMI, FCC, CE









Emission

TCO99

Extras 1

Power saving

EPA Energy Star





Extras 2





Extras 3





Accessories



powercord, VGA cable,





audio cable, users





manual (CD), quickstart

Specifications are subject to change without notice. Error accepted.

HANNspree Europe GmbH Siemensring 66

47877 Willich

GERMANY

Tel: +49 (0)2154/95 323-0

Fax: +49 (0)2154/95 323-123 http://www.hannsg.com info.europe@hannspree.com

Page 1
Image 1
Hanns.G HU171DP user manual

HU171DP specifications

The Hanns.G HU171DP is a 17-inch LCD monitor that combines practicality with performance, catering well to both home and office usage. Known for its budget-friendly pricing, the HU171DP delivers solid features that make it a reliable choice for everyday computing tasks, including office applications, casual gaming, and multimedia consumption.

One of the standout features of the HU171DP is its vibrant display. With a native resolution of 1280 x 1024 pixels, the monitor supports a 5:4 aspect ratio, which is particularly well-suited for viewing documents and web pages in a traditional format. The 300 cd/m² brightness level ensures clear visibility even in brightly lit environments, while the 1000:1 contrast ratio provides a good balance between the brightest whites and the darkest blacks, producing sharp and vivid images.

The monitor utilizes a TN (Twisted Nematic) panel technology, known for its fast response time of just 5ms. This quick response time minimizes motion blur, making it a decent option for fast-paced gaming. However, as with many TN panels, viewing angles are a bit limited, with optimal color reproduction experienced at straight-on positions. Users may notice some color distortion when viewing from extreme angles, making it advisable to position the monitor directly in front for the best viewing experience.

Connectivity is straightforward with the HU171DP, which includes VGA and DVI-D inputs, allowing for easy connection to a variety of devices, including PCs and laptops. The monitor also supports plug-and-play installation, simplifying setup and minimizing technical hassles.

In terms of ergonomics, the Hanns.G HU171DP features a sturdy stand that allows for tilt adjustments, enabling users to find their preferred viewing angle. While it lacks an extensive range of ergonomic adjustments such as height or swivel, the tilt function is often sufficient for standard workspace requirements.

Energy efficiency is also a consideration, with the HU171DP designed to comply with Energy Star standards. This implies that the monitor consumes less power, leading to reduced energy bills and a smaller carbon footprint.

In summary, the Hanns.G HU171DP is a reliable, budget-friendly monitor that delivers solid performance for basic computing needs. Its combination of a vibrant display, quick response time, and straightforward connectivity options makes it a suitable choice for students, professionals, and casual users alike.
