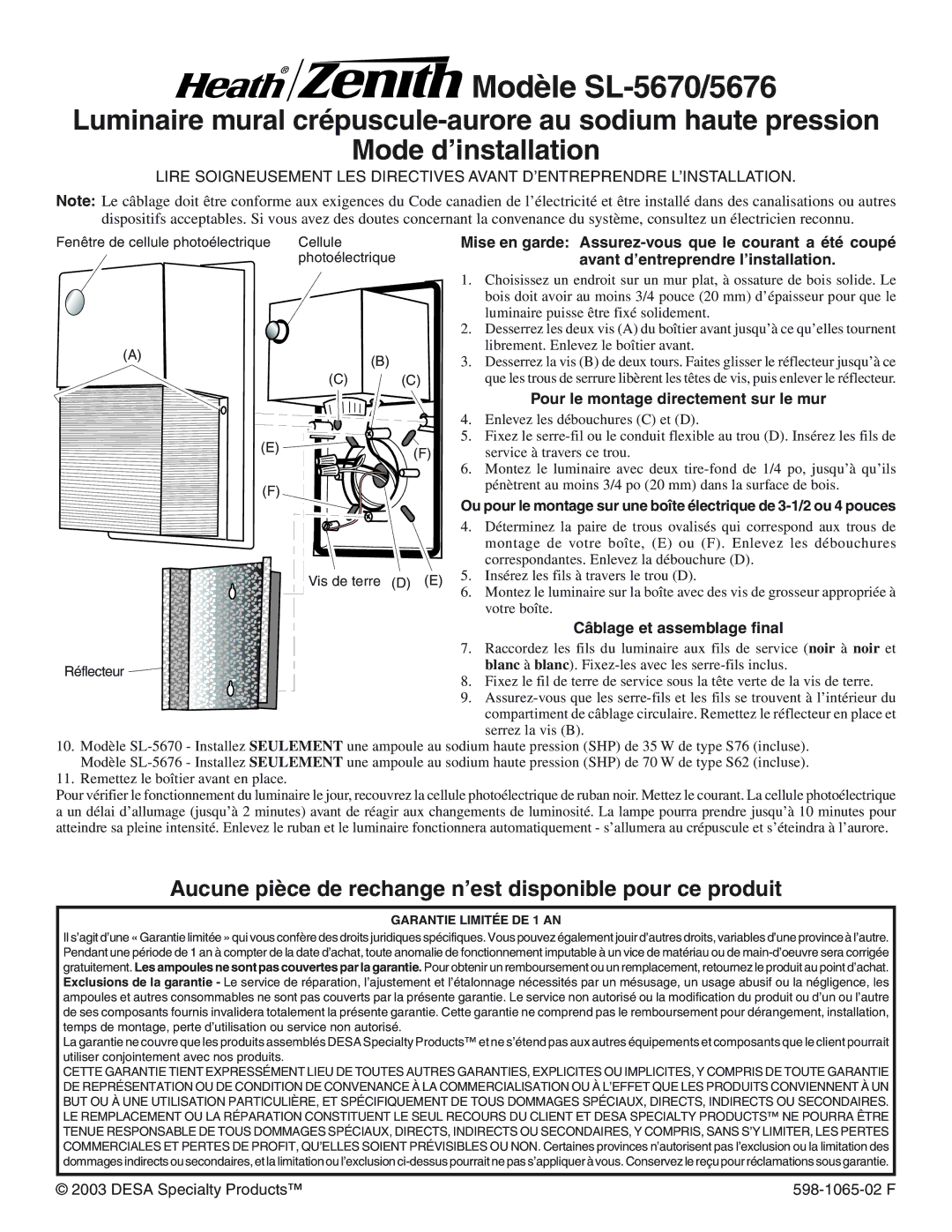

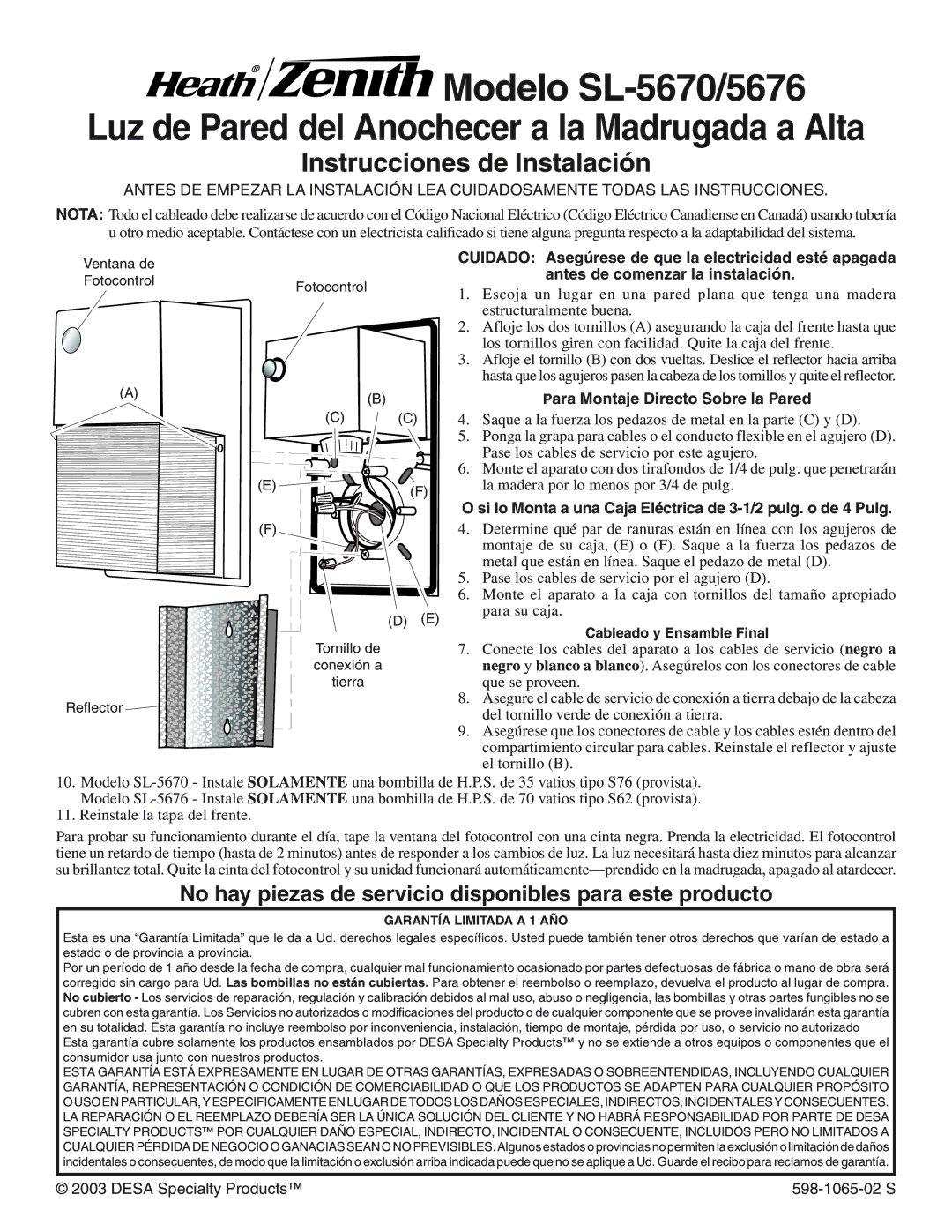

Model SL-5670/5676
High Pressure Sodium Dusk-To-Dawn Wall Light
Installation Instructions
READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION.
NOTE: All wiring must be run in accordance with the National Electrical Code (Canadian Electrical Code in Canada) through conduit or another acceptable means. Contact a qualified electrician if there is any question as to the suitability of the system.
Photocontrol
Window
Photocontrol
(A) | (B) |
| |
(C) | (C) |
(E) | (F) |
| |
(F) |
|
Ground (D) (E)
Screw
Reflector
CAUTION: Make sure the power is off before starting the installation.
1.Select a location on a flat wall with structurally sound wood. The wood should be at least 3/4 inch thick to safely secure the fixture.
2.Loosen the two screws (A) securing the front housing until the screws turn easily. Remove the front housing.
3.Loosen screw (B) two turns. Slide the reflector up until the key- holes clear the screw heads and remove the reflector.
If Mounting Directly to Wall
4.Knock out slugs at (C) and (D).
5.Attach cable clamp or flexible conduit to hole (D). Thread the ser- vice wires thru this hole.
6.Mount the fixture with two 1/4 inch lag screws that will penetrate the wood surface at least 3/4 inch.
Or, if Mounting to A 3-1/2" Or 4" Electrical Box
4.Determine which pair of slots line up with the mounting holes on your box, (E) or (F). Knock out the slugs that line up. Knock out slug (D).
5.Thread the service wires thru hole (D).
6.Mount the fixture to the box with screws of the proper size for your box.
Wiring and Final Assembly
7.Connect the fixture wires to the service wires (black to black and white to white). Secure with wire nuts provided.
8.Secure the service ground wire under the head of the green ground screw.
9.Make sure the wire nuts and wires are inside the circular wiring compartment. Reinstall the reflector and tighten screw (B).
10.Model
Model
11.Reinstall the front cover.
To test operation during daylight, cover the photocontrol window with black tape. Turn on the power. The photocontrol has a time delay (up to 2 minutes) before it will respond to light changes. The light will take up to ten minutes to reach full brightness. Uncover the photocontrol and your unit will operate
No Service Parts Available for this Product
ONE YEAR LIMITED WARRANTY
This is a “Limited Warranty” which gives you specific legal rights. You may also have other rights which vary from state to state or province to province. For a period of one year from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge to you. Light bulbs are not covered. To obtain a refund or a replacement, return the product to the place of purchase.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs and other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, or unauthorized service.
This warranty covers only DESA Specialty Products™ assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF DESA SPECIALTY PRODUCTS™ FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Retain receipt for warranty claims.
© 2003 DESA Specialty Products™ |
