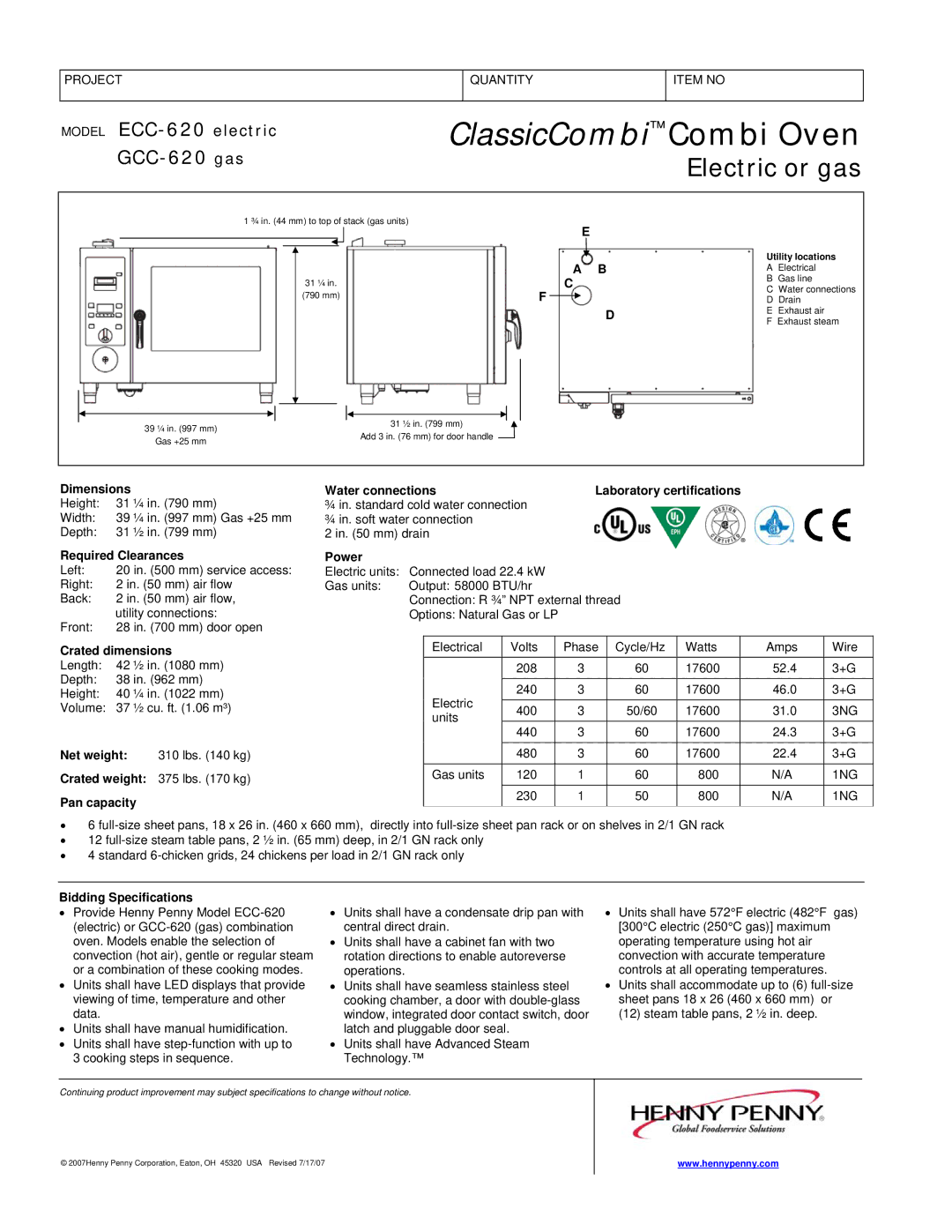

PROJECT

QUANTITY

ITEM NO

MODEL ECC-620 electric

ClassicCombiCombi Oven

GCC-620 gas



Electric or gas

























1 ¾ in. (44 mm) to top of stack (gas units)

E





















A B

Utility locations

















A Electrical





31 ¼ in.

C

B Gas line





C Water connections





(790 mm)

F





D Drain

D

E Exhaust air

F Exhaust steam







31 ½ in. (799 mm)

39 ¼ in. (997 mm)

Add 3 in. (76 mm) for door handle

Gas +25 mm



Dimensions



Height:

31

¼ in. (790 mm)

Width:

39

¼ in. (997 mm) Gas +25 mm

Depth:

31

½ in. (799 mm)

Required Clearances

Left:

20 in. (500 mm) service access:

Right:

2 in. (50 mm) air flow

Back:

2 in. (50 mm) air flow,



utility connections:

Front:

28 in. (700 mm) door open

Crated dimensions

Length:

42

½ in. (1080 mm)

Depth:

38 in. (962 mm)

Height:

40

¼ in. (1022 mm)

Volume:

37

½ cu. ft. (1.06 m³)

Net weight:

310 lbs. (140 kg)

Crated weight: 375 lbs. (170 kg)

Pan capacity

Water connections

Laboratory certifications

¾in. standard cold water connection

¾in. soft water connection

2 in. (50 mm) drain

Power

Electric units: Connected load 22.4 kW

Gas units: Output: 58000 BTU/hr

Connection: R ¾” NPT external thread

Options: Natural Gas or LP

Electrical

Volts

Phase

Cycle/Hz

Watts

Amps

Wire

















208

3

60

17600

52.4

3+G















Electric

240

3

60

17600

46.0

3+G













400

3

50/60

17600

31.0

3NG

units













440

3

60

17600

24.3

3+G



















480

3

60

17600

22.4

3+G

Gas units

120

1

60

800

N/A

1NG

















230

1

50

800

N/A

1NG















6 full-size sheet pans, 18 x 26 in. (460 x 660 mm), directly into full-size sheet pan rack or on shelves in 2/1 GN rack

12 full-size steam table pans, 2 ½ in. (65 mm) deep, in 2/1 GN rack only

4 standard 6-chicken grids, 24 chickens per load in 2/1 GN rack only

Bidding Specifications

Provide Henny Penny Model ECC-620 (electric) or GCC-620 (gas) combination oven. Models enable the selection of convection (hot air), gentle or regular steam or a combination of these cooking modes.

Units shall have LED displays that provide viewing of time, temperature and other data.

Units shall have manual humidification.

Units shall have step-function with up to 3 cooking steps in sequence.

Units shall have a condensate drip pan with central direct drain.

Units shall have a cabinet fan with two rotation directions to enable autoreverse operations.

Units shall have seamless stainless steel cooking chamber, a door with double-glass window, integrated door contact switch, door latch and pluggable door seal.

Units shall have Advanced Steam Technology.™

Units shall have 572°F electric (482°F gas) [300°C electric (250°C gas)] maximum operating temperature using hot air convection with accurate temperature controls at all operating temperatures.

Units shall accommodate up to (6) full-size sheet pans 18 x 26 (460 x 660 mm) or (12) steam table pans, 2 ½ in. deep.

Continuing product improvement may subject specifications to change without notice.

© 2007Henny Penny Corporation, Eaton, OH 45320 USA Revised 7/17/07

www.hennypenny.com
