Hobie Paddle manual SCREW-IN Fittings, Hatches, RS316BLK, RS014BLK, Early Mirage Rudder

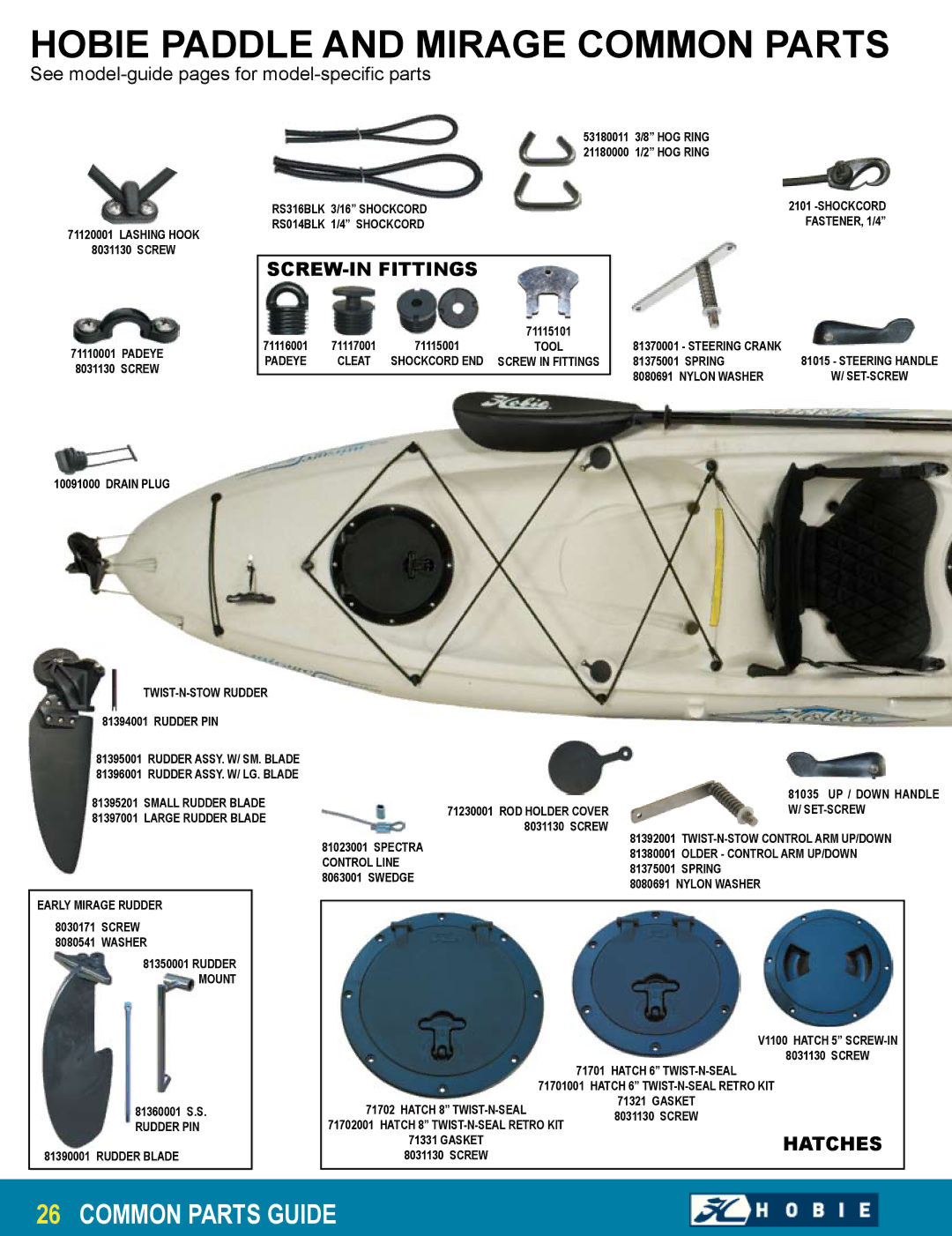

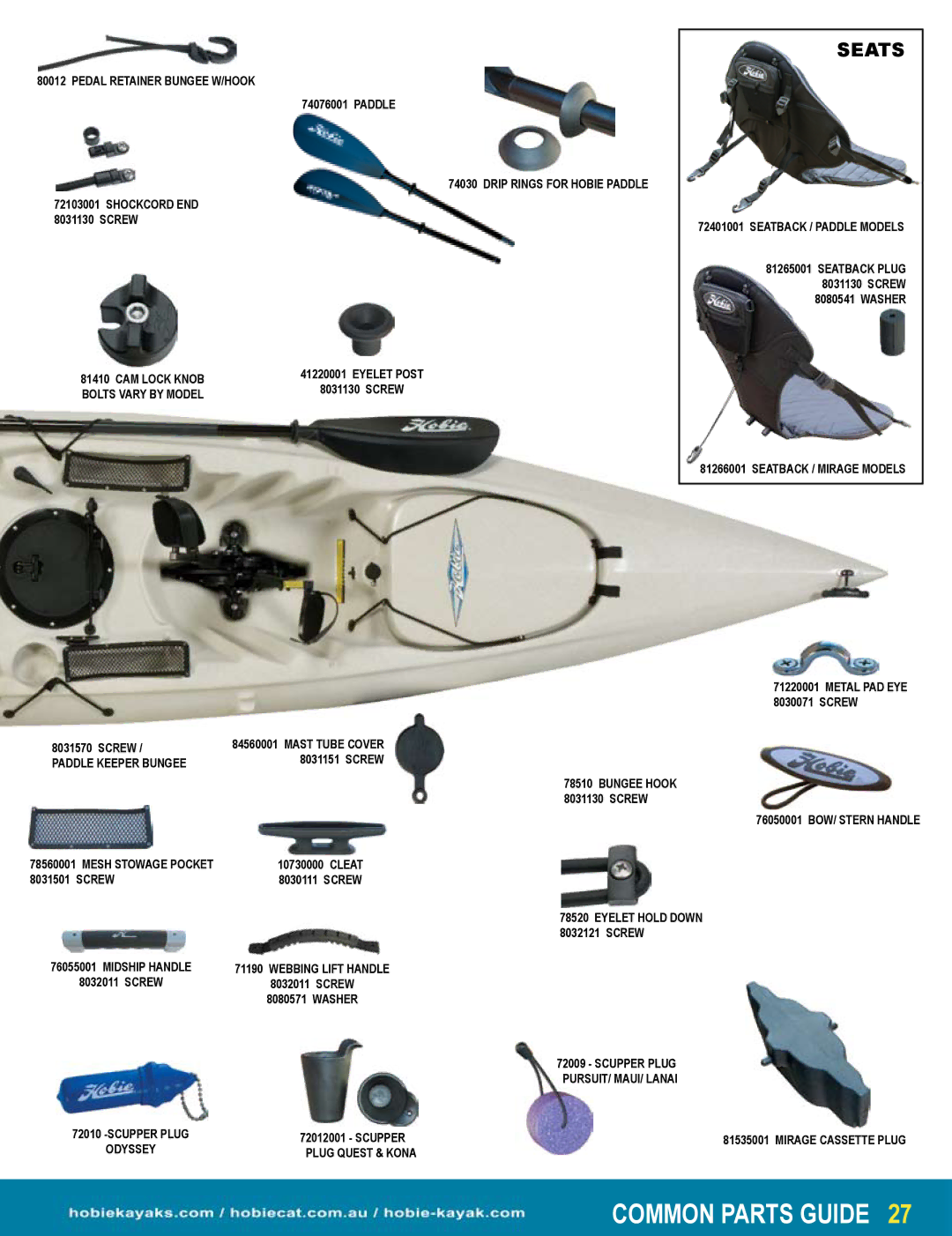

HOBIE PADDLE AND MIRAGE COMMON PARTS

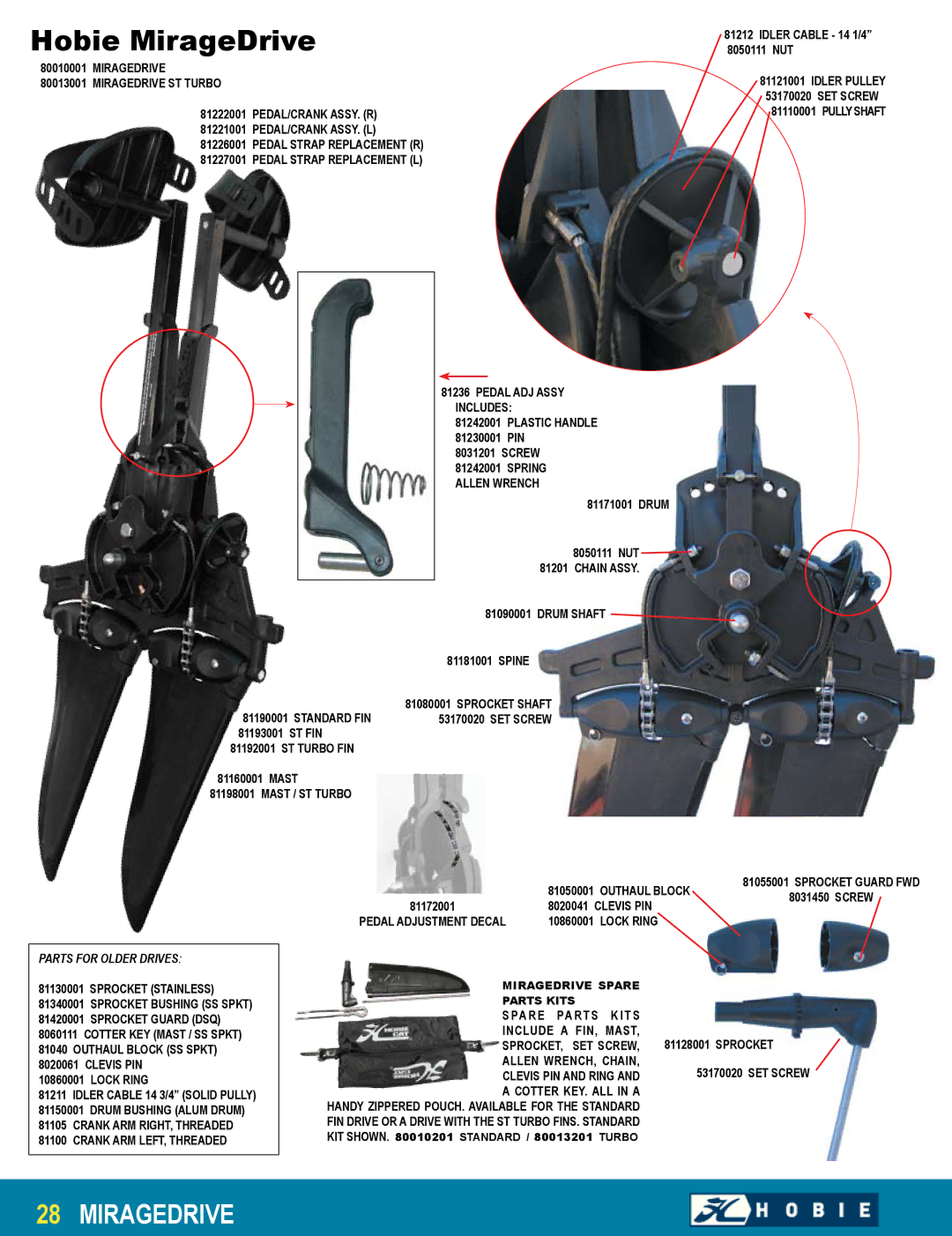

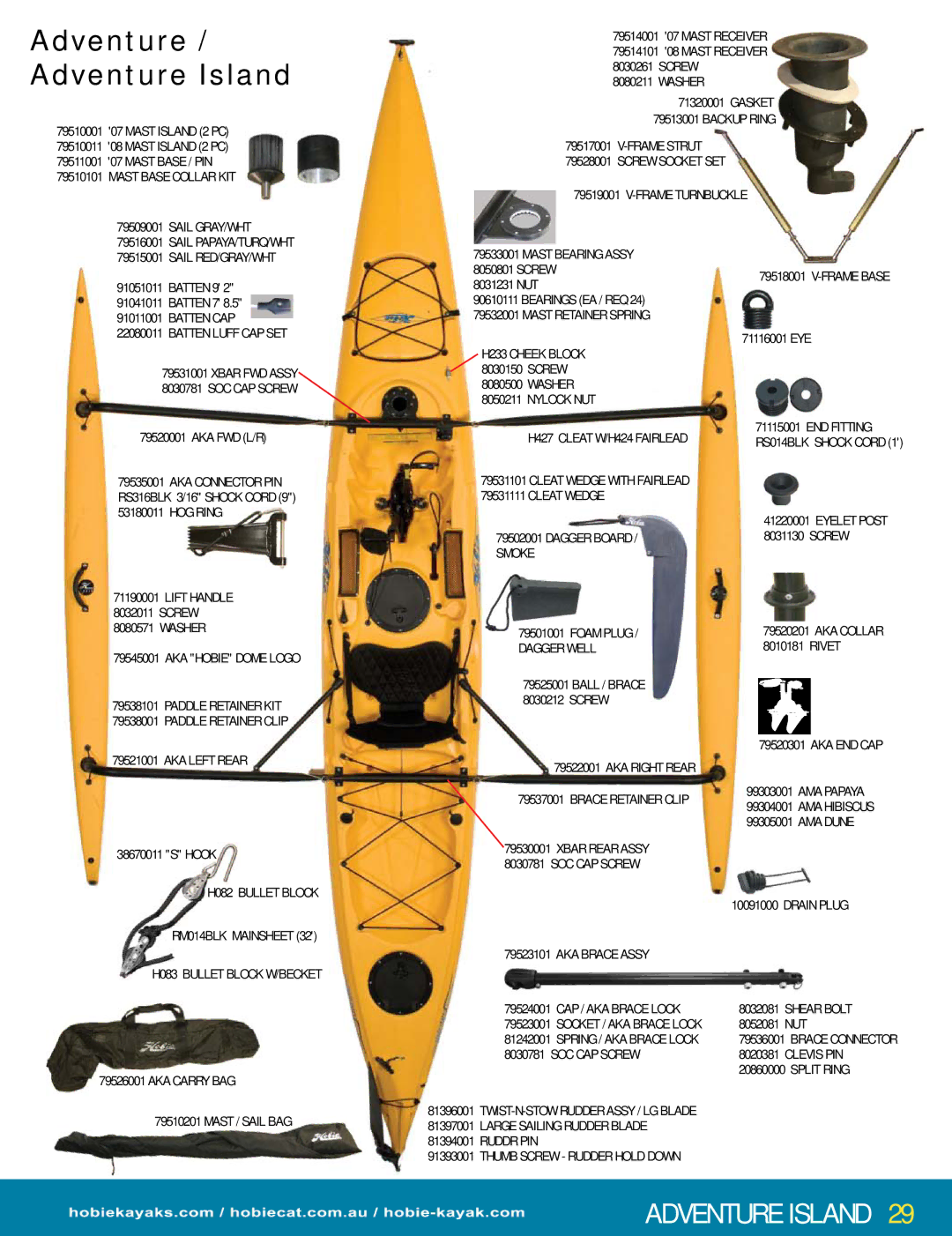

See model-guide pages for model-specific parts

71120001 Lashing hook

8031130 Screw

53180011 3/8” Hog ring

21180000 1/2” Hog ring

RS316BLK	3/16” Shockcord	2101 -Shockcord
RS014BLK	1/4” Shockcord	fastener, 1/4”

71110001 Padeye

8031130 Screw

10091000 Drain plug

SCREW-IN FITTINGS

71116001	71117001	71115001	71115101
			TOOL
Padeye	CLEAT	Shockcord end	SCREW in FITTINGS

81370001 - Steering crank	81015 - Steering handle
81375001 Spring
8080691 Nylon washer	w/ set-screw

Twist-N-Stow RUDDER

81394001 Rudder pin

81395001 rudder assy. w/ sm. blade

81396001 rudder assy. w/ LG. blade

81395201 SMALL rudder blade

81397001 Large rudder blade

EARLY MIRAGE RUDDER

8030171 SCREW

8080541 washer

81350001 Rudder mount

81360001 S.S. Rudder pin

81390001 Rudder BLADE

		81035 Up / Down handle
71230001 Rod holder cover		w/ set-screw
8031130 Screw	81392001	TWIST-N-STOW Control arm up/down
81023001 Spectra
	81380001	OLDER - Control arm up/down
control line
	81375001	Spring
8063001 Swedge
	8080691 Nylon washer

		V1100 Hatch 5” screw-in
		8031130 Screw
		71701 Hatch 6” Twist-N-Seal
	71701001 Hatch 6” Twist-N-Seal RETRO KIT
71702 Hatch 8” Twist-N-Seal		71321 Gasket
		8031130 Screw
71702001 Hatch 8” Twist-N-Seal RETRO KIT
		HATCHES
71331 Gasket
8031130 Screw

26COMMON PARTS GUIDE
