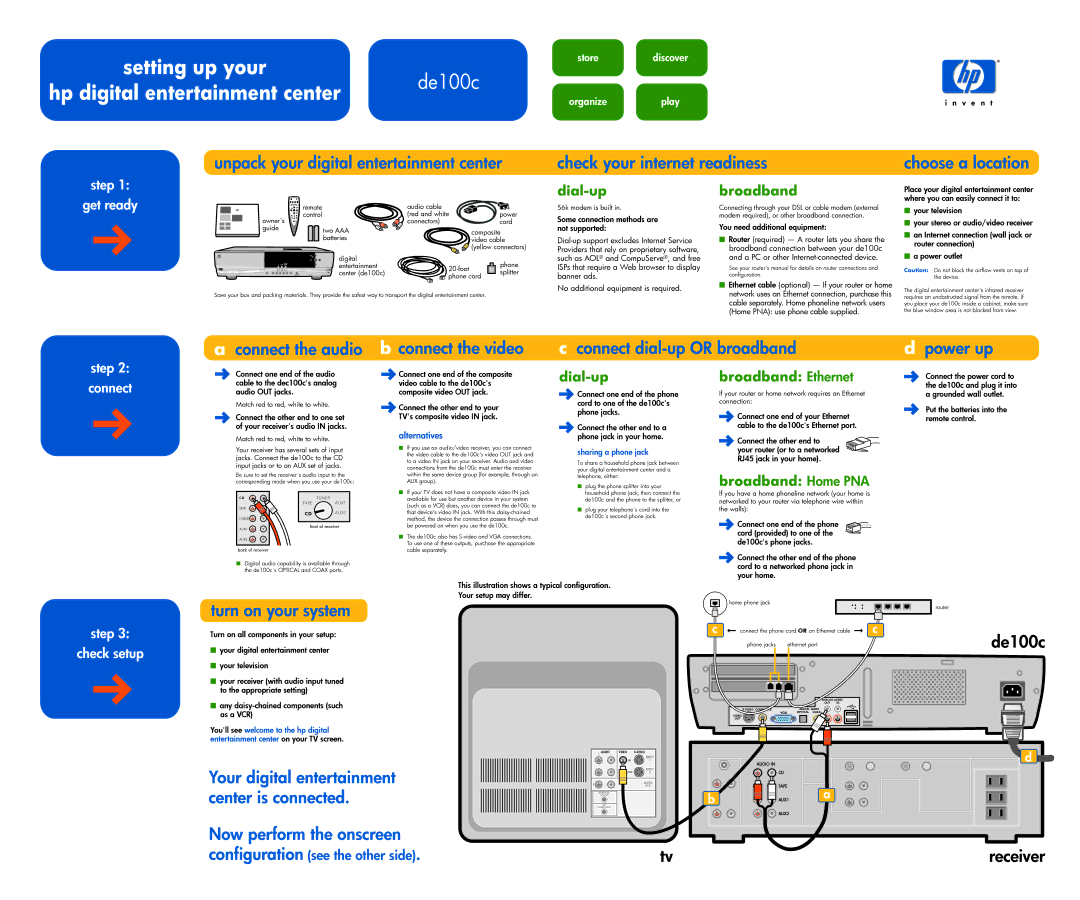

setting up your | de100c | |
hp digital entertainment center | ||
|
store discover
organize play
unpack your digital entertainment center |
check your internet readiness
choose a location
step 1: |
|
|
|
|
get ready |
| remote | audio cable |
|
| owner's | control | (red and white | power |
|
| connectors) | cord | |
| guide | two AAA |
| composite |
|
|
| ||
|
| batteries |
| video cable |
|
|
|
| (yellow connectors) |
digital |
|
| phone | |
entertainment |
| |||
center (de100c) | splitter | |||
phone cord | ||||
|
| |||
Save your box and packing materials. They provide the safest way to transport the digital entertainment center.
dial-up
56k modem is built in.
Some connection methods are not supported:
No additional equipment is required.
broadband
Connecting through your DSL or cable modem (external modem required), or other broadband connection.
You need additional equipment:
■Router (required) — A router lets you share the broadband connection between your de100c and a PC or other
See your router's manual for details on router connections and configuration.
■Ethernet cable (optional) — If your router or home network uses an Ethernet connection, purchase this cable separately. Home phoneline network users (Home PNA): use phone cable supplied.
Place your digital entertainment center where you can easily connect it to:
■your television
■your stereo or audio/video receiver
■an Internet connection (wall jack or router connection)
■a power outlet
Caution: Do not block the airflow vents on top of the device.
The digital entertainment center's infrared receiver requires an unobstructed signal from the remote. If you place your de100c inside a cabinet, make sure the blue window area is not blocked from view.
a connect the audio b connect the video | c connect |
dpower up
step 2:
connect
Connect one end of the audio cable to the dec100c's analog audio OUT jacks.
Match red to red, white to white.
Connect the other end to one set of your receiver's audio IN jacks.
Match red to red, white to white.
Your receiver has several sets of input jacks. Connect the de100c to the CD input jacks or to an AUX set of jacks.
Be sure to set the receiver´s audio input to the corresponding mode when you use your de100c:
CD |
| TUN ER |
| TAPE | AUX1 |
TAPE |
|
|
TUNER | CD | AUX2 |
|
| |
AUX1 | front of receiver | |
|
| |
AUX2
back of receiver
■Digital audio capability is available through the de100c´s OPTICAL and COAX ports.
Connect one end of the composite video cable to the de100c's composite video OUT jack.
Connect the other end to your TV's composite video IN jack.
alternatives
■If you use an audio/video receiver, you can connect the video cable to the de100c's video OUT jack and to a video IN jack on your receiver. Audio and video connections from the de100c must enter the receiver within the same device group (for example, through an AUX group).
■If your TV does not have a composite video IN jack available for use but another device in your system (such as a VCR) does, you can connect the de100c to that device's video IN jack. With this
■The de100c also has
Connect one end of the phone cord to one of the de100c's phone jacks.
Connect the other end to a phone jack in your home.
sharing a phone jack
To share a household phone jack between your digital entertainment center and a telephone, either:
■plug the phone splitter into your household phone jack, then connect the de100c and the phone to the splitter, or
■plug your telephone´s cord into the de100c´s second phone jack.
broadband: Ethernet
If your router or home network requires an Ethernet connection:
Connect one end of your Ethernet cable to the de100c's Ethernet port.
Connect the other end to
your router (or to a networked
RJ45 jack in your home).
broadband: Home PNA
If you have a home phoneline network (your home is networked to your router via telephone wire within the walls):
Connect one end of the phone cord (provided) to one of the de100c's phone jacks.
Connect the other end of the phone cord to a networked phone jack in your home.
Connect the power cord to the de100c and plug it into a grounded wall outlet.
Put the batteries into the remote control.
turn on your system
This illustration shows a typical configuration. Your setup may differ.
home phone jack
router
step 3:
check setup
Turn on all components in your setup:
■your digital entertainment center
■your television
■your receiver (with audio input tuned to the appropriate setting)
■any
You'll see welcome to the hp digital entertainment center on your TV screen.
Your digital entertainment center is connected.
Now perform the onscreen
configuration (see the other side).
| ➞ connect the phone cord OR an Ethernet cable ➞ | |||||||||
| phone jacks |
| ethernet port | |||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| AUDIO | VIDEO |
| |
| R | L | INPUT |
|
|
|
|
| |
|
| IN | 1 | AUDIO IN |
|
|
|
| |
|
|
| INPUT | CD |
|
| OUT | 2 | |
|
|
|
| |
R | L |
| AUDIO | TAPE |
| OUT | |||
|
|
| ||
| IR MOUSE |
|
|
|
|
|
|
| |
|
|
|
| AUX1 |
| AV |
|
|
|
| COMPULINK |
|
|
|
|
|
|
| AUX2 |
tv
de100c
receiver
