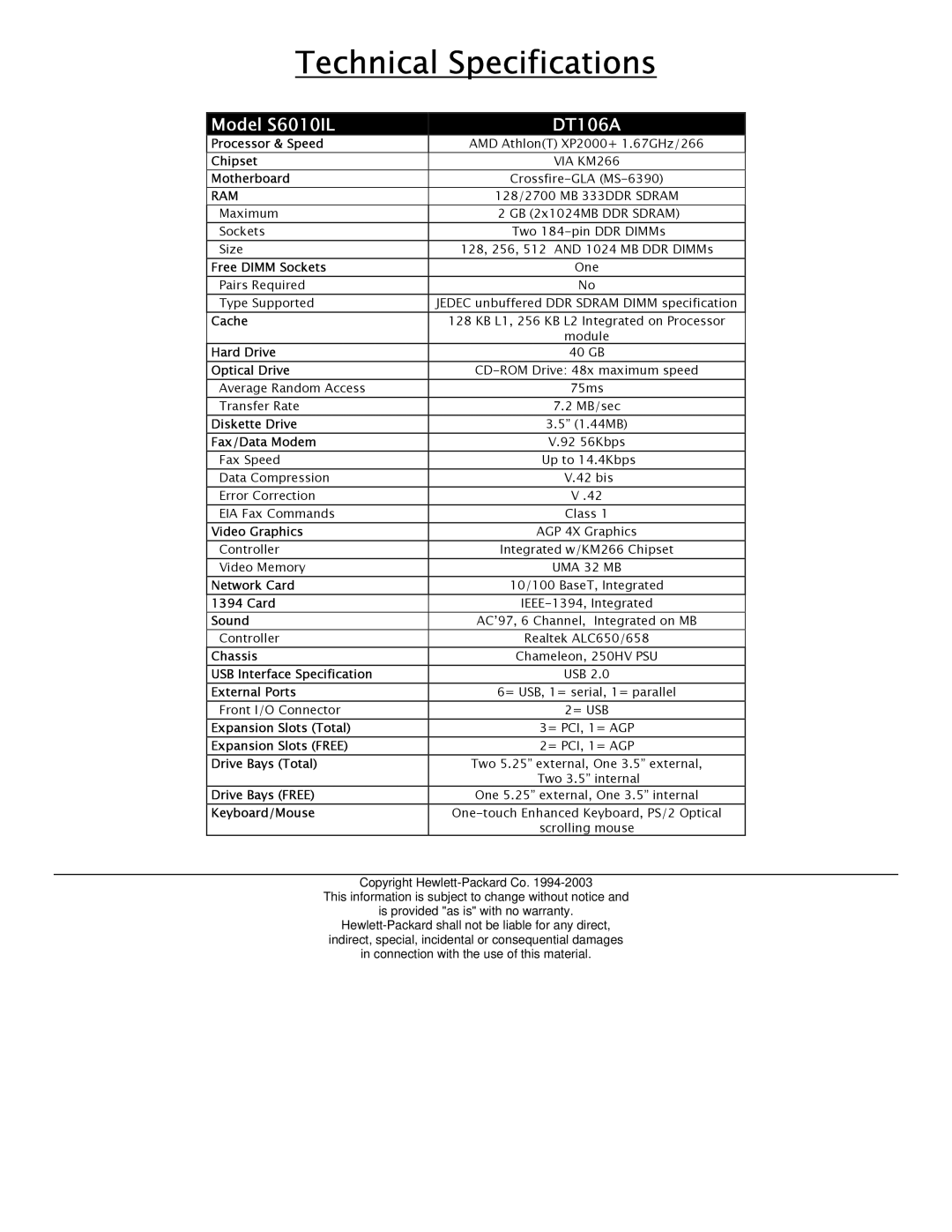

Technical Specifications
| Model S6010IL |
| DT106A |
|
| Processor & Speed |
| AMD Athlon(T) XP2000+ 1.67GHz/266 |
|
| Chipset |
| VIA KM266 |
|
| Motherboard |
| ||
| RAM | 128/2700 MB 333DDR SDRAM |
| |
| Maximum | 2 GB (2x1024MB DDR SDRAM) |
| |
| Sockets | Two |
| |
| Size | 128, 256, 512 AND 1024 MB DDR DIMMs |
| |
| Free DIMM Sockets | One |
| |
| Pairs Required | No |
| |
| Type Supported | JEDEC unbuffered DDR SDRAM DIMM specification |
| |
| Cache | 128 KB L1, 256 KB L2 Integrated on Processor |
| |
|
|
| module |
|
| Hard Drive | 40 GB |
| |
| Optical Drive |
| ||
| Average Random Access | 75ms |
| |
| Transfer Rate | 7.2 MB/sec |
| |
| Diskette Drive | 3.5” (1.44MB) |
| |
| Fax/Data Modem | V.92 56Kbps |
| |
| Fax Speed | Up to 14.4Kbps |
| |
| Data Compression | V.42 bis |
| |
| Error Correction | V .42 |
| |
| EIA Fax Commands | Class 1 |
| |
| Video Graphics | AGP 4X Graphics |
| |
| Controller | Integrated w/KM266 Chipset |
| |
| Video Memory | UMA 32 MB |
| |
| Network Card | 10/100 BaseT, Integrated |
| |
| 1394 Card |
| ||
| Sound | AC’97, 6 Channel, Integrated on MB |
| |
| Controller | Realtek ALC650/658 |
| |
| Chassis | Chameleon, 250HV PSU |
| |
| USB Interface Specification | USB 2.0 |
| |
| External Ports | 6= USB, 1= serial, 1= parallel |
| |
| Front I/O Connector | 2= USB |
| |
| Expansion Slots (Total) | 3= PCI, 1= AGP |
| |
| Expansion Slots (FREE) | 2= PCI, 1= AGP |
| |
| Drive Bays (Total) | Two 5.25” external, One 3.5” external, |
| |
|
|
| Two 3.5” internal |
|
| Drive Bays (FREE) | One 5.25” external, One 3.5” internal |
| |
| Keyboard/Mouse |
| ||
|
|
| scrolling mouse |
|
